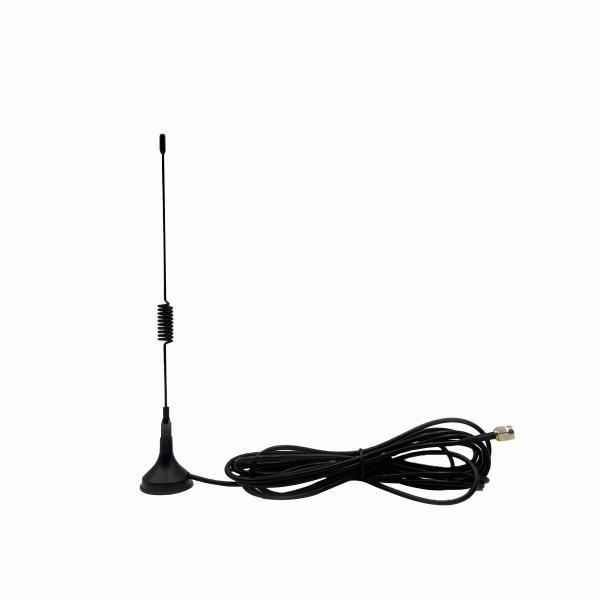

Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10701-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
824-960MHz; 1710-2170MHz
VSWR :
<2.0
Peak Gain :
-2.5dBi/-3.2dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 824-960MHz 1710-2170MHz
Impedance 50 Ohm 50 Ohm
S.W.R. <2.0 <2.0
Gain -2.5dBi -3.2dBi
Efficiency ≈12% ≈13%
Polarization Linear Linear
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 40-135° 32-80°
Max Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Cable Type RG174 Cable
Dimension Φ30*200mm
Weight 0.046Kg
Antenna material Carbon Steel
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm

2.2 Total Efficiency & Gain:

Frequency(MHz) 820.0 840.0 860.0 880.0 900.0 920.0 940.0 960.0
Gain (dBi) -7.84 -8.63 -7.86 -7.04 -4.63 -4.82 -3.62 -2.58
Efficiency (%) 4.73 3.53 3.95 5.89 12.73 12.71 19.26 25.99
Frequency(MHz) 1710.0 1730.0 1750.0 1770.0 1790.0 1810.0 1830.0 1850.0 1870.0 1890.0 1910.0 1930.0
Gain (dBi) -4.65 -4.88 -5.33 -5.39 -5.12 -4.96 -5.49 -5.15 -4.59 -3.87 -3.34 -3.20
Efficiency (%) 10.38 11.04 10.67 9.70 9.64 9.82 9.66 10.20 11.08 12.48 14.12 15.12
Frequency(MHz) 1950.0 1970.0 1990.0 2010.0 2030.0 2050.0 2070.0 2090.0 2110.0 2130.0 2150.0 2170.0
Gain (dBi) -3.56 -3.42 -4.13 -4.62 -4.82 -3.61 -4.17 -4.61 -4.78 -4.89 -6.34 -7.70
Efficiency (%) 15.31 15.68 16.38 15.61 15.88 15.48 13.86 12.34 11.56 10.92 8.09 7.72
Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
820MHz Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
880MHz Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
960MHz Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
3D 2D-Horizontal 2D-Vertical
1710MHz Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
1950MHz Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
2170MHz Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm Gps Antenna Magnetic Mount 3G RG174 Cable 30x200mm
