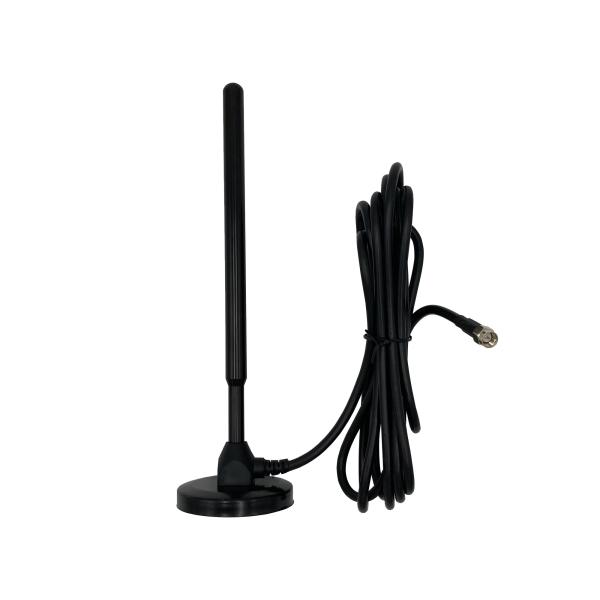

Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223
Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10664-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
433MHz
VSWR :
<2.0
Peak Gain :
2.0dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 433MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 2dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 55-60°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Cable Type RG58 Cable
Dimension Φ62*230mm
Weight 0.38Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223

2.2 Total Efficiency & Gain:

Frequency(MHz) 430.0 431.0 432.0 433.0 434.0 435.0 436.0
Gain (dBi) 1.82 1.79 1.74 1.68 1.69 1.67 1.58
Efficiency (%) 79.64 80.24 80.56 80.58 80.05 78.70 76.17
Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
430MHz Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223
433MHz Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223
436MHz Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223
