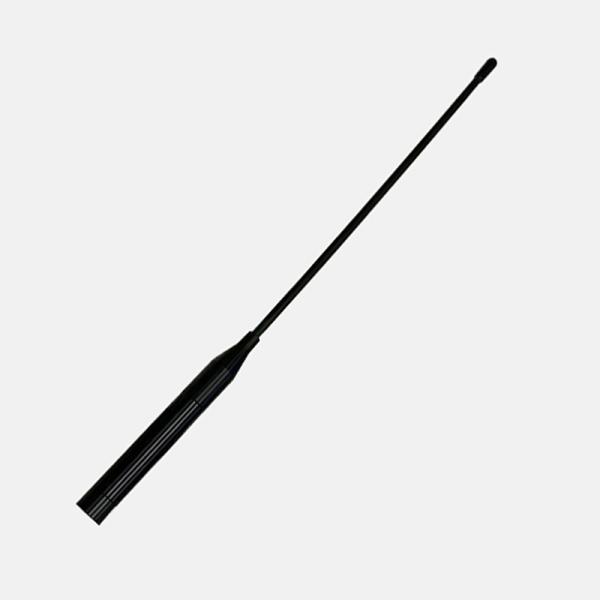

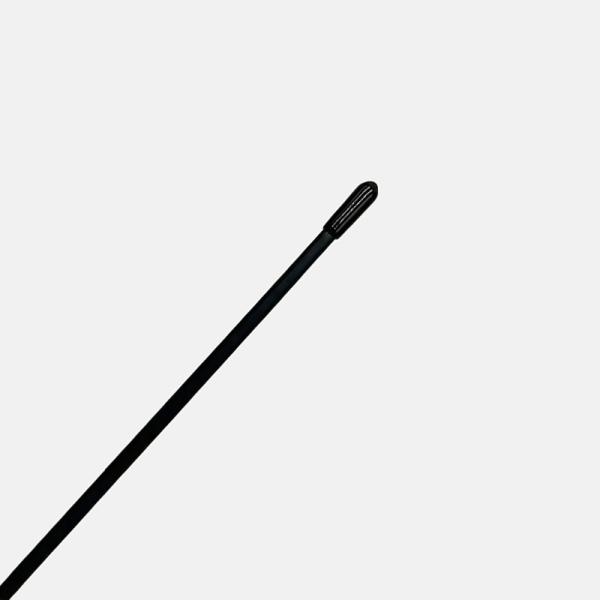

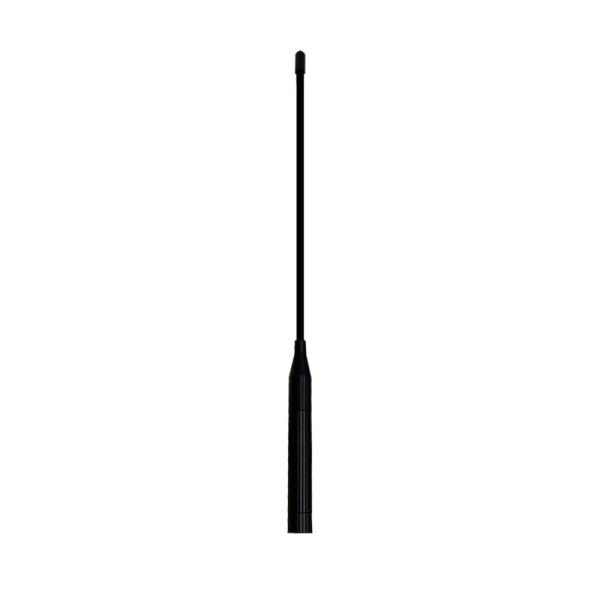

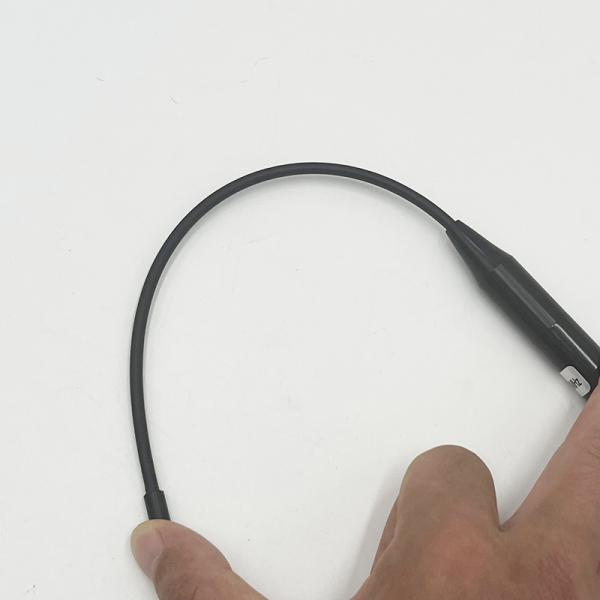

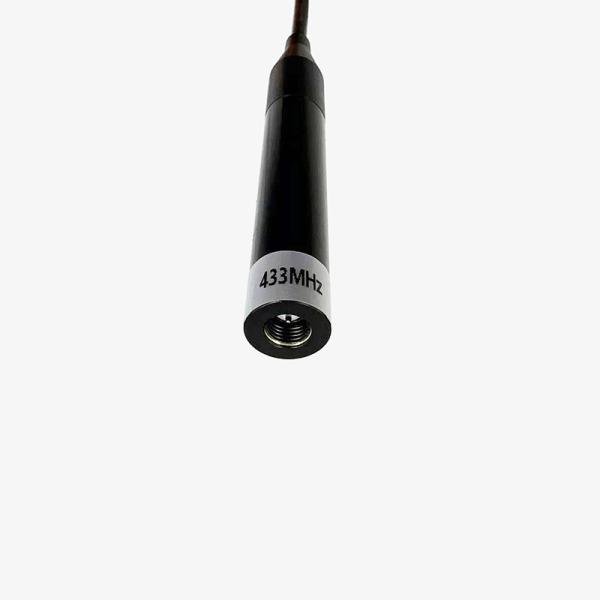

SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
SMA Male 433M Walkie-talkie Soft Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11862-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
433MHz
VSWR :
<2.0
Peak Gain :
1dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 433MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 55-60°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension Φ12*290mm
Weight 0.05Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

SMA Male 433M Walkie-talkie Soft Antenna

2.2 Total Efficiency & Gain:

Frequency (MHz) 428 429 430 431 432 433 434 435 436 437 438
Gain (dBi) 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.5
Efficiency (%) 50.7 50.7 50.9 51.1 51.6 52.1 52.6 52.9 53.2 53.2 53.0
SMA Male 433M Walkie-talkie Soft Antenna

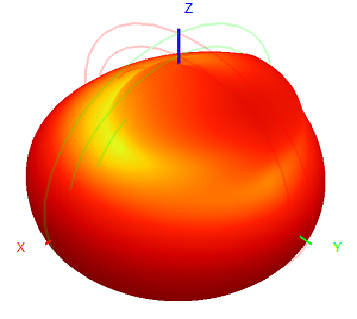

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
430MHz SMA Male 433M Walkie-talkie Soft Antenna SMA Male 433M Walkie-talkie Soft Antenna SMA Male 433M Walkie-talkie Soft Antenna
433MHz SMA Male 433M Walkie-talkie Soft Antenna SMA Male 433M Walkie-talkie Soft Antenna SMA Male 433M Walkie-talkie Soft Antenna
436MHz SMA Male 433M Walkie-talkie Soft Antenna SMA Male 433M Walkie-talkie Soft Antenna SMA Male 433M Walkie-talkie Soft Antenna
