Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.28 inches IPS LCD
Material :
TFT LCD
Resolution :
240(RGB) X 240
Touch type :
Capacitive touch
Communication interface :
8-bit parallel port
Working voltage :
3.3V
Driver chip :
GC9A01
Touch chip :
CST8165
Display color :
Full color
Panel size :
35.6 (H) X 38.1 (V) X 1.5 (D)
Display area :
32.4
Pixel pitch :
0.135 (H) X 0.135 (V)
Viewing angle :
Full viewing angle
Backlight :
2 CHIP White LED
Working current :
20mA
Pin count :
Plug-in (25Pin 0.3mm spacing FPC cable)
Working temperature :
-20~70℃
Description

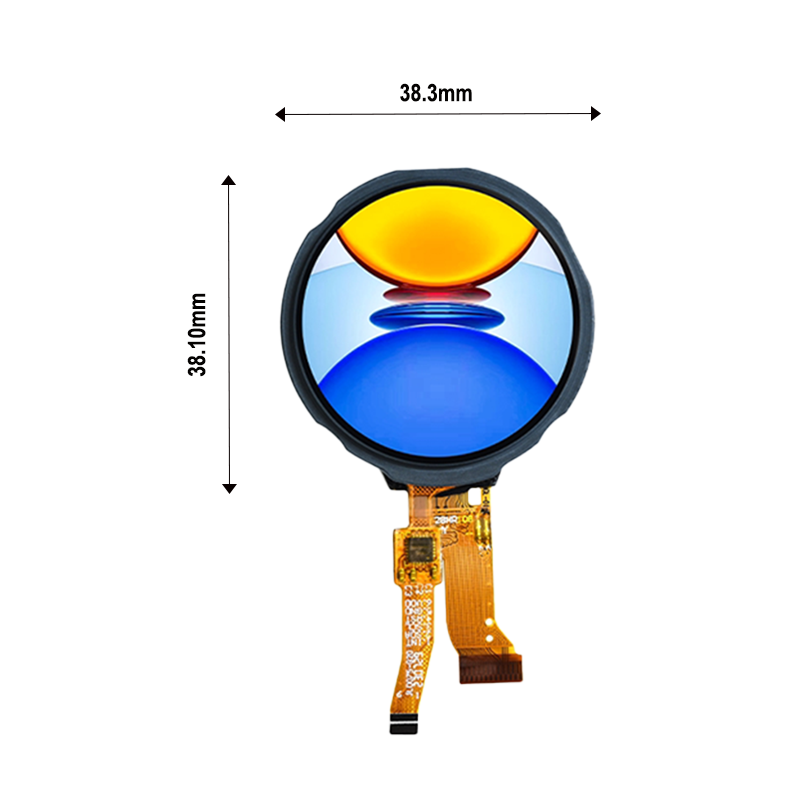

1.28-inch color screen size

1.28 inches, equipped with GC9A01, circular TFT high-definition capacitive touch screen, display module

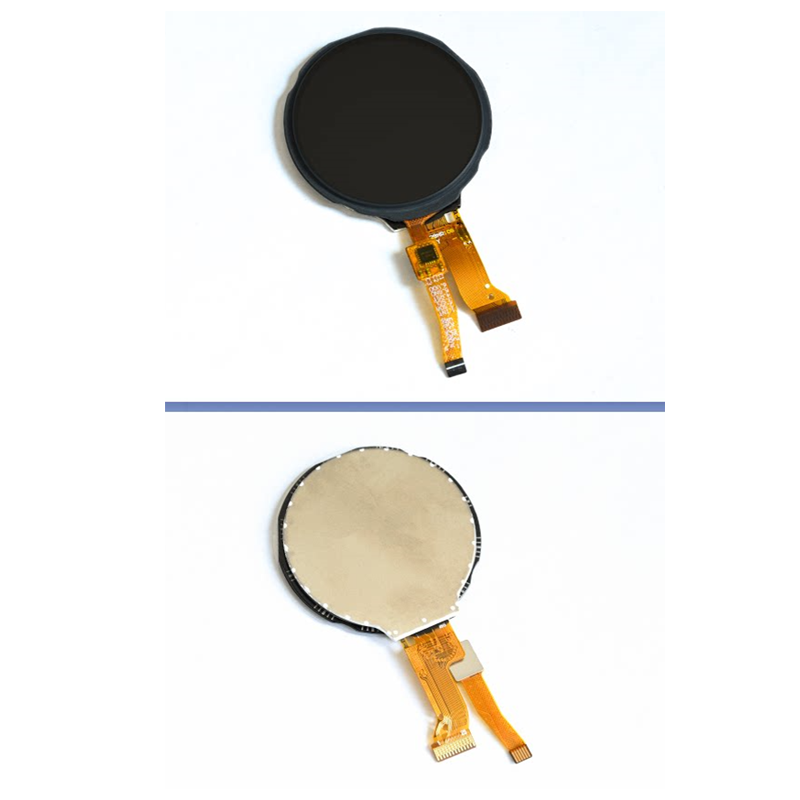

Product details presentation

1.28 inches, equipped with GC9A01, circular TFT high-definition capacitive touch screen, display module

Interface definition

Pin Symbol Pin Symbol
1 NC 14
2 NC 15
3 NC 16
4 NC 17
5 NC 18
6 BL-K 19
7 BL-A 20
8 GND 21
9 VDD 22
10 IOVCC 23
11 TE 24
12 /CS 25
13 /RESET

Touch interface definition

Pin Symbol
1 TP_INT
2 TP_SDA
3 TP_SCL
4 TP_RST
5 CND
6 TP_VDD

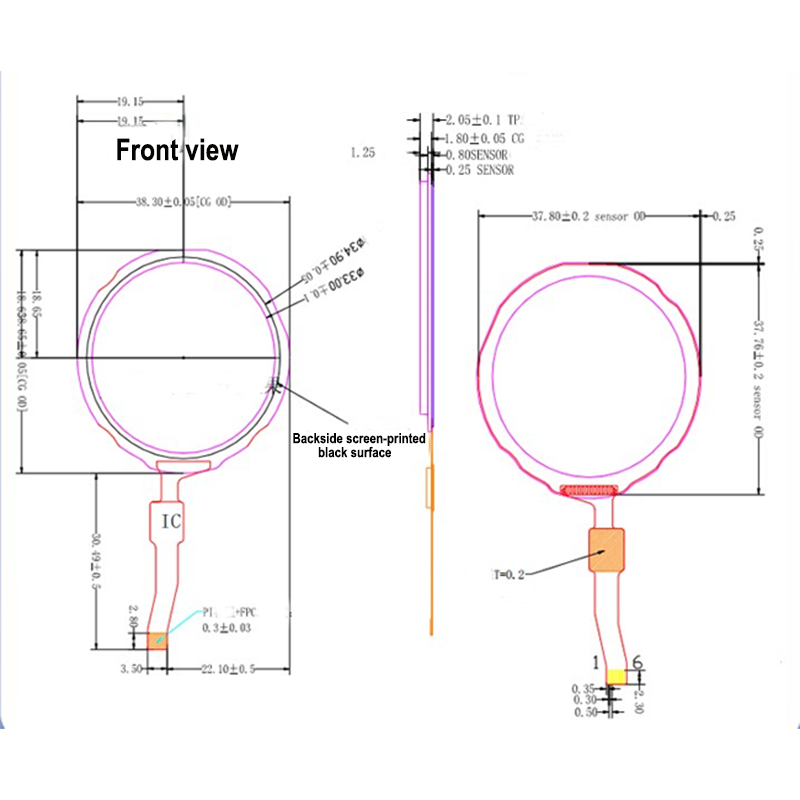

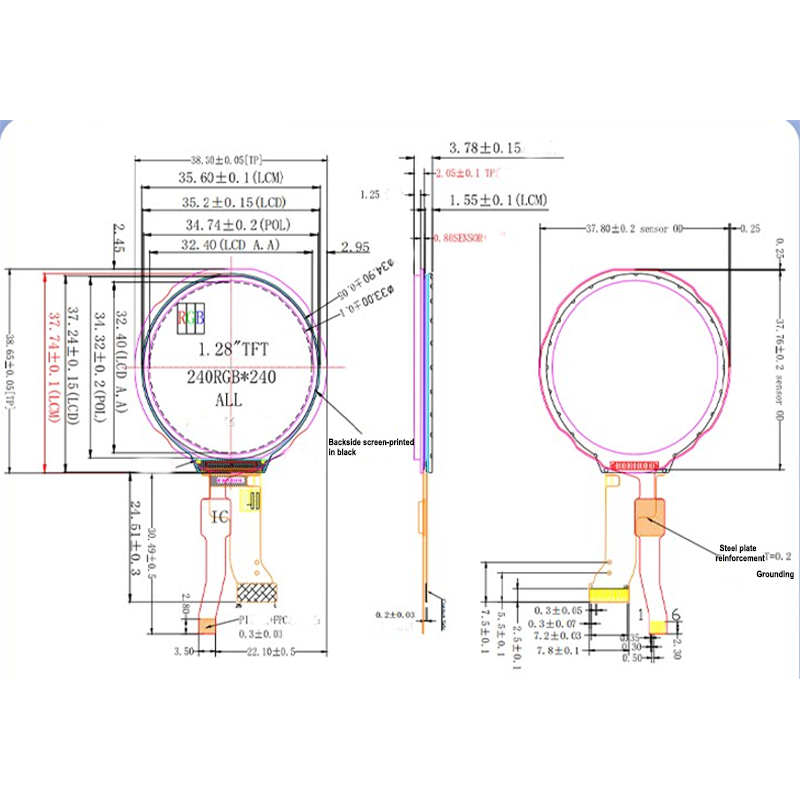

Structural drawing

1.28 inches, equipped with GC9A01, circular TFT high-definition capacitive touch screen, display module1.28 inches, equipped with GC9A01, circular TFT high-definition capacitive touch screen, display module
