Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.47-inch IPS color LCD
Resolution :
172 (H) RGB X 320(V)
Interface type :
SPI interface
Control chip :
ST7789V3
Highlights of this screen :
High-definition IPS, display direction can be adjusted
Display color :
Color
Display area :
17.3892(H) X 32.352(V)
Panel size :
19.39 (H) X 36.28(V) X 1.46(D)
Module size :
30.00(H) X 37.00(V) X 2.76(D)(excluding pin headers)
Pixel pitch :
0.0337(H) X 0.1011(V)
Pin count :
8 pins (2.54mm pitch)
Perspective direction :
Full perspective
Operating temperature :
-20 to 70 degrees
Logic voltage :
3.3V
Backlight type :
3White LED Parallel
Brightness :
350(TYP)Cd/m ²
Connection method :
2.54mm pitch single row of pins
Description

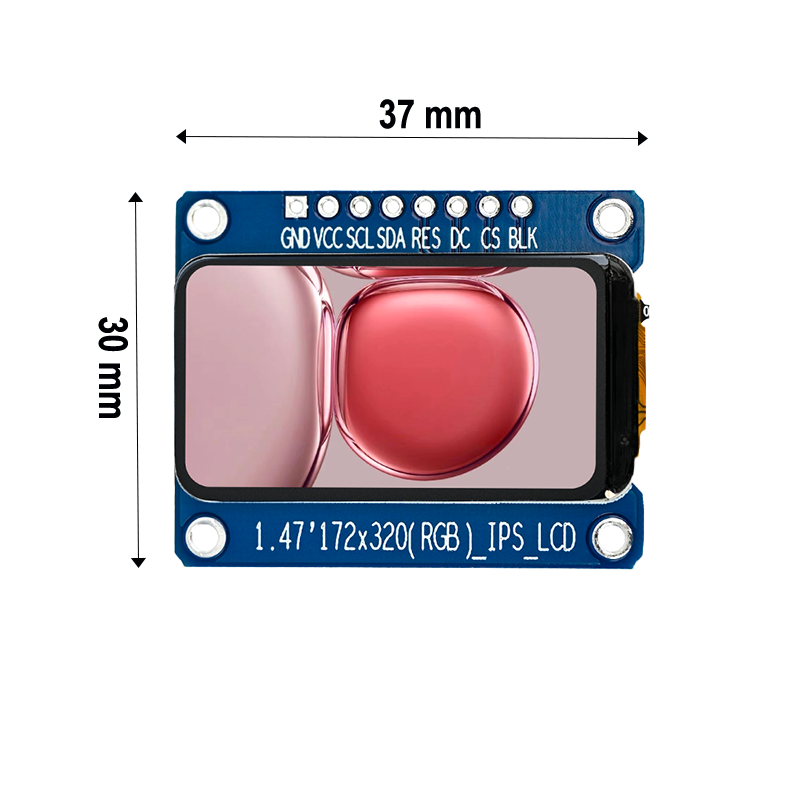

1.47-inch color IPS module size

1.47-inch lcd display, high-definition ips172x320, st7789 drive LCD screen, screen can be flipped,segment lcd display,segment lcd

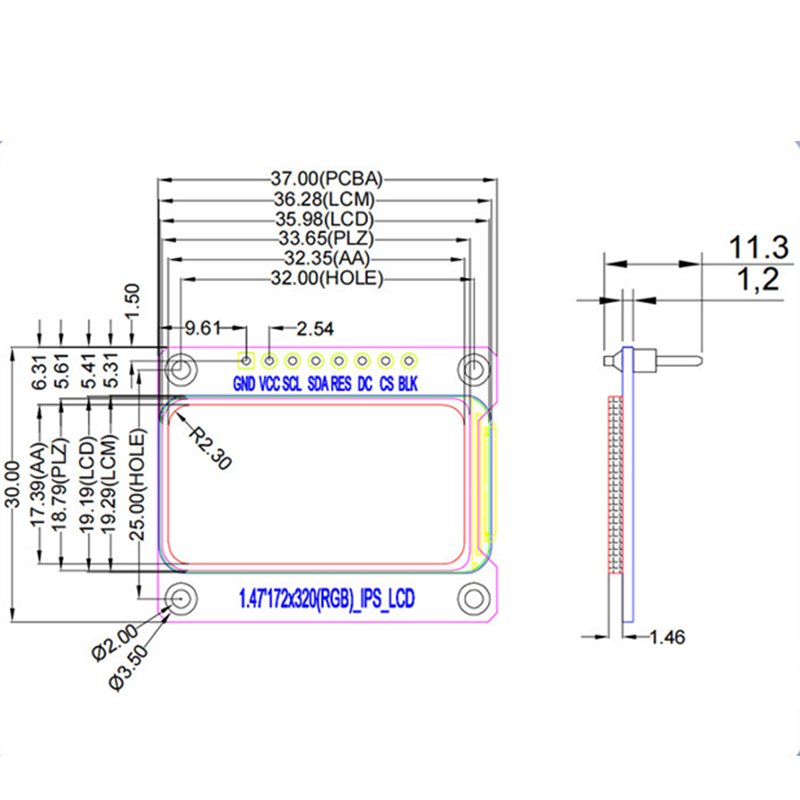

Structural drawing

1.47-inch lcd display, high-definition ips172x320, st7789 drive LCD screen, screen can be flipped,segment lcd display,segment lcd

Module interface definition

Serial number Symbol Function description
1 GND Power supply ground
2 VCC Positive 3.3V
3 SCL SPI Clock line
4 SDA SPI Data cable
5 RES LCD Reset
6 DC LCD Data/Command selection pin
7 CS LCD Display screen chip selection signal, low level is effective
8 BLK Backlight control switch, with backlight on by default and off at low levels
