Specifications
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity
Size :
2.0 inches
Material :
TFT LCD
Resolution :
240 (RGB) x 320. The display orientation can be adjusted; it can be either landscape or portrait mode
Control chip :
ST7789V2
Display area :
30.6 (width) x 40.8 (height)
Overall dimensions :
36 (width) x 63.2 (height) x 3.5 (thickness)
Pixel pitch :
0.1275X0.1275 (mm)
Interface type :
4-SPI interface
Backlight type :
LEDX 4
Voltage :
3.3V
Brightness :
400 (TYP)
Working temperature :
-20 to 70 degrees
Viewpoint direction :
Full perspective
Pin count :
8 pins (single row pins with a spacing of 2.54mm)
Description

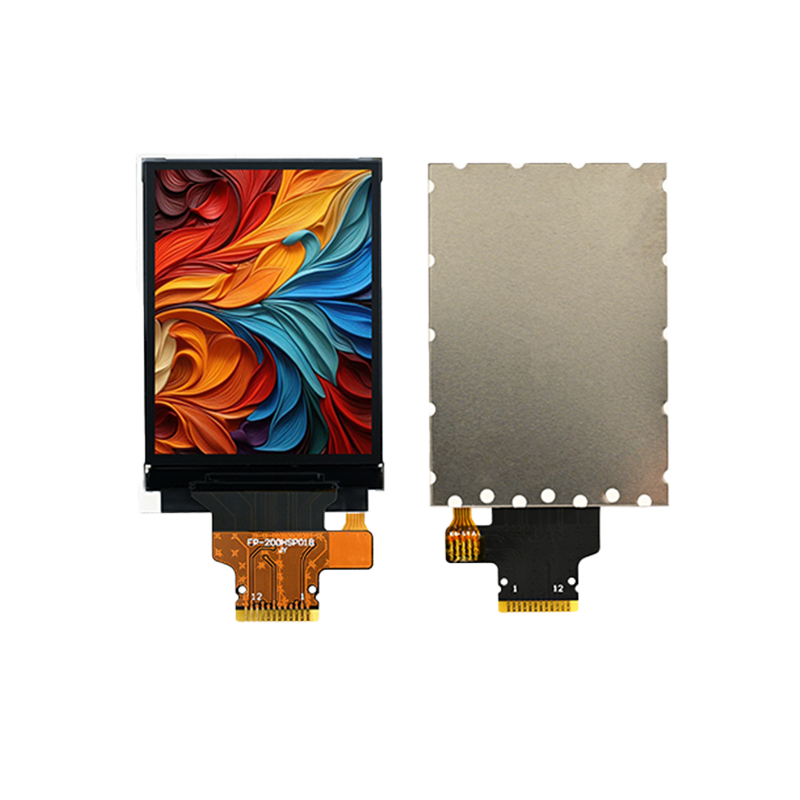

2.0-inch TFT module size

2.0-inch ST7789 driver for serial port screen with 240x320 TFT LCD display panel,segment lcd display,segment lcd

2.0-inch TFT module interface definition

Pin number Pin name Function Description
1 GND Power ground terminal
2 VCC Main power supply terminal for the display screen
3 SCL Four-line SPI serial clock pin
4 SDA Four-line SPI serial port data input pin
5 RES Display screen reset
6 DC LCD data/command selection
7 CS LCD chip select signal, with low level being the effective state
8 BLK Backlight control switch: By default, the backlight is turned on; a low level will turn off the backlight

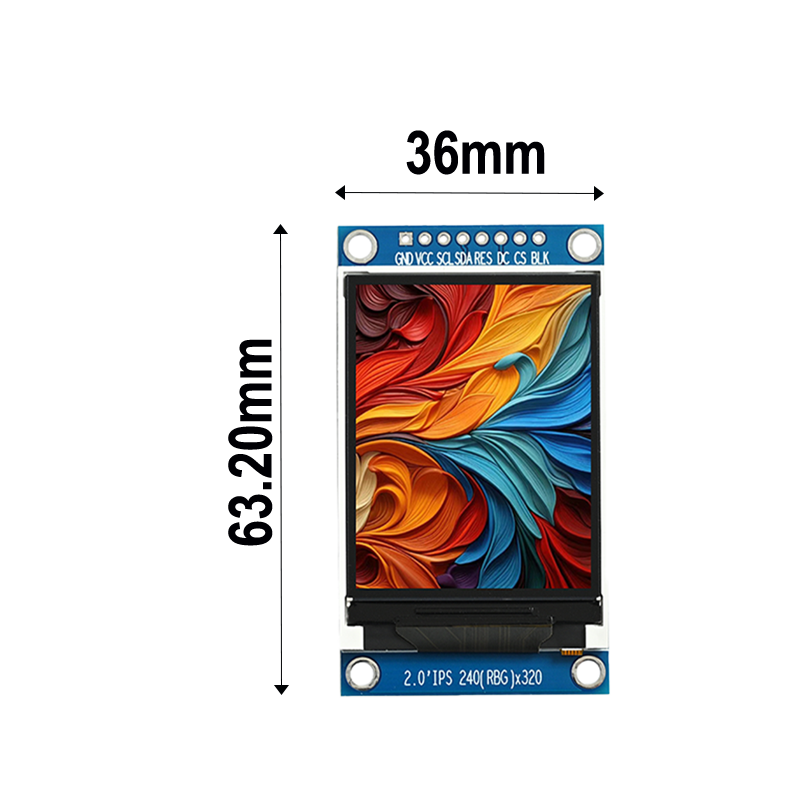

The corresponding screen of the 2.0-inch TFT module

2.0-inch ST7789 driver for serial port screen with 240x320 TFT LCD display panel,segment lcd display,segment lcd

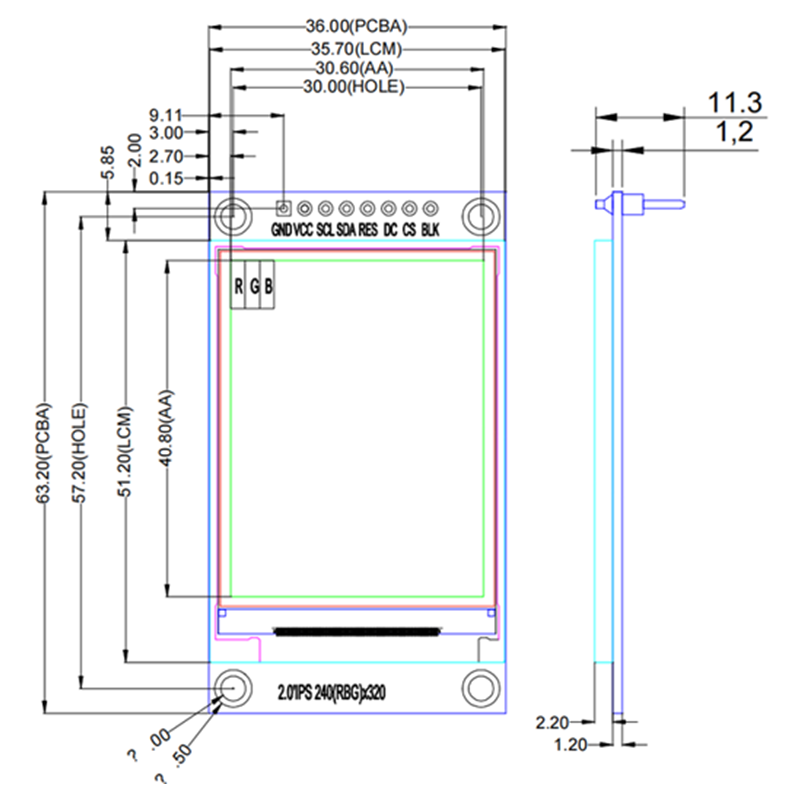

The structural drawing of the 2.0-inch TFT module

2.0-inch ST7789 driver for serial port screen with 240x320 TFT LCD display panel,segment lcd display,segment lcd

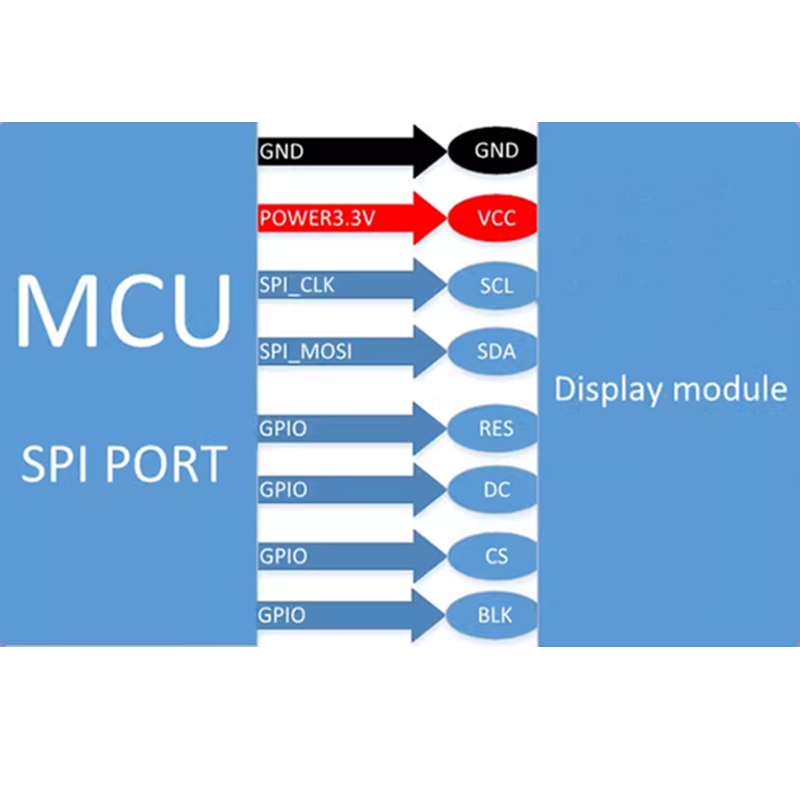

Wiring diagram of the 2.0-inch TFT module

2.0-inch ST7789 driver for serial port screen with 240x320 TFT LCD display panel,segment lcd display,segment lcd
