Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.3-inch high-definition IPS LCD
Resolution :
240 X 240
Interface type :
4-SPI
Control chip :
ST7789V
Font library chip :
GT30L32S4W
Display color :
Full color
Display area :
23.4 X 23.4 (mm)
Panel size :
39.22 X 27.28 X 2.7 (mm)
Pixel pitch :
0.0975 X 0.0975 (mm)
Working current :
20 (mA)
Operating voltage :
3.3V
Pin count :
10-pin (2.54mm pitch double-row pins, default not soldered)
Viewpoint direction :
Full perspective
Backlight type :
2 White LED Parallel
Working temperature :
-20 to 70 degrees Celsius
Description

Display screen size

1.3-inch IPS 240X240 TFT high-definition LCD display with character library ,segment lcd display,segment lcd

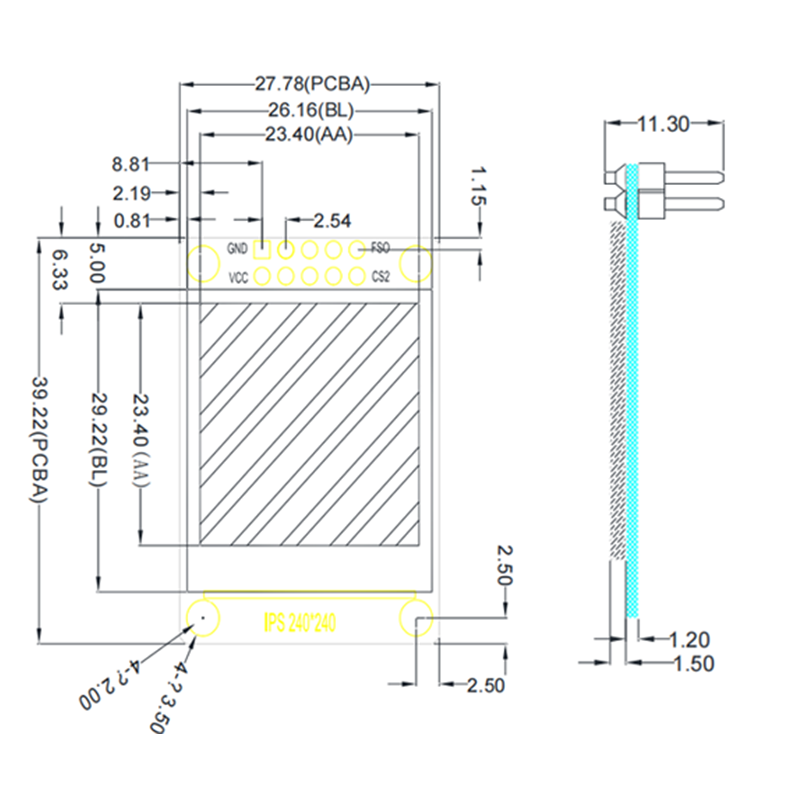

Display screen structure drawing

1.3-inch IPS 240X240 TFT high-definition LCD display with character library ,segment lcd display,segment lcd

Module interface definition

Number Symbol Explanation
1 GND Power ground terminal
2 VCC Power supply: 3.3V
3 SCL SPI clock line
4 SDA SPI data line
5 RES LCD reset
6 DC LCD data/command selection pin
7 CS1 LCD chip select, low level valid, must not be floating
8 BLK Backlight control switch, default backlight is on, low level turns off backlight
9 FSO Character font data output
10 CS2 Character font chip chip select

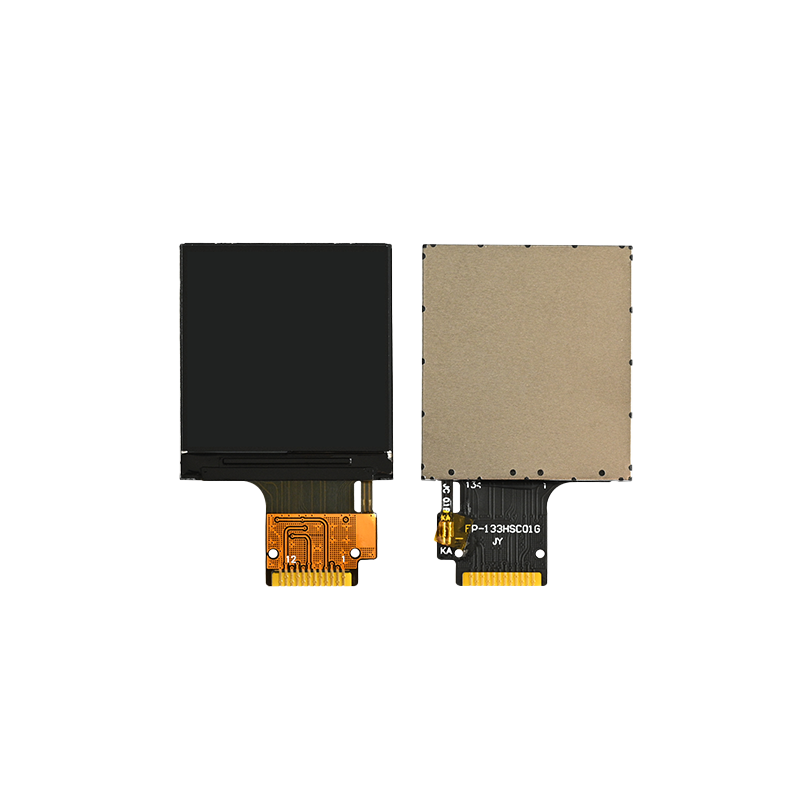

The corresponding bare screen

1.3-inch IPS 240X240 TFT high-definition LCD display with character library ,segment lcd display,segment lcd
