Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.28-inch IPS LCD
Material :
TFT LCD
Resolution :
240 (RGB) x 240
Communication Interface :
4-SPI
Operating Voltage :
3.3V
Driver Chip :
GC9A01
Display Colors :
Full Color
Module Dimensions :
44 (H) x 36 (V) x 2.8 (D) mm
Display Area :
32.4
Pixel Pitch :
0.135 (H) x 0.135 (V)
Viewing Angle :
Full Viewing Angle
Backlight :
2CHIP White LED
Operating Current :
20mA
Pin Count :
Soldered Type (8-Pin 2.54mm Pitch FPC Cable)
Operating Temperature :
-20~70℃
Description

Product Dimensions

1.28-inch HD IPS LCD Display Round Screen GC9A01 Driver SPI Interface Color TFT,segment lcd display,segment lcd

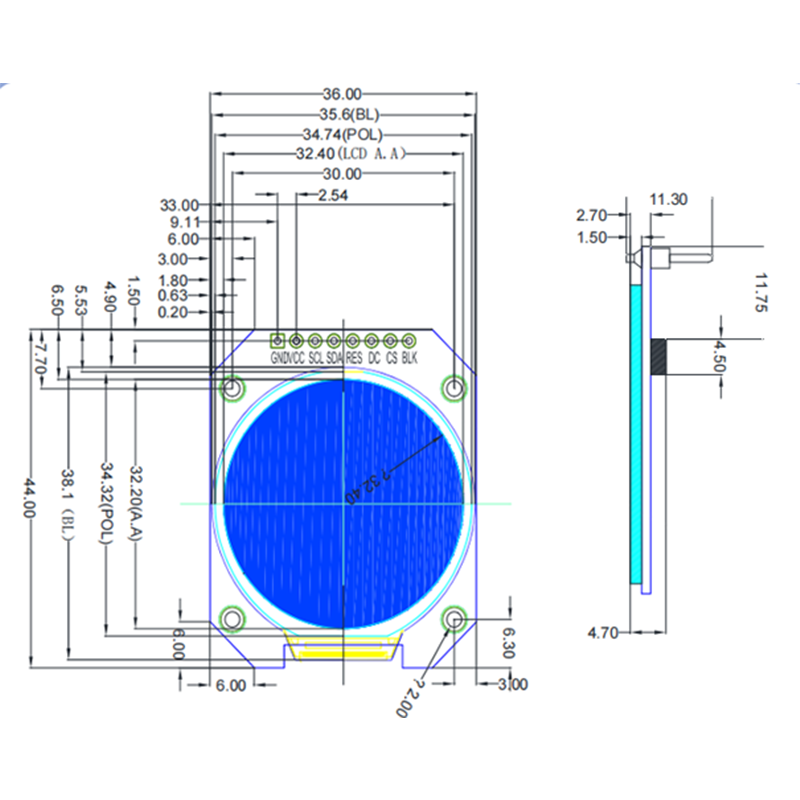

Structural drawings

1.28-inch HD IPS LCD Display Round Screen GC9A01 Driver SPI Interface Color TFT,segment lcd display,segment lcd
