Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
0.96 inches
Material :
High-definition IPS LCD
Resolution :
80 (H) RGB X 160 (V)
Driver chip :
ST77355
Communication interface :
4 Line SPI
Display color :
Full color
Display area :
10.8 (H) X 27.95 (V) mm
Panel size :
13.5 (H) X 27.95 (V) X 1.5Max (D) mm
Pixel pitch :
0.135 (H) X 0.1356 (V) mm
Connection method :
Plug-in type 8Pin (0.5mm spacing upper connector FPC cable, two lengths available)
Viewing angle direction :
All View
Operating voltage :
3.3V
Operating current :
20mA
Backlight type :
1 LED
Operating temperature :
-20~70℃
Description

0.96-inch color IPS screen size

0.96 inches, driven by ST7735S, with a TFT display screen of 80X160 resolution and IPS technology

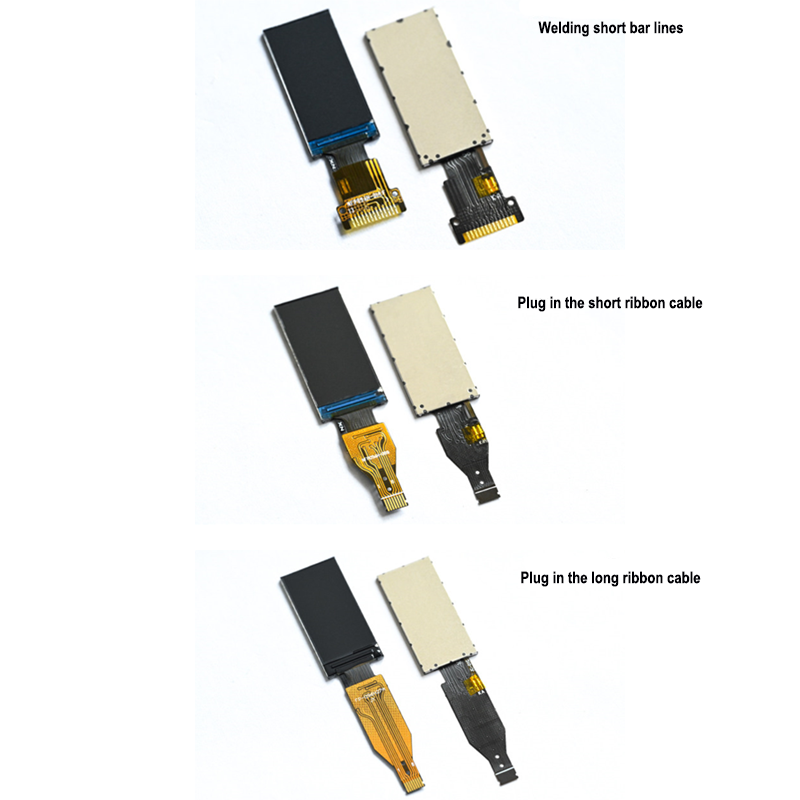

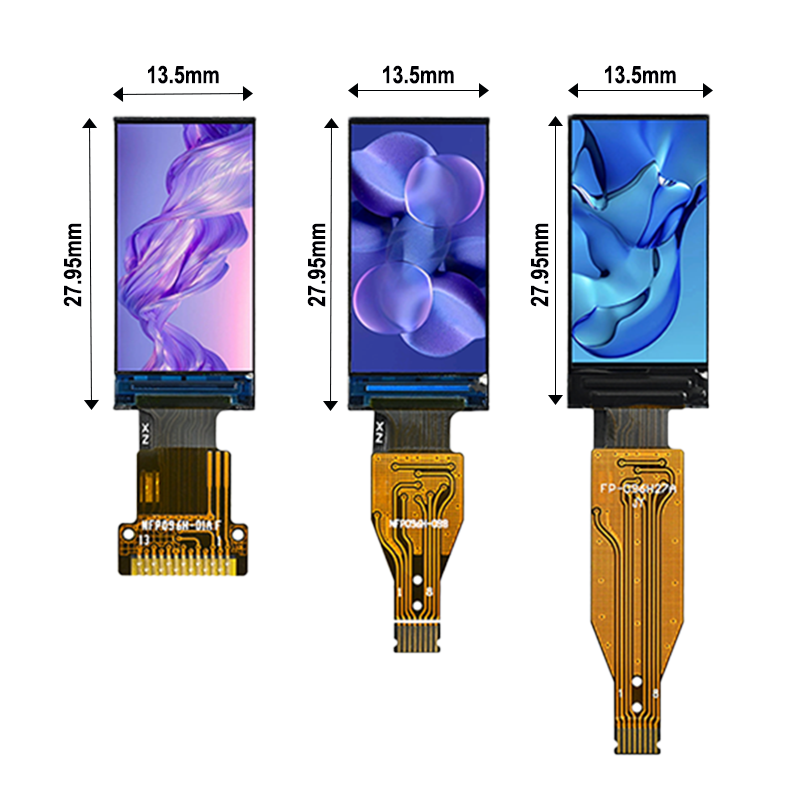

Product details presentation:

0.96 inches, driven by ST7735S, with a TFT display screen of 80X160 resolution and IPS technology

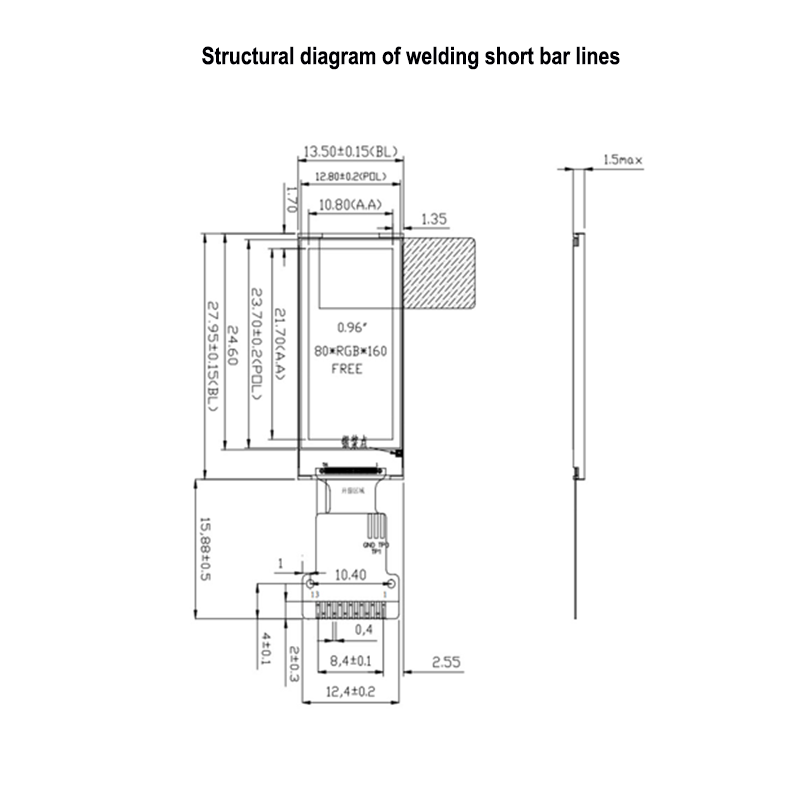

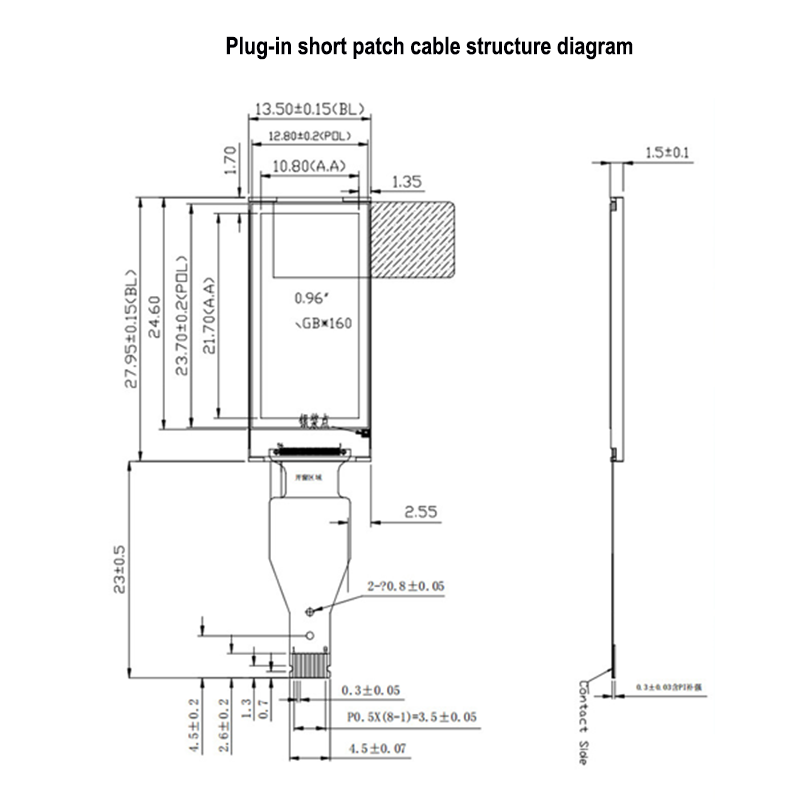

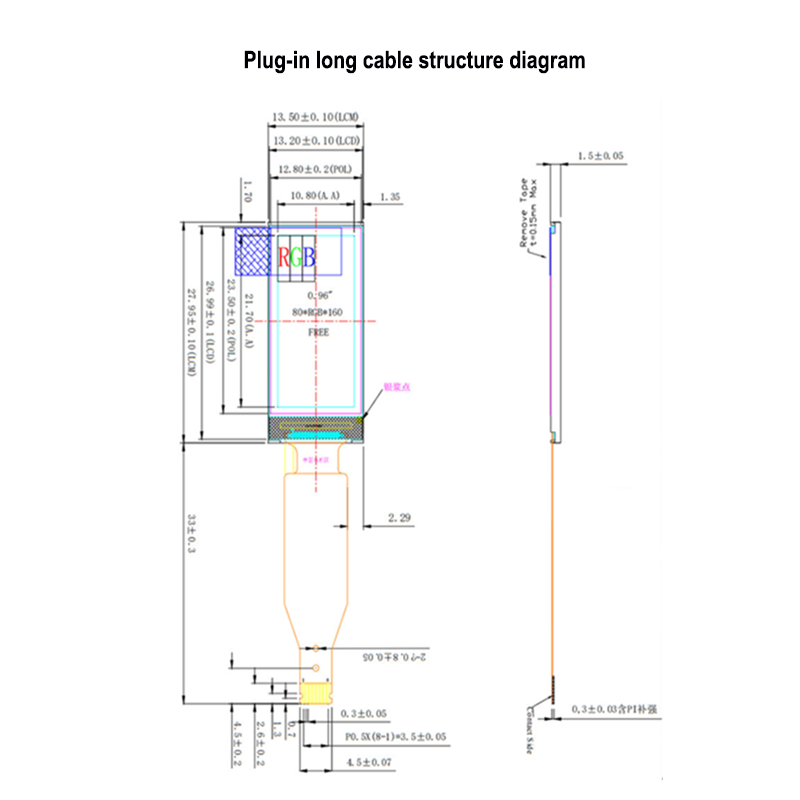

The structural drawing of a 0.96-inch color IPS screen

0.96 inches, driven by ST7735S, with a TFT display screen of 80X160 resolution and IPS technology0.96 inches, driven by ST7735S, with a TFT display screen of 80X160 resolution and IPS technology0.96 inches, driven by ST7735S, with a TFT display screen of 80X160 resolution and IPS technology
