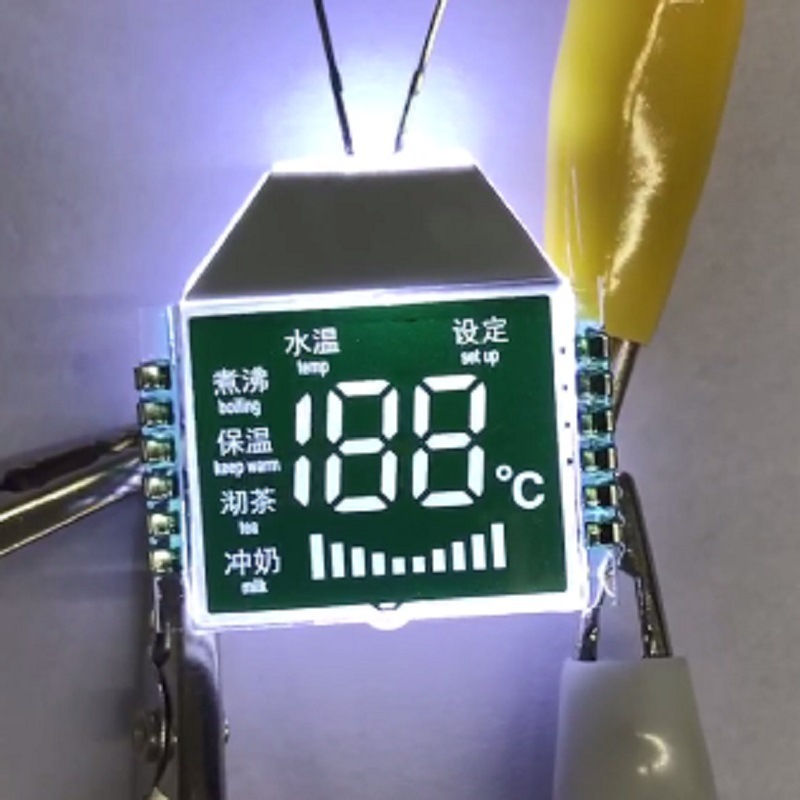

Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Custom Negative Transmissive Segmented LCD Display – RoHS & REACH Compliant,segment lcd display,segment lcd
Specifications
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Product Model :
YH-SD2221AW2
Operating Temperature :
Super Wide Temp (-30°C to 80°C)
Place of Origin :
China
Viewing Direction :
6 o'clock (Bottom view)
Connection Type :
Metal Pins / Wire Harness (Electronic Wire)
MOQ :
First purchase, no purchase quantity limit.

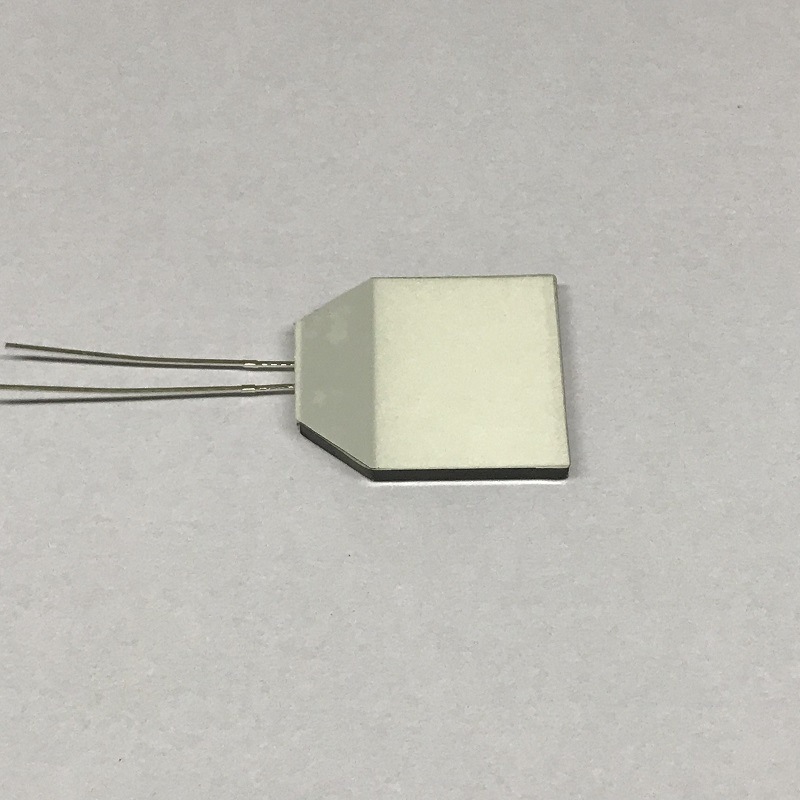

Backlight :
0603 White LED
Price :
Starting at $0.10; we offer the best prices based on the specific quantity.
Bias Ratio :
1/3 Bias
Delivery Time :
4~6 Working Days
Display Mode :
Positive
Thickness :
2.8mm
Supply Ability :
Design based on the product
Polarizer Mode :
Transmissive
Packaging Details :
Prices are set based on design and quantity.
Product Type :
TN (Twisted Nematic)
Brand Name :
ORIENTRONIC
Driving Voltage :
5.0V
Size (Outline) :
21.5mm × 25.5mm × 18mm (or specify L×W×T if 18 is thickness)
Duty Cycle :
1/4 Duty
Description

To provide an accurate quotation and design, please specify the following details:

1. Dimensions

  • Large LCD panel: length and width (mm)

  • Small LCD panel: length and width (mm) (if applicable)

2. Display Mode

  • Positive display – e.g. white background with black characters, yellow‑green background with black characters, or grey background with blue characters.

  • Negative display – e.g. blue background with white characters, or black background with white characters.

3. Polarizer Type

  • Transmissive – requires a backlight to be visible.

  • Transflective – can be used with or without a backlight (backlight optional).

  • Reflective – no backlight; relies on ambient light.

4. Operating Voltage
Typically between 3V and 5V (custom voltages available upon request).

5. Operating Temperature
Choose from the following ranges:

  • 0°C ~ +50°C (standard)

  • -10°C ~ +60°C

  • -20°C ~ +70°C (wide temperature)

  • -30°C ~ +80°C (ultra‑wide temperature)

6. Viewing Direction
Specify the preferred viewing angle (clock‑face notation):

  • 6 o'clock – viewed from below

  • 12 o'clock – viewed from above

  • 3 o'clock – viewed from the right

  • 9 o'clock – viewed from the left

7. Connection Method
Select one of the following:

  • Heat‑seal connector (heat‑seal pin)

  • Zebra connector (elastomeric / conductive rubber strip)

  • Metal pins (pin header)

8. Driving Method
Please provide the duty cycle and bias ratio, e.g. 1/4 duty, 1/3 bias.
(These parameters are determined by the customer’s driver IC and specific requirements.)
