4.6-Inch Bar-Type TFT LCD | 320×960 Resolution | Touch Screen | SPI+RGB/MIPI Interface

Product Overview

The JINGTAI JT-4.6IPSLS is a 4.6-inch bar-type TFT LCD module featuring an 320×960 pixel resolution and full-color display capability. Designed with a SPI+RGB OR MIPI interface and compatible with ST7701SN controllers, this module supports optional capacitive touch technology. Ideal for embedded systems and industrial applications, it delivers high-quality color imaging for demanding display environments.

Technical Specifications

Display Size: 4.6-inch TFT

Resolution: 320 × 960 pixels

Viewing Direction: 12 o'clock Full angle of view

Outline Dimensions: 41.57 × 118.8 × 2.5 mm

Active Area: 36.77 × 110.3 mm

Display Format: Bar-type

Interface: SPI+RGB/MIPI

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Touch Panel: Customizable resistive (RTP) or capacitive (CTP) options

Brightness: 300 cd/m², 600 cd/m²

Key Features

High-Resolution Bar Display: 320×960 pixel array optimized for extended information display

Touchscreen Flexibility: Supports both resistive and capacitive touch technologies

Industrial Durability: Operating temperature range of -20°C to +70°C

Optimized Dimensions: Compact outline with generous active display area

Interface Compatibility: Standard connection for straightforward integration

Product Advantages

1. Specialized Aspect Ratio: Bar-type design provides superior information layout efficiency compared to standard 4:3 or 16:9 formats

2. Comprehensive Size Range: Available in 3.9-inch, 4.6-inch, and 5.2-inch configurations to meet various application requirements

3. Customization Options:

3.1Frame variants with mounting screw holes

3.2Choice of capacitive or resistive touch panels

3.3High-brightness versions available

4. Superior Optical Performance: Excellent color reproduction, luminance consistency, and viewing characteristics

5. Industrial-Grade Reliability: Wide operating temperature range suitable for demanding environments

6. Competitive Value: High-quality solution with cost-effective pricing within the LCD industry

Applications

Industrial control and monitoring systems

Automotive display interfaces

Server status panels and POS terminals

Digital information displays and advertising systems

Security equipment and handheld devices

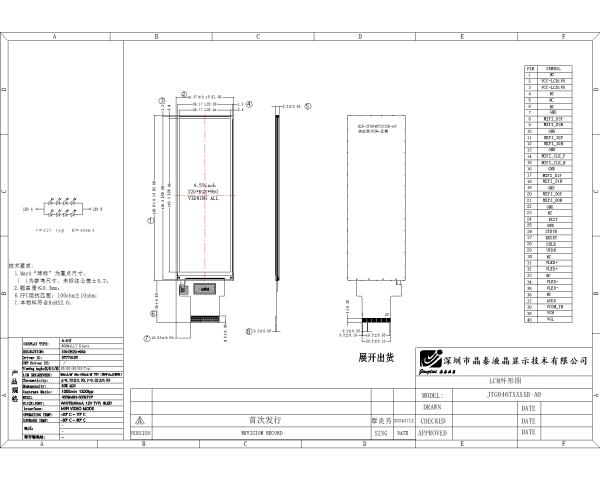

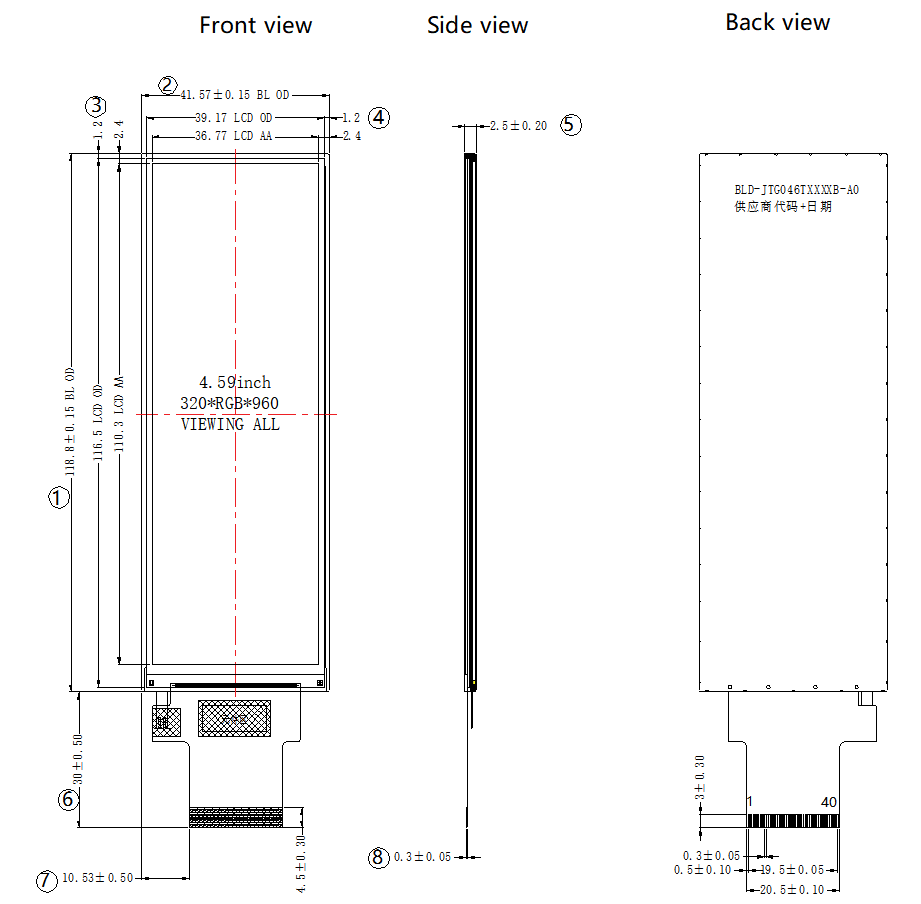

Bar Type 4.6" 320x960 TFT Display Drawing

Customer Service Commitment

1. Pre-Sales Consultation: Professional solution analysis and optimization based on project requirements

2. Responsive Quotation: All inquiries receive response within 24 hours

3. Production Transparency: Regular updates on manufacturing progress with optional quality verification

4. Comprehensive Warranty: One-year product warranty with defect replacement coverage

5. Technical Training: Optional pre-delivery technician training at our facility

6. Ongoing Support: Flexible technical and commercial support including remote meetings, online assistance, and on-site service

This bar-type TFT LCD module combines specialized formatting, robust performance, and comprehensive support services to meet diverse industrial display requirements.
