6.1-Inch Bar-Type TFT LCD | SPI+RGB/MIPI Interface | Smart-home System & Advertising Display Solution

Product Overview

Jingtai Liquid Crystal Display Technology presents its stretch bar-type TFT LCD series, specifically engineered for applications requiring non-standard aspect ratios. The JT-6.1IPSLS is a 6.1-inch bar-type TFT LCD module delivering 280×1424 pixel resolution. With ST7703 controller, this display is ideal for advertising applications demanding reliable performance and vibrant visual output.

Bar-Type Display Advantages

Optimized Aspect Ratio: Superior information display capability 1:5 compared to conventional 4:3 or 16:9 formats

Versatile Application Range: Ideal for industrial equipment, smart home systems, POS terminals, and dynamic information displays

Comprehensive Size Selection: Available in 3.9-inch, 4.6-inch, 5.8-inch, and 6.9-inch configurations

Customization Options

Frame variants with mounting screw holes

Capacitive or resistive touch panel integration

High-brightness versions for specialized environments

Technical Specifications

Display Size: 6.1-inch diagonal

Resolution: 280 × 1424 pixels

Outline Dimensions: 36.39 × 163.86 × 4.32 mm

Active Area: 29.99 × 152.51 mm

Brightness: 380 cd/m²

Operating Temperature: -30°C to +80°C

Touch Options: Resistive or capacitive touchscreen customizable

Applications

Digital advertising and information displays

Industrial control equipment

Embedded systems and security devices

POS and server status monitoring

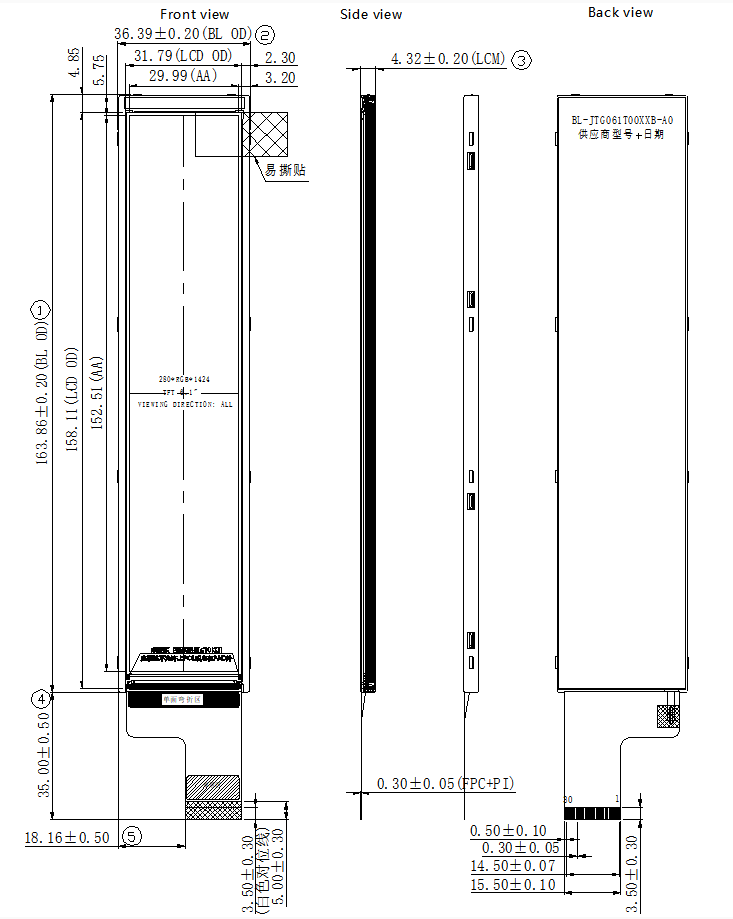

Bar Type 6.1" 280x1424 TFT Display Drawing

Frequently Asked Questions

Q1: Can I place a sample order?

A: Yes, we welcome sample orders for quality verification. Mixed samples of different product codes are acceptable.

Q2: What is your production lead time?

A: Standard products: samples available immediately; custom samples require 1-1.5 weeks; mass production takes 4-6 weeks. Custom designs: proposal within 2-3 days; samples in 2-3 weeks after drawing approval; mass production in 5-6 weeks after sample confirmation.

Q3: What is your minimum order quantity?

A: Samples: 3-5 pieces; mass production: standard MOQ of 1,000 units per lot, with flexibility for trial/pre-production runs.

Q4: What are your shipping options and delivery times?

A: We ship via DHL, UPS, FedEx, or TNT (5-7 days delivery). Air and sea freight options are also available.

Q5: What is the ordering process?

A: 1. Share your requirements → 2. Receive our quotation → 3. Confirm samples and place deposit → 4. Production arrangement.

Q6: Can you print my logo on the product?

A: Yes. Please notify us during the design phase, and we will incorporate your logo into samples for approval.

Q7: Do you provide a product warranty?

A: Yes, all products come with a 1-year warranty.

Q8: How are faulty products handled?

A: Our quality control maintains a defect rate below 0.2%. During warranty, we replace small quantities with new units. For batch issues, we offer repair, replacement, or recall solutions.

This 6.1-inch bar-type TFT LCD combines specialized formatting, industrial durability, and comprehensive customization options to meet diverse display requirements across multiple sectors.
