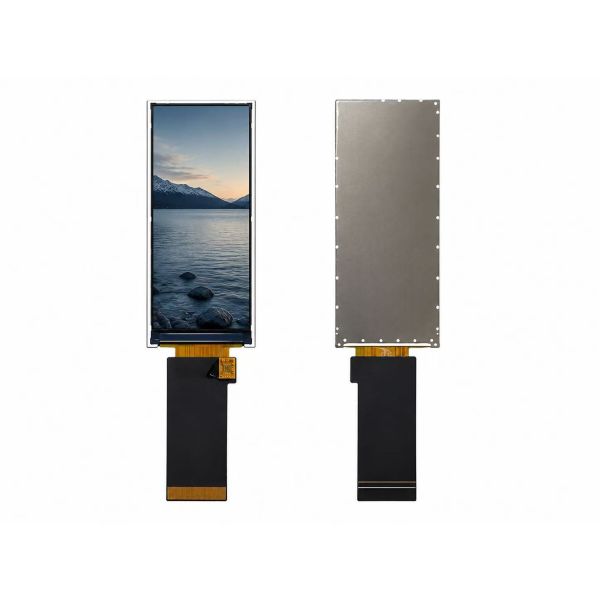

2.46 Inch IPS Bar Type TFT Display 272×400 LCD Module For Smart Control Devices
2.46 Inch IPS Bar Type TFT Display 272×400 LCD Module For Smart Control Devices
Specifications
Viewing Angle :
85/85/85/85
Interface Definition :
MCU/QSPI/RGB/MIPI
Price :
1-20
Certification :
ISO9001 / ISO14000
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Resolution :
272*400
Supply Ability :
2000K Pcs Per Month
Packaging Details :
Standard Exportation Package
Luminance :
350 cd/m²(Typ)
Touch Screen :
CTP
Brand Name :
Jingtai
CTP Structure :
GF/GFF
CTP Interface :
12c
Place of Origin :
Shenzhen/China
Key Words :
2.46 Inch Long String IPS
Model Number :
JT-2.46IPSLS
MOQ :
5pcs
Description

2.46 Inch IPS Bar Type TFT Display 272×400 LCD Module For Smart Control Devices

Overview

This 2.46 inch bar type TFT LCD display module features a 272×400 resolution and a compact vertical screen structure, suitable for smart home devices, portable electronics, control panels, and small embedded display projects. The slim bar-type design helps save internal installation space while still providing enough display area for status information, menus, icons, and simple UI layouts.


The module uses an IPS panel with Normally Black display mode, offering stable viewing performance and consistent image visibility from different angles. With a 9:16 aspect ratio, the display is suitable for vertical interface designs commonly used in smart control products and compact electronic devices.


Display Performance

  • 272×400 resolution for clear text and graphic display
  • IPS technology with wide viewing angles
  • Normally Black display mode
  • 350 cd/m² typical brightness for indoor use
  • 47% NTSC typical color performance
  • Compact structure with 2.04 mm module thickness


Integration & Application

The display supports MCU, QSPI, RGB, and MIPI interfaces, allowing easier integration into different hardware platforms and embedded systems. Its compact outline size of 33.89 × 60.32 mm makes it suitable for products with limited internal space.


This module can be used in smart home controllers, portable monitoring devices, small appliances, handheld terminals, information displays, and other compact electronic equipment requiring a narrow vertical screen. The operating temperature range of -20℃ to +70℃ also supports stable operation in common indoor and industrial environments.




Product Specifications

Number Of Pixels

272*400pixels

Active Area

30.19*53.28mm

Module Outline

33.89*60.32*2.04mm

Aspect Ratio

9:16

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

NTSC

47%Typ

LCM Brightness

350 cd/m²(Typ)

Interface

MCU/QSPI/RGB/MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃
