7.84 Inch Long Strip LCD Screen With 400×1280 Resolution 400 Cd/M2 Luminance
7.84 Inch Long Strip LCD Screen With 400×1280 Resolution 400 Cd/M2 Luminance
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Model Number :
JT-7.84IPSLS
Price :
1-20
Key Words :
7.84 Inch Long String IPS
Resolution :
400 × 1280
Display Mode :
IPS Full Viewing Angle
Luminance :
400 cd/m² (Typ)
Interface Definition :
SPI + RGB/MIPI
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Description
Technical Specifications
Parameter Value
Number of pixels 400 × 1280 pixels
Active Area 59.4 × 190.08 mm
Module Outline 67.86 × 206.24 × 4.42 mm
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80 (Typ)
NTSC 70% (Typ)
Contrast Ratio 700 MIN, 900 (Typ)
LCM Brightness 400 cd/m² (Typ) — Adjustable
Interface SPI + RGB/MIPI
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C

7.84-Inch Bar-Type TFT Display | 400×1280 Resolution | MIPI Interface | Ultra-Wide Aspect Ratio

Product Overview

This 7.84-inch bar-type TFT display features an ultra-wide 400×1280 pixel resolution and MIPI interface, driven by the ST77031 controller. With an IPS viewing angle and 400 nits brightness, it is designed for space-constrained applications requiring wide-format visual presentation.

Key Specifications

Display Size: 7.84 inches

Resolution: 400 × 1280 pixels

Aspect Ratio: 3:10

Viewing Technology: IPS (all-angle viewing)

Interface: MIPI

Driver IC: ST77031

Brightness: 400 cd/m²

Touch Option: Available with capacitive touch panel (CTP)

Control Board: Not included

Product Description

Featuring an ultra-wide 3:10 aspect ratio, this bar-type display is ideal for narrow-space integration such as appliance dashboards or information panels. Its expansive format enables clear presentation of wide graphics that would typically be compressed on conventional displays, and can be segmented to replace multiple smaller displays. The active display area measures 7.84 inches diagonally, and is equipped with an SPI+RGB OR MIPI interface and a high-brightness 400 nits LED backlight for versatile indoor application.

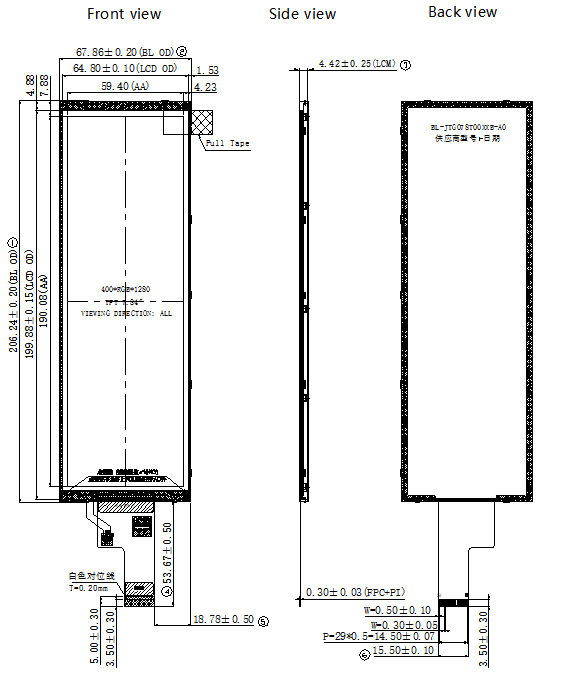

Bar Type 7.84" 400x1280 TFT Display Drawing
