2.86 Inch Touch Long Strip Bar Type TFT LCD Display 376x960 Resolution 250cd/M2 Industrial TFT Screen
2.86 Inch Touch Long Strip Bar Type TFT LCD Display 376x960 Resolution 250cd/M2 Industrial TFT Screen
2.86 Inch Touch Long Strip Bar Type TFT LCD Display 376x960 Resolution 250cd/M2 Industrial TFT Screen
2.86 Inch Touch Long Strip Bar Type TFT LCD Display 376x960 Resolution 250cd/M2 Industrial TFT Screen
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-2.86IPSLS
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
2.86 Inch Long String TFT
Resolution :
376*960
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m² (Typ)
Interface Definition :
RGB/MIPI
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description

ST7701SN Industrial TFT Display, Industrial TFT Display 376×960, 2.86" TFT Touch LCD

TFT Touch LCD 2.86-inch 376×960 IPS Full Viewing Angle RGB or MIPI Interface High PPI ST7701SN Display

2.86" IPS TFT, 376×960 MIPI LCD 2.86-inch Description

The Jingtai Liquid Crystal Display Technology JT-2.86IPSLS TFT LCD display module is a transmissive color active matrix TFT (Thin Film Transistor) liquid crystal display that uses amorphous silicon TFT as the switching device. This module consists of a TFT LCD panel, driver circuit, and backlight unit.

PPI (Pixels Per Inch) indicates the display resolution density; the 2.86-inch screen contains 376 (RGB) × 960 dots (an array of 376 horizontal by 960 vertical pixels) and is capable of displaying up to various colors.

The JT-2.86IPSLS TFT LCD model supports RGB and MIPI interface. The supply voltage (VCC) for driving the LCD panel ranges from 2.4V to 3.3V, with a typical value of 2.8V. It is suitable for use in embedded systems, automation, GPS, medical equipment, industrial devices, and security equipment that require high-quality, colorful TFT display performance.

The JT-2.86IPSLS is an IPS-LCD type (IPS refers to In-Plane Switching) TFT with a typical brightness of 250 cd/m². The brightness can be customized up to 1000 nits. Please contact our sales team for further details. The operating temperature range is from -20℃ to +70℃, and the storage temperature range is from -30℃ to +80℃.

Technical Specifications

Number of pixels 376 × 960 pixels
Active Area 26.51 × 67.67mm
Module Outline 30.01 × 76 × 2.41mm
Viewing Angle (CR>10) 85°/85°/85°/85° (Typical)
Display Mode Normally Black
NTSC 55.1% (Typical)
LCM Brightness 250cd/m² (Typical) – Adjustable
Interface RGB/MIPI
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C

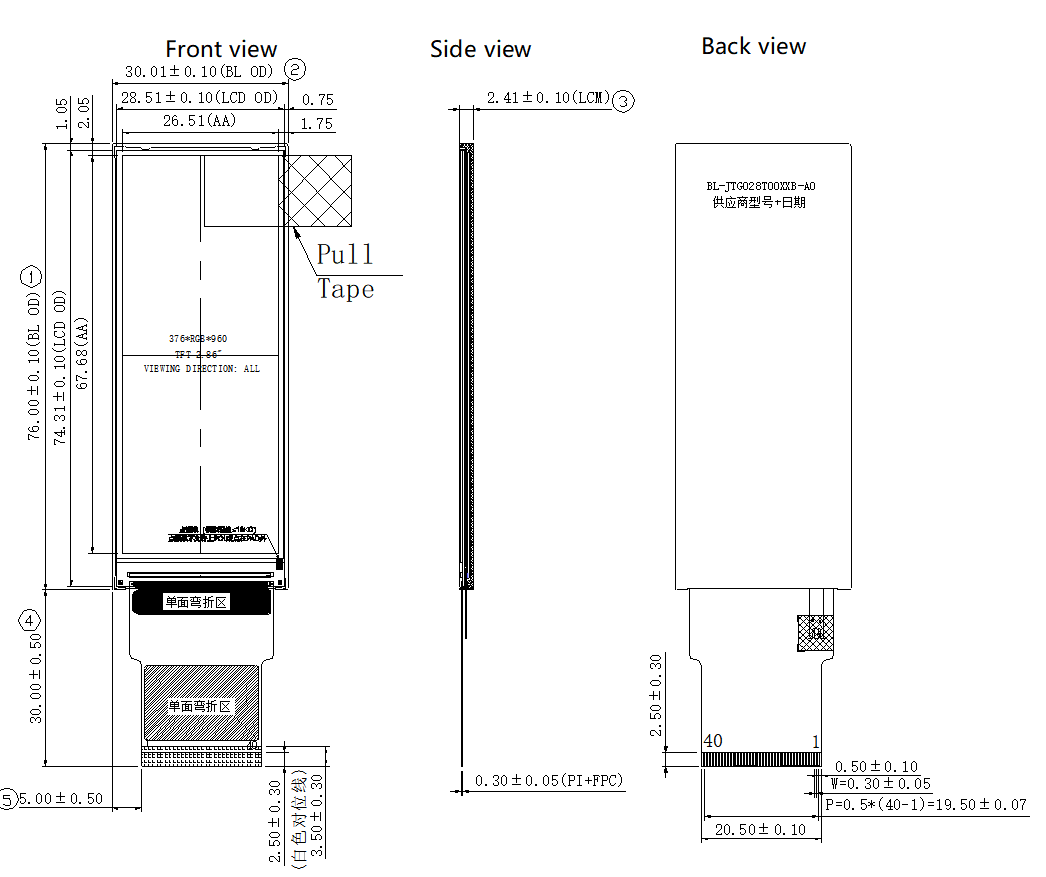

Bar Type 2.86" TFT Display Drawing

2.86 Inch Touch Long Strip Bar Type TFT LCD Display 376x960 Resolution 250cd/M2 Industrial TFT Screen

2.86 Inch Touch Long Strip Bar Type TFT LCD Display 376x960 Resolution 250cd/M2 Industrial TFT Screen

2.86 Inch Touch Long Strip Bar Type TFT LCD Display 376x960 Resolution 250cd/M2 Industrial TFT Screen

Why Choose Jingtai Liquid Crystal Display Technology?

  1. Custom LCD Display Solutions
    Have special requirements for application, electrical/optical specifications, touch features, or mechanical dimensions? JINGTAI delivers tailored LCD solutions to meet your unique product needs.

  2. Integrated Touch & Display Solutions
    Concerned about touch and display integration? We provide custom and standard touch panels—including resistive and capacitive multi-touch—along with air/optical bonding services for a complete display solution.

  3. Commitment to Quality & Reliability
    JINGTAI is ISO9001:2015 and ISO14000 certified, compliant with RoHS, REACH, and other international environmental standards. Our strict IQC, PQC, and OQC processes, along with reliability and aging tests, ensure consistent product quality.

  4. Long-Term Supply Assurance
    Products we recommend are typically available for over 5 years. For special requirements, we proactively prepare alternative plans to guarantee uninterrupted long-term supply.
