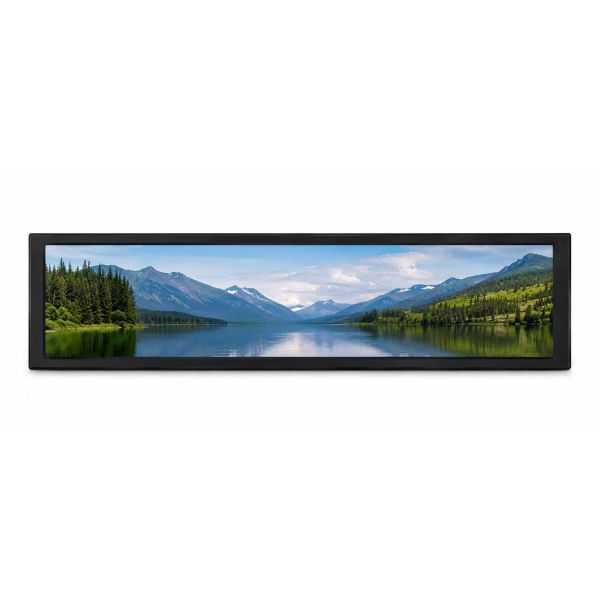

9.16 Inch IPS Bar Type TFT LCD Module 462×1920 MIPI Display

Overview

The 9.16 inch IPS bar type TFT LCD module is designed for devices that require a long strip display format and stable image performance. With a resolution of 462×1920 pixels and a 1:4 aspect ratio, the module is suitable for smart home equipment, industrial control systems, digital signage, transportation displays, and other embedded applications requiring vertical content presentation.

The module uses IPS technology to provide wide viewing angles and more stable color performance from different directions. The Normally Black display mode helps improve contrast and gives the interface a cleaner visual appearance.

Key Features

* 9.16 inch IPS long strip TFT LCD display
* 462×1920 high resolution for vertical content display
* MIPI interface for embedded system integration
* 750 cd/m² typical brightness
* Wide viewing angle: 85/85/85/85
* 1:4 aspect ratio for bar type applications
* Suitable for smart home and industrial devices
* Operating temperature: -20℃ to +70℃

Display Performance

This TFT LCD module features a typical brightness of 750 cd/m², helping maintain screen visibility in bright indoor environments. The 47% NTSC color gamut supports standard UI display requirements, including icons, status interfaces, text, and multimedia content. The IPS panel structure also helps maintain stable image quality during side viewing.

The active area measures 54.44×226.25mm, while the module outline size is 61.64×242.25×4.61mm. Its slim bar-type structure makes it easier to integrate into compact equipment and narrow installation spaces.

Application

The display can be used in smart home panels, industrial controllers, advertising displays, queue management systems, transportation terminals, and other devices that require a vertical TFT LCD screen with a long strip layout.
