3.9-Inch Bar Type TFT LCD | 480×128 Resolution | 40-Pin RGB Interface | Custom Touch Panel

Product Quick Details:

LCD Size: 3.9-inch TFT

Resolution: 480×128 pixels

Viewing Angle: Wide viewing angle

Outline Dimension: 105.5 × 40.64 × 2.7 mm

LCD Shape: Long Stripe Type

Interface: RGB

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Touch Panel: Resistive (RTP) or Capacitive (CTP) touchscreen customizable

Product Overview

The JT-3.9IPSLS is a 3.9-inch bar-type TFT LCD module with a resolution of 480×128 pixels. It features an RGB interface and is integrated with an ST7701SN controller, operating at a logic supply voltage of 2.6V to 3.3V. The module offers a brightness of 380 cd/m² and supports both resistive and capacitive touchscreen options.

Key Features

Bar-Type Design: Ideal for applications requiring a narrow, elongated display area

High Brightness: 380 nits for clear visibility in various lighting conditions

Flexible Touch Options: Customizable with resistive or capacitive touch panels

Robust Performance: Operating temperature range of -20°C to +70°C

Compact Dimensions: Module size: 105.5×40.64×2.7 mm; Active area: 95.04×25.34 mm

Product Advantages

1. Optimized Aspect Ratio: Unlike standard 4:3 or 16:9 displays, the bar-type layout efficiently presents information in space-constrained applications.

2. Multiple Size Options: Available in 3.9-inch, 4.6-inch, and 6.1-inch versions to meet diverse industrial needs.

Customizable Solutions:

Frame with screw holes

Capacitive or resistive touch panel options

High-brightness versions

IPS Wide Viewing Angle: 85/85/85/85 viewing angles, suitable for top-mounted, tabletop, or handheld use.

Superior Display Performance: Excellent color reproduction, luminance, and contrast.

Industrial-Grade Reliability: Wide temperature tolerance and high quality for demanding environments.

Competitive Pricing: Cost-effective without compromising quality.

Easy Installation & Maintenance: Designed for straightforward integration and long-term use.

Applications:

Ideal for embedded systems and devices requiring high-quality color displays, including:

Industrial control equipment

Automotive display systems

Server and POS systems

Dynamic information displays

Advertising panels

Security and handheld devices

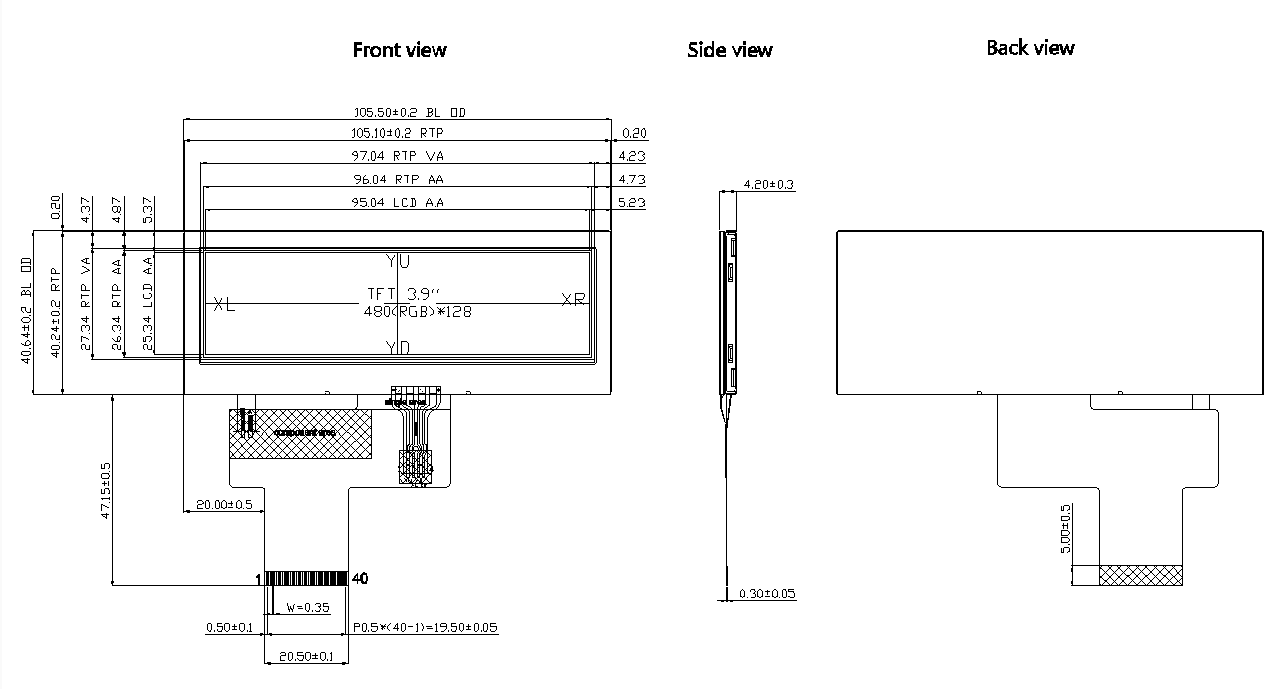

Bar Type 3.9" 480x128 TFT Display Drawing

Why Choose This Display?

The JT-3.9IPSLS combines a specialized bar-type design, industrial durability, and flexible customization options to meet unique application requirements. With competitive pricing and reliable performance, it is a practical choice for professional and industrial display solutions.
