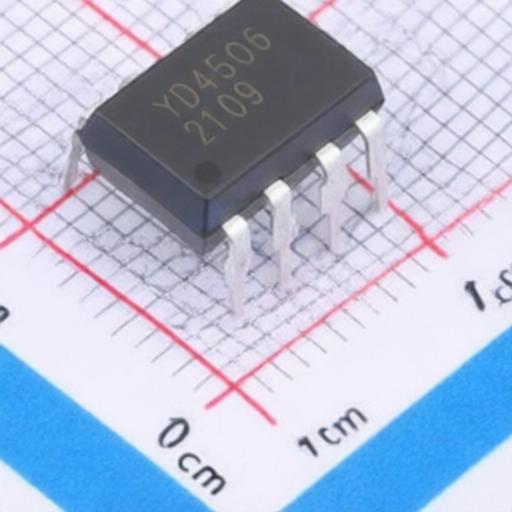

High speed GaAsP LED optocoupler KTP HCPL-4506-C1L0 for gate drive interface and inverter efficiency enhancement
High speed GaAsP LED optocoupler KTP HCPL-4506-C1L0 for gate drive interface and inverter efficiency enhancement
Specifications
Power Dissipation :
145mW
Load Voltage :
30V
Output Current :
15mA
Low Level Delay Time :
550ns
High Level Delay Time :
400ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.3V
Current transfer ratio :
44%
Voltage - Supply :
4.5V~30V
Forward Current(If) :
20mA
Operating Temperature :
-40℃~+100℃
CMTI(kV/us) :
30kV/us
Number of Channels :
1
Input threshold current :
800uA
Isolation Voltage(Vrms) :
3.75kV
Input Type :
DC
Description :
30V 15mA 5V 1.3V 4.5V~30V DC DIP-8 Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-4506-C1L0
Model Number :
HCPL-4506-C1L0
Package :
DIP-8
Description

HCPL-4506 Intelligent Power Module and Gate Drive Interface Optocoupler

The HCPL-4506 is a high-speed optocoupler featuring a GaAsP LED coupled to an integrated high-gain photodetector. It offers an internal 20K pull-up resistor, simplifying IPM applications by potentially eliminating external components. This optocoupler minimizes transmission delay differences between devices, reducing switching dead-time and improving inverter efficiency. It is designed for industrial temperature ranges from -40C to 100C.

Product Attributes

  • Brand: KTP Semiconductor
  • Model: HCPL-4506

Technical Specifications

ParameterSymbolMinTypicalMaxUnitTest Condition
Electrical Characteristics
Current Transfer RatioCTR4483%IF=10mA, VO=0.6V
Low Level Output CurrentIOL4.48.3mAIF=10mA, VO=0.6V
Low Level Output VoltageVOL0.20.6VIO=2.4mA
Input Threshold CurrentITH0.8mAVO=0.8V, IO=0.75mA
High Level Output CurrentIOH550uAVF=0.8V
High Level Supply CurrentICCH0.61.3mAVF=0.8V, VO=Open
Low Level Supply CurrentICCL0.61.3mAIF=10mA, VO=Open
Input Forward VoltageVF1.31.8VIF=10mA
Input Forward Voltage Temperature CoefficientVF/TA-1.6mV/IF=10mA
Input Reverse Breakdown VoltageBVR5VIR=10uA
Input CapacitanceCIN60pFf=1MHz, VF=0V
Internal Pull-up ResistorRL142025kTA=25
Internal Pull-up Resistor Temperature CoefficientRL/TA0.014k/
Switching Characteristics (External Resistor RL=20K)
Low Level Output Delay TimetPHL30200400nsCL=100pF
100nsCL=10pF
High Level Output Delay TimetPLH270400550nsCL=100pF
130nsCL=10pF
Pulse Width DistortionPWD200450ns
Differential Delay Between Any Two PathstPLH-tPHL-150200450nsCL=100pF
High Level Output Common Mode Transient ImmunityCMH1530kV/usIF=0mA, VO3.0V
Low Level Output Common Mode Transient ImmunityCML1530kV/usIF=10mA, VO1.0V
Switching Characteristics (RL=20K Internal Pull-up Resistor)
Low Level Output Delay TimetPHL20200400nsCL=100pF
High Level Output Delay TimetPLH220450650nsCL=100pF
Pulse Width DistortionPWD250500ns
Differential Delay Between Any Two PathstPLH-tPHL-150250500nsCL=100pF
High Level Output Common Mode Transient ImmunityCMH30kV/usIF=0mA, VO3.0V
Low Level Output Common Mode Transient ImmunityCML30kV/usIF=16mA, VO1.0V
Power Supply RejectionPSR1.0VP-PSquare wave, tRISE, tFALL5ns, without bypass capacitor
Package Characteristics
Transient Withstand Voltage Between Input and OutputVISO3750VrmsRH<50%, t=1min, TA=25C
Resistance Between Input and OutputRI-O1012VI-O=500Vdc
Capacitance Between Input and OutputCI-O0.6pFf=1MHz

Applications

  • IPM Isolation
  • IGBT/MOSFET Gate Isolation Drive
  • AC and Brushless DC Motor Drives
  • Industrial Inverters

Notes

It is recommended to take conventional electrostatic precautions when handling and assembling this device to prevent damage or degradation caused by electrostatic discharge.


2409280132_KTP-HCPL-4506-C1L0_C19185363.pdf
