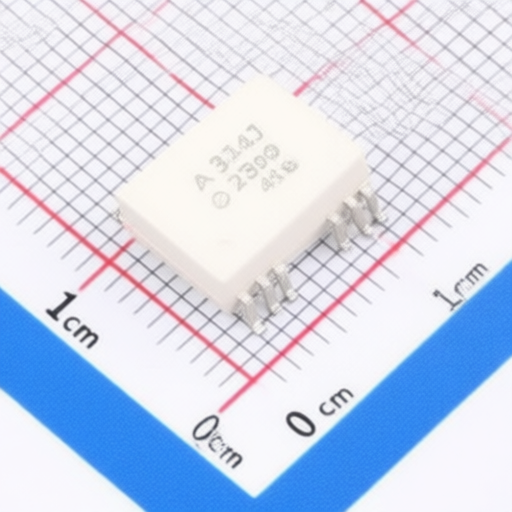

Driving power IGBTs and MOSFETs optocoupler Broadcom HCPL-314J-500E with high operating voltage range
Driving power IGBTs and MOSFETs optocoupler Broadcom HCPL-314J-500E with high operating voltage range
Specifications
Power Dissipation :
260mW
Output Current :
600mA
Low Level Delay Time :
700ns
High Level Delay Time :
700ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.5V
Voltage - Supply :
10V~30V
Forward Current(If) :
25mA
Operating Temperature :
-40℃~+100℃
CMTI(kV/us) :
35kV/us
Number of Channels :
2
Input threshold current :
5mA
Isolation Voltage(Vrms) :
5kV
Input Type :
DC
Description :
600mA 5V 1.5V 10V~30V DC SOP-16-300mil Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-314J-500E
Model Number :
HCPL-314J-500E
Package :
SOP-16-300mil
Description

Product Overview

The HCPL-314J is an optocoupler designed for driving power IGBTs and MOSFETs in motor control inverter applications. It features an Al-GaAs LED coupled with an integrated circuit and a power output stage, providing the necessary drive voltages for gate-controlled devices. This optocoupler is suitable for directly driving small to medium power IGBTs and offers high operating voltage range. It is available in a DIP8 (single) and SO16 (dual) package and boasts safety approvals including UL recognition and IEC/EN/DIN EN 60747-5-5.

Product Attributes

  • Brand: Avago Technologies
  • Product Family: HCPL-314J
  • RoHS Compliant: Available (Lead-Free options denoted by -xxxE)
  • Safety Approvals: UL Recognized (5000 Vrms for 1 minute per UL1577), CSA Approval, IEC/EN/DIN EN 60747-5-5 Approval
  • Package Types: DIP8 (single), SO16 (dual)

Technical Specifications

Specification Value Conditions/Notes
Minimum Peak Output Current 0.4 A
Max. Propagation Delay 0.7 s Over temperature range
Ultra High CMR min. 25 kV/s at VCM = 1.5 kV
Bootstrappable Supply Current max. 3 mA
Wide Operating Temperature Range -40C to 100C
Wide VCC Operating Range 10 V to 30 V Over temperature range
Package Type SO16 (dual) Part Number: HCPL-314J
Input-Output Momentary Withstand Voltage (VISO) 5000 Vrms TA=25C, RH<50% for 1 min.
Maximum Working Insulation Voltage (VIORM) 1414 Vpeak
High Level Output Current (IOH) 0.2 A (min) Vo = VCC - 4V
Low Level Output Current (IOL) 0.2 A (min) Vo = VEE + 2.5V
Propagation Delay Time to High Output Level (tPLH) 0.7 s (max)
Propagation Delay Time to Low Output Level (tPHL) 0.7 s (max)
Propagation Delay Difference (PDD) -0.5 to 0.5 s Between any two parts or channels
Rise Time (tR) 50 ns (typ)
Fall Time (tF) 50 ns (typ)
Output High Level Common Mode Transient Immunity (|CMH|) 25 kV/s (min) TA = 25C, VCM = 1.5 kV
Output Low Level Common Mode Transient Immunity (|CML|) 25 kV/s (min) TA = 25C, VCM = 1.5 kV

Applications

  • Isolated IGBT/power MOSFET gate drive
  • AC and brushless DC motor drives
  • Inverters for appliances
  • Industrial inverters
  • Switch Mode Power Supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)
