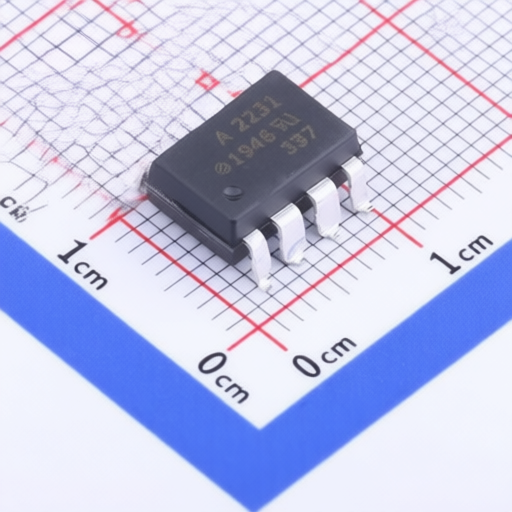

Optocoupler device Broadcom HCPL-2231-500E with GaAsP LED technology and logic compatible signal output
Optocoupler device Broadcom HCPL-2231-500E with GaAsP LED technology and logic compatible signal output
Specifications
Power Dissipation :
294mW
Output Current :
25mA
Low Level Delay Time :
300ns
High Level Delay Time :
300ns
Input threshold current :
2.2mA
Voltage - Forward(Vf) :
1.5V
Voltage - Supply :
4.5V~20V
Operating Temperature :
-40℃~+85℃
CMTI(kV/us) :
10kV/us
Isolation Voltage(Vrms) :
3.75kV
Number of Channels :
2
Input Type :
DC
Description :
25mA 1.5V 4.5V~20V DC SOP-8-2.54mm Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-2231-500E
Model Number :
HCPL-2231-500E
Package :
SOP-8-2.54mm
Description

Product Overview

The Broadcom HCPL-22XX, HCPL-02XX, and HCNW22XX series are optically coupled logic gate optocouplers designed for high-speed logic system isolation. These devices feature totem pole output stages and integrated Schmitt triggers for logic-compatible waveforms without additional waveshaping. With superior common mode transient immunity (up to 10 kV/s), wide operating voltage ranges, and guaranteed performance across a broad temperature spectrum, they are suitable for applications such as microprocessor system interfaces, ground loop elimination, and high-speed line receivers. The series offers low input current and is available in various package types.

Product Attributes

  • Brand: Broadcom
  • Technology: Optically Coupled Logic Gates
  • LED Type: GaAsP LED (HCPL-22XX, HCPL-02XX), AlGaAs LED (HCNW22XX)
  • Certifications: UL Recognized, CSA Approved, IEC/EN/DIN EN 60747-5-5 Approved (specific options)
  • Note: Not to be used in or aerospace applications or environments.

Technical Specifications

Model Series Key Feature Minimum CMR (kV/s) VCM (V) Typical Signal Rate Typical Propagation Delay (ns) Input Current (mA) Operating VCC Range (V) Operating Temperature (C) Package Options
HCPL-22XX, HCPL-02XX, HCNW22XX Optically Coupled Logic Gates 10 (HCPL-2211/2212/0211/2232, HCNW2211) 1000 (HCPL-2211/2212/0211/2232, HCNW2211) 5 Mbd 150 (Typical) 1.6 to 1.8 4.5 to 20 -40 to +85 8-pin DIP, SOIC-8, Wide body
HCPL-2211/2212, HCPL-0211, HCPL-2232, HCNW2211 Superior Internal Shield 10 1000 5 Mbd 150 (Typical) 1.6 to 1.8 4.5 to 20 -40 to +85 8-pin DIP, SOIC-8, Wide body
HCPL-22XX/02XX Series UL Recognized (3750 Vrms for 1 min) N/A N/A 5 Mbd 150 (Typical) 1.6 to 1.8 4.5 to 20 -40 to +85 8-pin DIP, SOIC-8, Wide body
HCNW22XX Series UL Recognized (5000 Vrms for 1 min) N/A N/A 5 Mbd 150 (Typical) 1.6 to 1.8 4.5 to 20 -40 to +85 8-pin Wide body
HCPL-2211/2212 Option 060 IEC/EN/DIN EN 60747-5-5 Approved N/A 630 Vpeak (VIORM) 5 Mbd 150 (Typical) 1.6 to 1.8 4.5 to 20 -40 to +85 8-pin DIP, SOIC-8
HCNW22XX (Option 060) IEC/EN/DIN EN 60747-5-5 Approved N/A 1414 Vpeak (VIORM) 5 Mbd 150 (Typical) 1.6 to 1.8 4.5 to 20 -40 to +85 8-pin Wide body
HCPL-52XX/62XX MIL-PRF-38534 hermetic version N/A N/A N/A N/A N/A N/A N/A N/A

2410121818_Broadcom-HCPL-2231-500E_C692021.pdf
