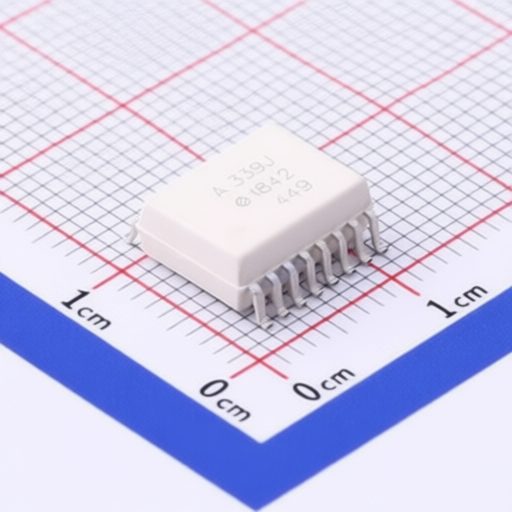

Dual output intelligent optocoupler Broadcom ACPL-339J-500E for driving IGBT and power MOSFET devices
Dual output intelligent optocoupler Broadcom ACPL-339J-500E for driving IGBT and power MOSFET devices
Specifications
Power Dissipation :
600mW
Output Current :
5.5A
Low Level Delay Time :
150ns
High Level Delay Time :
150ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.55V
Voltage - Supply :
3.3V~5.5V
Forward Current(If) :
10mA
Operating Temperature :
-40℃~+105℃
CMTI(kV/us) :
35kV/us
Number of Channels :
2
Input threshold current :
5mA
Isolation Voltage(Vrms) :
5kV
Input Type :
DC
Description :
5.5A 5V 1.55V 3.3V~5.5V DC SO-16-300mil Logic Output Optoisolators RoHS
Mfr. Part # :
ACPL-339J-500E
Model Number :
ACPL-339J-500E
Package :
SO-16-300mil
Description

Product Overview

The ACPL-339J is an advanced 1.0 A dual-output intelligent optocoupler designed for driving IGBT and Power MOSFET devices. It offers a scalable gate drive solution for motor control and power conversion applications, allowing system engineers to support various power ratings by interchanging MOSFET buffers without redesigning critical isolation and short-circuit protection circuits. Key features include active timing control to prevent cross-conduction, IGBT desaturation detection (DESAT), under-voltage lockout (UVLO) protection, and isolated fault feedback, providing enhanced design flexibility and circuit protection. It is suitable for applications such as AC and brushless DC motor drives, renewable energy inverters, industrial inverters, and switching power supplies.

Product Attributes

  • Brand: Avago Technologies (implied by content and references)
  • Package: SO-16
  • Safety Approvals Pending: UL Recognized (5000 VRMS), CSA, IEC/EN/DIN EN 60747-5-5

Technical Specifications

A kV/s Vrms
Parameter Symbol Min. Typ. Max. Units Conditions
Insulation Voltage (VIORM) VIORM 1414 Vpeak IEC/EN/DIN EN 60747-5-5
Peak Output Current 1.0 Minimum peak output current
Propagation Delay Time to High Output Level tPLH 100 180 300 ns CP = CN = 4 nF, f = 20 kHz, Duty Cycle = 50%, IF = 6 mA to 10 mA
Propagation Delay Time to Low Output Level tPHL 100 150 300 ns CP = CN = 4 nF, f = 20 kHz, Duty Cycle = 50%, IF = 6 mA to 10 mA
LED Input Current IF 6.0 10.0 mA Low LED input current
Common Mode Rejection (CMR) |CMH| / |CML| 25 35 TA = 25 C, VCM = 1500 V, VCC1 = 5 V, CF = 1 nF, RF = 10 k, IF = 8 mA with split resistors / VF = 0 V
Operating VCC Range VCC1 15 30 V Wide Operating VCC Range
Industrial Temperature Range TA -40 105 C Industrial temperature range
Input-Output Momentary Withstand Voltage VISO 5000 RH < 50%, t = 1 min., TA = 25 C
Maximum Working Insulation Voltage VIORM 1414 Vpeak IEC/EN/DIN EN 60747-5-5
DESAT Threshold VDESAT 7.5 8 9 V VCC2 VE > VUVLOP- and VE VEE > VUVLON-
UVLO_P Threshold, VCC2-VE VUVLOP+ 12 13 14 V IF = 8 mA, VOUTP VE < 5 V
UVLO_P Threshold, VCC2-VE VUVLOP- 11 12 13 V IF = 8 mA, VOUTP VE > 5 V
UVLO_N Threshold, VE-VEE VUVLON+ 4.8 5.4 6 V IF = 8 mA, VOUTN VEE < 1 V
UVLO_N Threshold, VE-VEE VUVLON- 4.7 5 5.7 V IF = 8 mA, VOUTN VEE > 1 V
