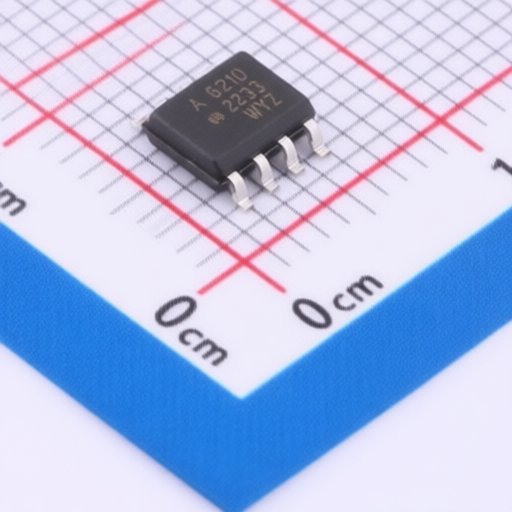

Surface mount multi channel optocoupler Broadcom ACSL 6210 50RE for isolated data conversion devices
Surface mount multi channel optocoupler Broadcom ACSL 6210 50RE for isolated data conversion devices
Specifications
Power Dissipation :
27mW
Output Current :
50mA
Low Level Delay Time :
100ns
High Level Delay Time :
100ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.52V
Voltage - Supply :
3V~5.5V
Forward Current(If) :
15mA
Operating Temperature :
-40℃~+100℃
CMTI(kV/us) :
10kV/us
Number of Channels :
2
Input threshold current :
7mA
Isolation Voltage(Vrms) :
2.5kV
Input Type :
DC
Description :
50mA 5V 1.52V 3V~5.5V DC SOIC-8 Logic Output Optoisolators RoHS
Mfr. Part # :
ACSL-6210-50RE
Model Number :
ACSL-6210-50RE
Package :
SOIC-8
Description

Product Overview

The Broadcom ACSL-6xx0 series are truly isolated, multi-channel, and bi-directional, high-speed optocouplers. Utilizing patented process technology for monolithic integration, these devices offer full duplex and bidirectional isolated data transfer in compact surface mount packages. Available with a 15-MBd speed option and a wide supply voltage range, their high channel density makes them ideal for isolating data conversion devices, parallel buses, and peripheral interfaces. They operate within a temperature range of 40C to +100C and are available in 8-pin and 16-pin narrow-body SOIC packages.

Product Attributes

  • Brand: Broadcom
  • Technology: Patented process technology
  • Certifications: UL Recognized (2500 Vrms for 1 min. per UL1577), cUL (CSA Component Acceptance Notice 5A), IEC/EN/DIN EN 60747-5-5
  • Compliance: RoHS Compliant
  • Packaging: Surface Mount (SO-8, SO-16), Tape and Reel, Tube

Technical Specifications

Feature Specification Details/Conditions
General Channel Configurations Dual, Triple, Quad
Directionality Bi-directional
Speed Option 15 MBd typical, 10 MBd minimum
Common Mode Rejection (CMR) 10kV/s minimum at Vcm = 1000V
Logic Compatibility LSTTL/TTL compatible
Electrical Characteristics Supply Voltage Range 3.0V to 5.5V
Input Forward Voltage (Typical) 1.25V - 1.52V @ 10mA, 25C
Input Current (Recommended) 7mA - 15mA
Output Current (Sinking, Max) 13mA (for VOL < 0.6V)
Switching Specifications Maximum Data Rate 15 MBd
Propagation Delay (tPLH, Typical) 46ns (3.3V), 43ns (5V)
Propagation Delay (tPHL, Typical) 52ns (3.3V), 44ns (5V)
Package Information Package Types 8-pin SOIC, 16-pin SOIC (Narrow Body)
Temperature Range 40C to +100C
Safety & Regulatory Isolation Voltage 2500 Vrms for 1 min. per UL1577
Insulation Characteristics (IEC/EN/DIN EN 60747-5-5) VIORM: 567 Vpeak, VPR (Method b): 1063 Vpeak, VPR (Method a): 907 Vpeak
Device Models ACSL-6210 Dual, Bi-Directional, 8-pin SOIC
ACSL-6300 Triple, All-in-One, 16-pin SOIC
ACSL-6310 Triple, Bi-Directional (2/1), 16-pin SOIC
ACSL-6400 Quad, All-in-One, 16-pin SOIC
ACSL-6410 Quad, Bi-Directional (3/1), 16-pin SOIC
ACSL-6420 Quad, Bi-Directional (2/2), 16-pin SOIC

Applications

  • Serial Peripheral Interface (SPI)
  • Inter-Integrated Interface (I2C)
  • Full duplex communication
  • Isolated line receiver
  • Microprocessor system interfaces
  • Digital isolation for A/D and D/A conversion
  • Instrument input/output isolation
  • Ground loop elimination
