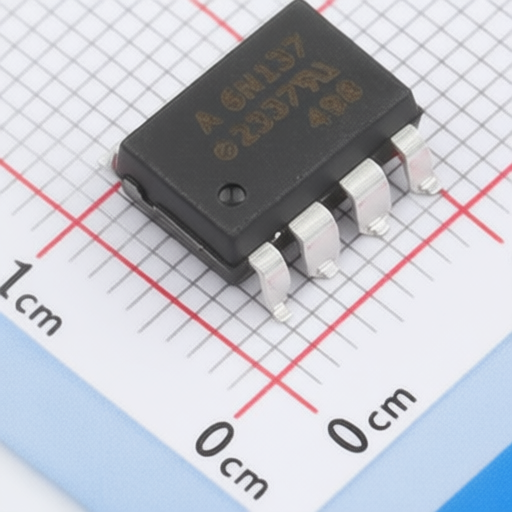

Broadcom 6N137-500E featuring GaAsP LED and Schottky clamped transistor output for circuit isolation
Broadcom 6N137-500E featuring GaAsP LED and Schottky clamped transistor output for circuit isolation
Specifications
Power Dissipation :
-
Output Current :
50mA
Low Level Delay Time :
25ns
High Level Delay Time :
48ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.5V
Voltage - Supply :
4.5V~5.5V
Forward Current(If) :
20mA
Operating Temperature :
-40℃~+85℃
CMTI(kV/us) :
10kV/us
Number of Channels :
1
Input threshold current :
5mA
Isolation Voltage(Vrms) :
5kV
Input Type :
AC,DC
Description :
50mA 5V 1.5V 4.5V~5.5V AC,DC SOIC-8 Logic Output Optoisolators RoHS
Mfr. Part # :
6N137-500E
Model Number :
6N137-500E
Package :
SOIC-8
Description

Product Overview

The Broadcom 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 are high CMR, high-speed TTL-compatible optocouplers designed for applications requiring maximum AC and DC circuit isolation. These optically coupled gates combine a GaAsP light-emitting diode with an integrated high-gain photodetector, featuring an enable input for strobing and an open-collector Schottky-clamped transistor output. With guaranteed performance from 40C to +85C and high common mode transient immunity (up to 15 kV/s), they are ideal for isolated line receivers, microprocessor system interfaces, digital isolation for A/D and D/A conversion, switching power supplies, and ground loop elimination.

Product Attributes

  • Brand: Broadcom
  • Certifications: UL recognized, CSA approved, IEC/EN/DIN EN 60747-5-5 approved

Technical Specifications

Feature/Model Description Value Unit
Common Mode Rejection (CMR) Minimum CMR at VCM= 1 kV for HCNW2611, HCPL-2611, HCPL-4661, HCPL-0611, HCPL-0661 15,000 V/s
Speed Typical 10 MBd
Input Current Capability Low 5 mA
Operating Temperature Guaranteed AC and DC performance -40 to +85 C
Package Options Available in 8-Pin DIP, SOIC-8, widebody
Strobable Output Available for single channel products Yes
Safety Approval (UL) Recognized per UL1577 3750 / 5000 Vrms for 1 minute
Safety Approval (CSA) Approved 5000 Vrms for 1 minute
Safety Approval (IEC/EN/DIN EN 60747-5-5) VIORM for 06xx Option 060 567 Vpeak
Safety Approval (IEC/EN/DIN EN 60747-5-5) VIORM for 6N137/26xx Option 060 630 Vpeak
Safety Approval (IEC/EN/DIN EN 60747-5-5) VIORM for HCNW137/26x1 1414 Vpeak
MIL-PRF-38534 Hermetic version available HCPL-56xx/66xx
Applications Isolated line receiver, Computer-peripheral interfaces, Microprocessor system interfaces, Digital isolation for A/D, D/A conversion, Switching power supply, Instrument input/output isolation, Ground loop elimination, Pulse transformer replacement, Power transistor isolation in motor drives, Isolation of high speed logic systems
Typical Propagation Delay (tPLH) 20 - 75 ns
Typical Propagation Delay (tPHL) 25 - 75 ns
Typical Pulse Width Distortion 3.5 - 40 ns
Typical Propagation Delay Skew (tPSK) 40 ns
Logic High CMR (CMH) 6N137 1,000 - 10,000 V/s
Logic High CMR (CMH) HCPL-2611/4661, HCPL-0611/0661, HCNW2611 15,000 - 25,000 V/s
Logic Low CMR (CML) 6N137 1,000 - 10,000 V/s
Logic Low CMR (CML) HCPL-2611/4661, HCPL-0611/0661, HCNW2611 15,000 - 25,000 V/s
Input-Output Insulation 8-Pin DIP, SO-8 3750 Vrms
Input-Output Insulation Widebody 5000 Vrms
