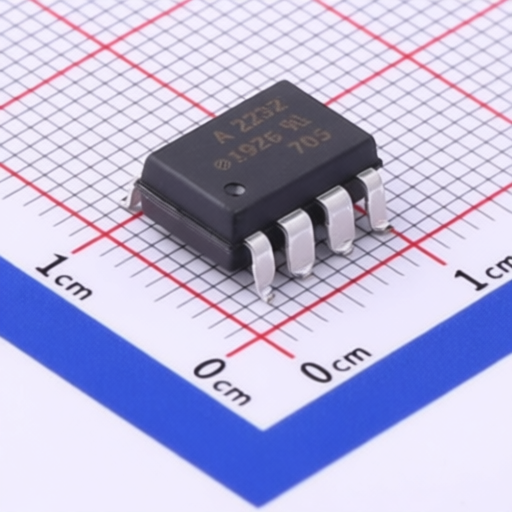

Wide voltage range Broadcom HCPL-2232-500E optocoupler device for versatile logic system applications
Wide voltage range Broadcom HCPL-2232-500E optocoupler device for versatile logic system applications
Specifications
Load Voltage :
0.5V
Power Dissipation :
294mW
Output Current :
25mA
Low Level Delay Time :
300ns
High Level Delay Time :
300ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.5V
Voltage - Supply :
4.5V~20V
Forward Current(If) :
5mA
Operating Temperature :
-40℃~+85℃
CMTI(kV/us) :
10kV/us
Number of Channels :
2
Input threshold current :
5mA
Isolation Voltage(Vrms) :
3.75kV
Input Type :
DC
Description :
0.5V 25mA 5V 1.5V 4.5V~20V DC SOP-8-150mil Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-2232-500E
Model Number :
HCPL-2232-500E
Package :
SOP-8-150mil
Description

Broadcom HCPL-22XX, HCPL-02XX, and HCNW22XX Optocouplers

Product Overview

The Broadcom HCPL-22XX, HCPL-02XX, and HCNW22XX series are optically coupled logic gate optocouplers designed for high-speed logic system isolation. Featuring internal Schmitt triggers for logic-compatible waveforms and robust common mode transient immunity (up to 10 kV/s), these devices eliminate the need for additional wave-shaping. They offer a wide operating VCC range (4.5V to 20V), low input current, and totem pole output stages, ensuring compatibility with TTL, LSTTL, and CMOS logic while minimizing power consumption. Applications include microprocessor system interfaces, ground loop elimination, pulse transformer replacement, and high-speed line receivers.

Product Attributes

  • Brand: Broadcom
  • LED Type: GaAsP (HCPL-22XX, HCPL-02XX), AlGaAs (HCNW22XX)
  • Output Stage: Totem pole
  • Safety Approvals: UL recognized, CSA approved, IEC/EN/DIN EN 60747-5-5 approved (specific options)
  • Certifications: UL1577, CSA Component Acceptance Notice #5, IEC/EN/DIN EN 60747-5-5
  • Handling Precaution: Normal static precautions advised due to ESD sensitivity.
  • Application Restriction: Not for use in or aerospace applications or environments.

Technical Specifications

Feature / Model HCPL-2201/02/11/12/31/32 HCPL-0201/11 HCNW2201/11 Unit Conditions / Notes
Minimum Common Mode Rejection (CMR) 10 kV/s 10 kV/s 10 kV/s kV/s At VCM = 1000V (HCPL-2211/2212/0211/2232, HCNW2211)
Wide Operating VCC Range 4.5 to 20 V
Propagation Delay 300 ns (guaranteed over full temperature range) ns
Typical Signal Rate 5 Mbd Mbd
Low Input Current 1.6 to 1.8 mA
Hysteresis Yes
Package Options 8-pin DIP, SOIC-8, Wide body 8-pin DIP, SOIC-8 8-pin DIP, Wide body
Operating Temperature Range 40C to +85C C
UL Recognized Withstand Voltage 3750 Vrms 3750 Vrms 5000 Vrms Vrms For 1 minute per UL1577
IEC/EN/DIN EN 60747-5-5 VIORM 630 Vpeak (Option 060 only) 630 Vpeak (Option 060 only) 1414 Vpeak Vpeak
Logic Low Output Voltage (VOL) Max. 0.5 V IOL = 6.4 mA (4 TTL Loads)
Logic High Output Voltage (VOH) Min. 2.4 V IOH = 2.6 mA
Propagation Delay Time (tPHL) Typ. 150 ns Without Peaking Capacitor
Propagation Delay Time (tPLH) Typ. 110 ns Without Peaking Capacitor
Output Rise Time (tr) Typ. 30 ns
Output Fall Time (tf) Typ. 7 ns
Logic Low Common Mode Transient Immunity (|CML|) 1,000 1,000 10,000 V/s |VCM| = 1 kV
Logic High Common Mode Transient Immunity (|CMH|) 1,000 1,000 10,000 V/s |VCM| = 1 kV
Input-Output Momentary Withstand Voltage (VISO) 3750 3750 5000 Vrms t = 1 min.

2410121818_Broadcom-HCPL-2232-500E_C692022.pdf
