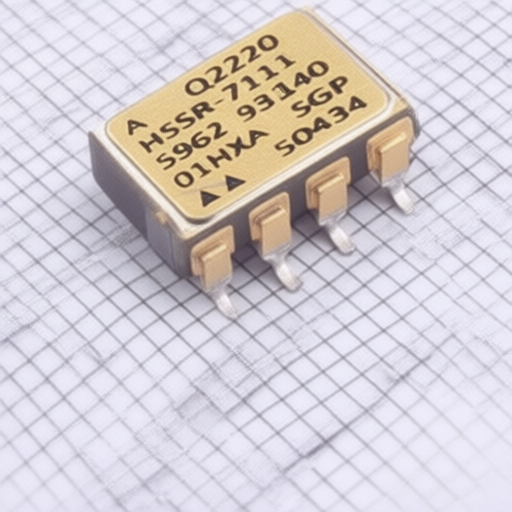

Broadcom HSSR 7111 300 single pole normally open relay replacement optocoupler for harsh environments
Broadcom HSSR 7111 300 single pole normally open relay replacement optocoupler for harsh environments
Specifications
Power Dissipation :
800mW
Load Voltage :
90V
Output Current :
1.6A
Low Level Delay Time :
6ms
High Level Delay Time :
250us
Input threshold current :
20mA
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.24V
Forward Current(If) :
20mA
Operating Temperature :
-55℃~+125℃
CMTI(kV/us) :
-
Number of Channels :
1
Input Type :
DC
Description :
90V 1.6A 5V 1.24V DC SMD-6P Logic Output Optoisolators
Mfr. Part # :
HSSR-7111#300
Model Number :
HSSR-7111#300
Package :
SMD-6P
Description

Product Overview

The Broadcom HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E, and SMD 5962-9314001, 5962-93140021 are single-channel power MOSFET optocouplers designed for high-reliability applications. These devices function as solid-state replacements for single-pole, normally open (1 Form A) relays, offering ac/dc signal and power switching capabilities in a compact, bidirectional switch. Manufactured and tested on a MIL-PRF-38534 certified line, they are suitable for and space applications, high reliability systems, and harsh industrial environments, including standard 28 Vdc and 48 Vdc load drivers, aircraft controls, and electromechanical/solid-state relay replacements.

Product Attributes

  • Brand: Broadcom
  • Certifications: MIL-PRF-38534 Class H, MIL-PRF-38534 Class E, QML-38534
  • Package: Hermetically sealed 8-pin, dual-in-line ceramic package
  • Construction: AlGaAs light-emitting diode optically coupled to a photovoltaic diode stack, driving two discrete power MOSFETs
  • ESD Classification: MIL-STD-883, Method 3015, Class 2

Technical Specifications

Model/Part Number Description Voltage Rating Current Rating (Connection A) Current Rating (Connection B) On-Resistance (Connection A) On-Resistance (Connection B) Operating Temperature Range Output Withstand Voltage Output Surge Current
HSSR-7110 Commercial 90V 0.8A 1.6A 1.0 0.25 -55C to +125C 1500 Vdc 5A
HSSR-7111 MIL-PRF-38534 Class H 90V 0.8A 1.6A 1.0 0.25 -55C to +125C 1500 Vdc 5A
HSSR-7112 MIL-PRF-38534 Class H 90V 0.8A 1.6A 1.0 0.25 -55C to +125C 1500 Vdc 5A
HSSR-711E MIL-PRF-38534 Class E (Class K with exceptions) 90V 0.8A 1.6A 1.0 0.25 -55C to +125C 1500 Vdc 5A
SMD 5962-9314001 DLA Standard Microcircuit Drawing 90V 0.8A 1.6A 1.0 0.25 -55C to +125C 1500 Vdc 5A
SMD 5962-93140021 DLA Standard Microcircuit Drawing 90V 0.8A 1.6A 1.0 0.25 -55C to +125C 1500 Vdc 5A
Connection A AC/DC Switching 90V 0.8A (Avg) - 0.40 (Typ), 1.0 (Max) - -55C to +125C 1500 Vdc 5.0A (Single Shot)
Connection B DC Switching Only 90V - 1.6A (Avg) - 0.12 (Typ), 0.25 (Max) -55C to +125C 1500 Vdc 10.0A (Single Shot)
Dimensions 8-Pin DIP - - - - - - - -
Thermal Resistance Junction to Case (JC) - - - 15C/W 15C/W - - -

2411111512_Broadcom-HSSR-7111-300_C31886134.pdf
