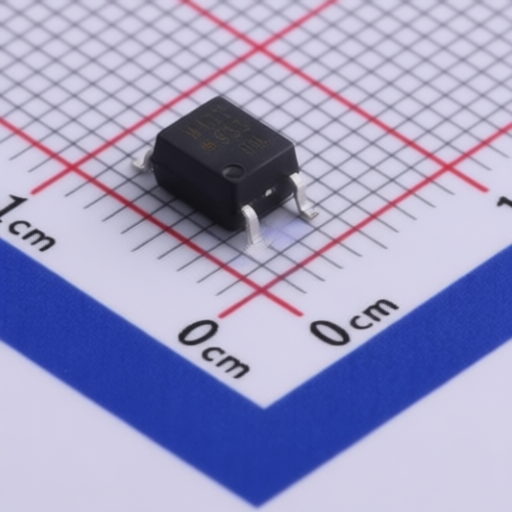

Automotive qualified digital optocoupler Broadcom ACPL M43T 500E with UL1577 and CSA certifications
Automotive qualified digital optocoupler Broadcom ACPL M43T 500E with UL1577 and CSA certifications
Specifications
Output Current :
8mA
Low Level Delay Time :
1us
High Level Delay Time :
1us
Reverse Voltage :
5V
Current transfer ratio :
24%
Voltage - Forward(Vf) :
1.55V
Voltage - Supply :
3V~20V
Operating Temperature :
-40℃~+125℃
Forward Current(If) :
20mA
CMTI(kV/us) :
30kV/us
Isolation Voltage(Vrms) :
4kV
Number of Channels :
1
Input Type :
DC
Description :
8mA 5V 1.55V 3V~20V DC SO-5-4.6mm Logic Output Optoisolators RoHS
Mfr. Part # :
ACPL-M43T-500E
Model Number :
ACPL-M43T-500E
Package :
SO-5-4.6mm
Description

Product Overview

The ACPL-M43T is a single-channel, high-temperature, high CMR, high-speed digital optocoupler designed for automotive applications. Featuring R2Coupler isolation technology and a compact SO-5 SMT package, it offers excellent electrical insulation and reliability. This optocoupler is ideal for automotive IPM driver applications, CANBus communication interfaces, and high-temperature digital/analog signal isolation. Its design minimizes base-collector capacitance, leading to significantly increased speed compared to conventional photo-transistor couplers, with a minimum common mode transient immunity of 30 kV/s.

Product Attributes

  • Brand: Avago
  • Technology: R2Coupler Isolation
  • Package Type: SO-5 (JEDEC MO-155)
  • Compliance: Lead (Pb) Free, RoHS 6 fully compliant options available
  • Certifications: UL1577 recognized (4000 Vrms/1 min), CSA Approved, IEC/EN/DIN EN 60747-5-5
  • Automotive Qualification: Qualifi ed to AEC-Q100 Test Guidelines
  • ESD Precaution: Normal static precautions advised
  • Not for: or aerospace applications

Technical Specifications

Parameter Symbol Min. Typ. Max. Units Conditions
Wide Temperature Range TA -40 125 C Operating Temperature
High Common-Mode Rejection |CMH|, |CML| 30 kV/s VCM = 1500 V
High Speed 1 MBd
Low LED Drive Current IF 10 mA
Low Propagation Delay tPHL, tPLH 300 ns (Typ)
Supply Voltage VCC 3.0 20.0 V Recommended Operating Conditions
Input Forward Voltage VF 1.45 1.55 1.75 V TA = 25C, IF = 10 mA
Current Transfer Ratio CTR 32 65 100 % TA = 25C, VCC = 4.5 V, VO = 0.4 V, IF = 10 mA
Logic Low Output Voltage VOL 0.1 0.5 V VCC = 4.5 V, IO = 2.4 mA, IF = 10 mA
Propagation Delay Time to Logic Low tPHL 0.07 0.15 0.8 s TA = 25C, IF = 10 mA, RL = 1.9 k, CL = 15 pF
Propagation Delay Time to Logic High tPLH 0.15 0.5 0.8 s TA = 25C, IF = 10 mA, RL = 1.9 k, CL = 15 pF
Input-Output Momentary Withstand Voltage VISO 4000 VRMS RH 50%, t = 1 min; TA = 25C
Input-Output Resistance RI-O 1014 VI-O = 500 Vdc
Input-Output Capacitance CI-O 0.6 pF f = 1 MHz; VI-O = 0 Vdc
Package Dimensions (SO-5) Refer to diagram mm (inches)

2412061752_Broadcom-ACPL-M43T-500E_C92191.pdf
