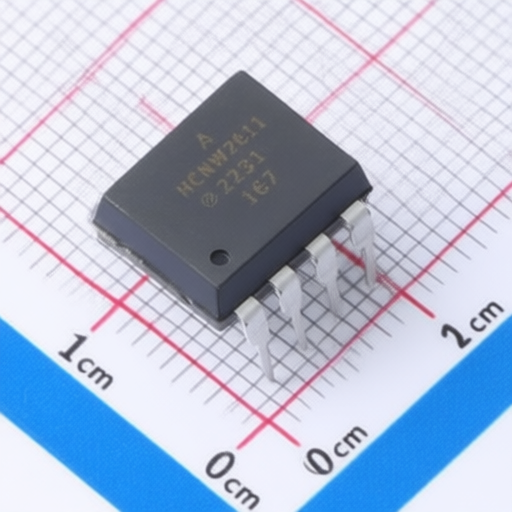

Industrial Grade Optocoupler Broadcom HCNW2611-000E with UL CSA IEC Approved Safety Ratings and High CMR
Industrial Grade Optocoupler Broadcom HCNW2611-000E with UL CSA IEC Approved Safety Ratings and High CMR
Specifications
Output Current :
50mA
Low Level Delay Time :
75ns
High Level Delay Time :
100ns
Input threshold current :
5mA
Voltage - Forward(Vf) :
1.5V
Voltage - Supply :
4.5V~5.5V
Operating Temperature :
-40℃~+85℃
CMTI(kV/us) :
25kV/us
Isolation Voltage(Vrms) :
5kV
Number of Channels :
1
Input Type :
DC
Description :
50mA 1.5V 4.5V~5.5V DC DIP-8 Logic Output Optoisolators RoHS
Mfr. Part # :
HCNW2611-000E
Model Number :
HCNW2611-000E
Package :
DIP-8
Description

Product Overview

The Broadcom 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 are optically coupled gates designed for high-speed logic interfacing, input/output buffering, and line reception in noisy environments. These optocouplers combine a GaAsP light-emitting diode with an integrated high-gain photodetector, offering TTL compatibility and robust isolation. Featuring high common mode rejection (CMR) up to 15 kV/s and guaranteed AC/DC performance over an industrial temperature range of -40C to +85C, they are suitable for applications requiring maximum AC and DC circuit isolation, such as isolated line receivers, microprocessor system interfaces, and switching power supplies.

Product Attributes

  • Brand: Broadcom
  • Certifications: UL recognized (3750 Vrms for 1 minute per UL1577), CSA approved, IEC/EN/DIN EN 60747-5-5 approved
  • Material: Internal shield for common mode transient immunity
  • Intended Use: Not for , aerospace, or automotive applications (not AEC-Q100 qualified)

Technical Specifications

Model/Series Minimum CMR (kV/s) Typical Speed (MBd) Input Current (mA) Output Type Temperature Range (C) Package Options Safety Approval Rating (UL) Safety Approval Rating (IEC/EN/DIN EN 60747-5-5)
6N137, HCPL-26xx, HCPL-06xx, HCPL-4661, HCNW137, HCNW26x1 15 (for HCNW2611, HCPL-2611, HCPL-4661, HCPL-0611, HCPL-0661) 10 5 (low input current capability) Open collector Schottky-clamped transistor -40 to +85 8-Pin DIP, SOIC-8, Widebody 3750 Vrms (HCPL-xxxx), 5000 Vrms (HCNWxxxx) for 1 minute VIORM = 567 Vpeak (06xx Option 060), 630 Vpeak (6N137/26xx Option 060), 1414 Vpeak (HCNW137/26x1)
HCPL-56xx/66xx N/A N/A N/A N/A N/A Hermetic version N/A N/A

Applications

  • Isolated line receiver
  • Computer-peripheral interfaces
  • Microprocessor system interfaces
  • Digital isolation for A/D, D/A conversion
  • Switching power supply
  • Instrument input/output isolation
  • Ground loop elimination
  • Pulse transformer replacement
  • Power transistor isolation in motor drives
  • Isolation of high speed logic systems
