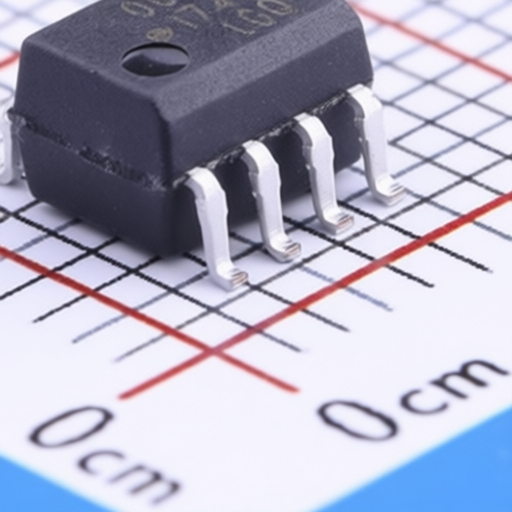

TTL compatible optocoupler Broadcom HCPL-0600-500E offering robust digital isolation with high speed and noise immunity
TTL compatible optocoupler Broadcom HCPL-0600-500E offering robust digital isolation with high speed and noise immunity
Specifications
Power Dissipation :
85mW
Output Current :
13mA
Low Level Delay Time :
20ns
High Level Delay Time :
25ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.75V
Voltage - Supply :
4.5V~5.5V
Forward Current(If) :
20mA
Operating Temperature :
-40℃~+85℃
CMTI(kV/us) :
15kV/us
Number of Channels :
1
Input threshold current :
5mA
Isolation Voltage(Vrms) :
3.75kV
Input Type :
AC,DC
Description :
13mA 5V 1.75V 4.5V~5.5V AC,DC SO-8 Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-0600-500E
Model Number :
HCPL-0600-500E
Package :
SO-8
Description

Product Overview

The 6N137, HCPL-26xx/06xx/4661, and HCNW137/26x1 series are high-speed, TTL-compatible optocouplers designed for robust digital isolation. These devices integrate a GaAsP light-emitting diode with a high-gain photodetector, featuring an enable input for strobing and an open-collector Schottky-clamped transistor output. They offer excellent common-mode rejection (up to 15 kV/s) and are ideal for applications requiring isolation in high-noise environments, such as microprocessor system interfaces, isolated line receivers, and digital isolation for A/D and D/A conversions. Performance is guaranteed over a wide temperature range (-40 C to +85 C).

Product Attributes

  • Brand: Avago (implied by product numbers and website reference)
  • Certifications: UL recognized, CSA approved, IEC/EN/DIN EN 60747-5-5 approved
  • Compliance: RoHS 6 fully compliant options available
  • Material: Not specified
  • Origin: Not specified
  • Color: Not specified

Technical Specifications

Feature Specification Details/Conditions
Common Mode Rejection (CMR) 15 kV/s minimum at VCM = 1 kV (for HCNW2611, HCPL-2611, HCPL-4661, HCPL-0611, HCPL-0661)
Speed 10 MBd typical
Compatibility LSTTL/TTL compatible
Low Input Current Capability 5 mA
Operating Temperature -40 C to +85 C Guaranteed AC and DC performance
Package Options 8-Pin DIP, SOIC-8, Widebody
Strobable Output Yes Single channel products only
UL Recognition 3750 Vrms for 1 minute (UL1577)
UL Recognition (Enhanced) 5000 Vrms* for 1 minute (UL1577) *for HCNW137/26X1 and Option 020 (6N137, HCPL-2601/11/30/31, HCPL-4661)
CSA Approval Approved
IEC/EN/DIN EN 60747-5-5 Approval Approved VIORM = 567 Vpeak (06xx Option 060), 630 Vpeak (6N137/26xx Option 060), 1414 Vpeak (HCNW137/26x1)
Hermetic Version Available MIL-PRF-38534 (HCPL-56xx/66xx)
Applications Isolated line receiver, Computer-peripheral interfaces, Microprocessor system interfaces, Digital isolation for A/D, D/A conversion, Switching power supply, Instrument input/output isolation, Ground loop elimination, Pulse transformer replacement, Power transistor isolation in motor drives, Isolation of high speed logic systems
Absolute Maximum Input Current (IF) 20 mA (Single 8-Pin DIP) Up to 85 C
Absolute Maximum Supply Voltage (VCC) 7 V (1 Minute Maximum)
Absolute Maximum Output Collector Current (IO) 50 mA
Typical Propagation Delay (tPLH) 48 ns RL = 350 , CL = 15 pF, TA = 25 C
Typical Propagation Delay (tPHL) 50 ns RL = 350 , CL = 15 pF, TA = 25 C
Typical Output Rise Time (tr) 24 ns
Typical Output Fall Time (tf) 10 ns
Input-Output Isolation Voltage (VISO) 3750 Vrms 8-Pin DIP, SO-8 (1 min)
Input-Output Isolation Voltage (VISO) 5000 Vrms Widebody, OPT 020 (1 min)
Input-Output Resistance (RI-O) 1012 VI-O = 500 Vdc

2409291833_Broadcom-HCPL-0600-500E_C6674.pdf
