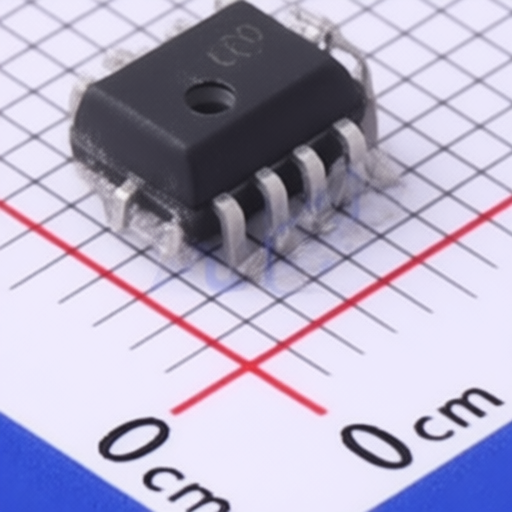

High speed optocoupler Broadcom HCPL-0601-500E featuring low input current and strong noise immunity
High speed optocoupler Broadcom HCPL-0601-500E featuring low input current and strong noise immunity
Specifications
Power Dissipation :
85mW
Output Current :
50mA
Low Level Delay Time :
75ns
High Level Delay Time :
75ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.4V
Voltage - Supply :
4.5V~5.5V
Forward Current(If) :
20mA
Operating Temperature :
-40℃~+85℃
CMTI(kV/us) :
15kV/us
Number of Channels :
1
Input threshold current :
5mA
Isolation Voltage(Vrms) :
3.75kV
Input Type :
AC,DC
Description :
50mA 5V 1.4V 4.5V~5.5V AC,DC SO-8-150mil Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-0601-500E
Model Number :
HCPL-0601-500E
Package :
SO-8-150mil
Description

Product Overview

The 6N137, HCPL-26xx/06xx/4661, and HCNW137/26x1 series are optically coupled gates that combine a GaAsP light-emitting diode with an integrated high-gain photodetector. Featuring high speed (10 MBd typical), LSTTL/TTL compatibility, and low input current capability (5 mA), these optocouplers offer robust isolation for various applications. They are designed for high-speed logic interfacing, input/output buffering, and use in environments with extreme ground or induced noise. The internal shield provides a guaranteed common-mode transient immunity specification up to 15,000 V/s at Vcm = 1000 V, ensuring maximum AC and DC circuit isolation.

Product Attributes

  • Brand: Avago (implied by trademarks and product numbering)
  • Certifications: UL Recognized (UL1577), CSA Approved, IEC/EN/DIN EN 60747-5-5 Approved, MIL-PRF-38534 (for hermetic versions)
  • Compliance: RoHS 6 fully compliant options available
  • Material: Not explicitly stated, but implies standard semiconductor materials.
  • Origin: Not explicitly stated.

Technical Specifications

Feature Specification Notes
Common Mode Rejection (CMR) 15 kV/s minimum at VCM = 1 kV For HCNW2611, HCPL-2611, HCPL-4661, HCPL-0611, HCPL-0661
High Speed 10 MBd typical
Compatibility LSTTL/TTL compatible
Low Input Current 5 mA
Operating Temperature -40 C to +85 C Guaranteed AC and DC performance
Package Options 8-Pin DIP, SOIC-8, Widebody
Strobable Output Yes Single channel products only
UL Recognition 3750 Vrms for 1 minute (UL1577)
UL Recognition 5000 Vrms* for 1 minute (UL1577) *For HCNW137/26X1 and Option 020 (6N137, HCPL-2601/11/30/31, HCPL-4661) products only.
CSA Approval Approved
IEC/EN/DIN EN 60747-5-5 Approval VIORM = 567 Vpeak (06xx Option 060)
IEC/EN/DIN EN 60747-5-5 Approval VIORM = 630 Vpeak (6N137/26xx Option 060)
IEC/EN/DIN EN 60747-5-5 Approval VIORM = 1414 Vpeak (HCNW137/26x1)
Hermetic Version Available MIL-PRF-38534 (HCPL-56xx/66xx)
Applications Isolated line receiver, Computer-peripheral interfaces, Microprocessor system interfaces, Digital isolation for A/D, D/A conversion, Switching power supply, Instrument input/output isolation, Ground loop elimination, Pulse transformer replacement, Power transistor isolation in motor drives, Isolation of high speed logic systems
Absolute Maximum Ratings (up to 85 C) Storage Temperature: -55 to 125 C
Absolute Maximum Ratings (up to 85 C) Operating Temperature: -40 to 85 C
Input Forward Voltage (Typical) 1.25 V to 1.85 V Depends on package and temperature
Propagation Delay (tPLH) 20 ns typical
Propagation Delay (tPHL) 25 ns typical
Common Mode Transient Immunity Up to 15,000 V/s

2410121608_Broadcom-HCPL-0601-500E_C45303.pdf
