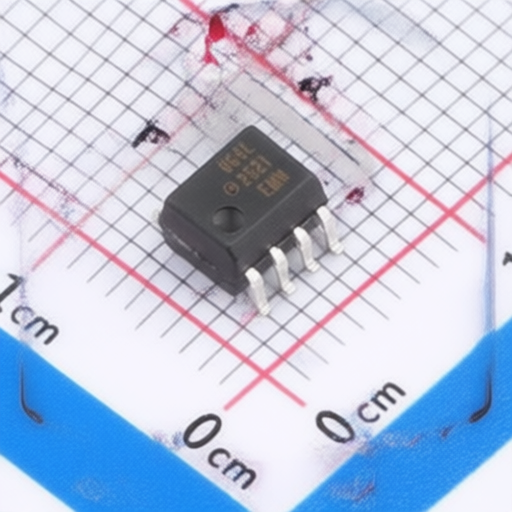

Ultra Digital CMOS Optocoupler Broadcom ACPL-064L-500E for Communication Interface Applications
Ultra Digital CMOS Optocoupler Broadcom ACPL-064L-500E for Communication Interface Applications
Specifications
Power Dissipation :
20mW
Output Current :
10mA
Low Level Delay Time :
80ns
High Level Delay Time :
80ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.3V
Voltage - Supply :
2.7V~5.5V
Forward Current(If) :
8mA
Operating Temperature :
-40℃~+105℃
CMTI(kV/us) :
20kV/us
Number of Channels :
2
Input threshold current :
6mA
Isolation Voltage(Vrms) :
3.75kV
Input Type :
DC
Description :
10mA 5V 1.3V 2.7V~5.5V DC SOIC-8 Logic Output Optoisolators RoHS
Mfr. Part # :
ACPL-064L-500E
Model Number :
ACPL-064L-500E
Package :
SOIC-8
Description

ACPL-x6xL Ultra Low Power 10 MBd Digital CMOS Optocouplers

Product Overview

The Avago ACPL-x6xL series are ultra-low power digital CMOS optocouplers designed for high-speed logic interface applications. These optocouplers integrate an AlGaAs light-emitting diode (LED) with an advanced integrated photodetector, consuming minimal power (1.3mA IDD maximum per channel). With a low forward LED current of 1.6mA, they are directly drivable by most microprocessors. An internal Faraday shield provides a guaranteed common mode transient immunity of 20 kV/s. They operate from 3.3V and 5V supply voltages with guaranteed AC and DC performance over a wide temperature range of -40C to +105C. Suitable for communication interfaces (RS485, CANBus, I2C), microprocessor system interfaces, and digital isolation for A/D and D/A converters.

Product Attributes

  • Brand: Avago
  • Technology: CMOS Digital Optocouplers
  • Compliance: RoHS compliant, RoHS 6 fully compliant options available
  • Safety Approvals: UL 1577 recognized, CSA Approval, IEC/EN/DIN EN 60747-5-5 approval

Technical Specifications

Feature/Model ACPL-064L ACPL-M61L ACPL-W61L ACPL-K64L Units Conditions
Ultra-low IDD current (max per channel) 1.3 mA
Low input current (min) 1.6 mA
Common Mode Rejection (CMR) (min) 20 kV/s VCM = 1000 V
High speed (min) 10 MBd
Operating Temperature Range 40 to +105 C
UL 1577 Isolation Voltage 3750 Vrms 3750 Vrms 5000 Vrms 5000 Vrms Vrms for 1 minute
Package Types SO-8 SO-5 Stretched SO-6 Stretched SO-8
Propagation Delay Time to Logic Low Output (tPHL) (max) 80 ns IF = 2 mA, CL = 15 pF
Propagation Delay Time to Logic High Output (tPLH) (max) 80 ns IF = 2 mA, CL = 15 pF
Input-Output Insulation Resistance (min) 1012 VI-O = 500 V
Input-Output Capacitance (typ) 0.6 pF f = 1 MHz
Supply Voltage (VDD) 2.7 to 5.5 V
