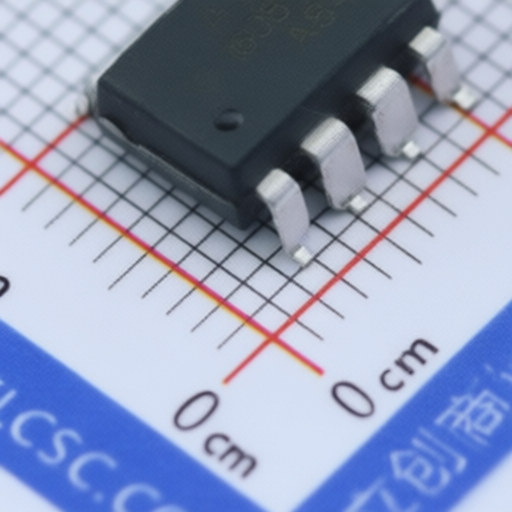

IGBT Gate Drive Optocoupler Broadcom HCPL-3120-500E with Wide VCC Range and High Common Mode Rejection
IGBT Gate Drive Optocoupler Broadcom HCPL-3120-500E with Wide VCC Range and High Common Mode Rejection
Specifications
Power Dissipation :
295mW
Output Current :
2.5A
Low Level Delay Time :
500ns
High Level Delay Time :
500ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.8V
Voltage - Supply :
15V~30V
Forward Current(If) :
16mA
Operating Temperature :
-40℃~+100℃
CMTI(kV/us) :
35kV/us
Number of Channels :
1
Input threshold current :
5mA
Isolation Voltage(Vrms) :
3.75kV
Input Type :
DC
Description :
2.5A 5V 1.8V 15V~30V DC SOP-8-2.54mm Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-3120-500E
Model Number :
HCPL-3120-500E
Package :
SOP-8-2.54mm
Description

Product Overview

The HCPL-3120, HCPL-J312, and HCNW3120 are high-output current IGBT gate drive optocouplers designed for driving power IGBTs and MOSFETs in motor control inverter applications. These optocouplers feature a maximum peak output current of 2.5 A, a low maximum output low-level voltage (VOL) of 0.5 V, and a wide operating VCC range of 15 to 30 Volts. They offer Under Voltage Lock-Out (UVLO) protection with hysteresis and fast switching speeds up to 500 ns. The devices are suitable for directly driving IGBTs up to 1200 V/100 A and provide excellent common mode rejection (CMR) of 25 kV/s. Applications include IGBT/MOSFET gate drive, AC/Brushless DC motor drives, industrial inverters, and switch mode power supplies.

Product Attributes

  • Brand: Avago Technologies
  • RoHS Compliance: RoHS 6 fully compliant options available
  • Safety Approvals: UL Recognized, CSA Approval, IEC/EN/DIN EN 60747-5-5 Approved

Technical Specifications

Model Output Peak Current (IO) IEC/EN/DIN EN 60747-5-5 Approval (VIORM) UL Recognition (Vrms for 1 min) CSA Approval
HCPL-3120 2.5 A 630 Vpeak (Option 060) 3750 Vrms Compliant
HCPL-J312 2.5 A 1230 Vpeak 3750 Vrms Compliant
HCNW3120 2.5 A 1414 Vpeak 5000 Vrms Compliant
Parameter Symbol Min. Typ. Max. Units Conditions
Maximum Peak Output Current IO(PEAK) 2.5 A
Minimum Peak Output Current IO(PEAK) 2.0 A
Common Mode Rejection (CMR) CMR 25 kV/s VCM = 1500 V
Maximum Low Level Output Voltage VOL 0.5 V
Maximum Supply Current ICC 5 mA
Wide Operating VCC Range VCC 15 30 Volts
Maximum Switching Speeds 500 ns
Industrial Temperature Range TA -40 100 C
Power Supply Voltage VCC - VEE 15 30 Volts Recommended Operating Conditions
Input Current (ON) IF(ON) 7 16 mA HCPL-3120, HCPL-J312 (Recommended Operating Conditions)
Input Current (ON) IF(ON) 10 16 mA HCNW3120 (Recommended Operating Conditions)
Input Voltage (OFF) VF(OFF) -3.6 0.8 V Recommended Operating Conditions
Storage Temperature TS -55 125 C Absolute Maximum Ratings
Input Reverse Voltage VR 5 V HCPL-3120, HCPL-J312 (Absolute Maximum Ratings)
Output Power Dissipation PO 250 mW Absolute Maximum Ratings
Total Power Dissipation PT 295 mW Absolute Maximum Ratings
Propagation Delay Time (tPLH) tPLH 0.30 0.50 s Typ. (Recommended Operating Conditions)
Propagation Delay Time (tPHL) tPHL 0.30 0.50 s Typ. (Recommended Operating Conditions)
UVLO Turn On Delay tUVLO ON 0.8 s
UVLO Turn Off Delay tUVLO OFF 0.6 s

2410121607_Broadcom-HCPL-3120-500E_C36986.pdf
