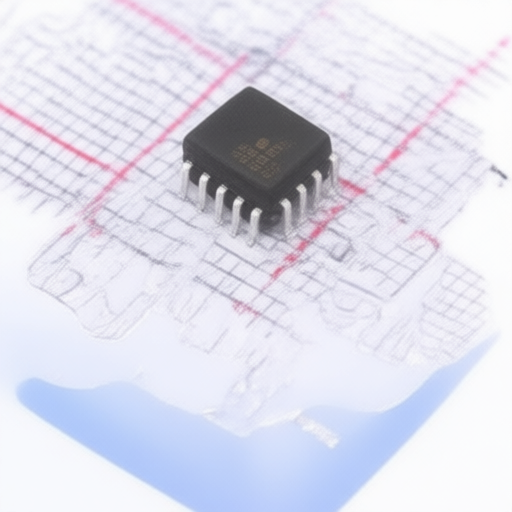

Optically Coupled Gate Broadcom HCPL-060L-500E with High Gain Photo Detector and 15 kV per Second CMR
Optically Coupled Gate Broadcom HCPL-060L-500E with High Gain Photo Detector and 15 kV per Second CMR
Specifications
Power Dissipation :
85mW
Output Current :
50mA
Low Level Delay Time :
100ns
High Level Delay Time :
75ns
Reverse Voltage :
5V
Voltage - Forward(Vf) :
1.5V
Voltage - Supply :
2.7V~3.6V;4.5V~5.5V
Forward Current(If) :
20mA
Operating Temperature :
-40℃~+85℃
CMTI(kV/us) :
25kV/us
Number of Channels :
1
Input threshold current :
5mA
Isolation Voltage(Vrms) :
3.75kV
Input Type :
DC
Description :
50mA 5V 1.5V DC SO-8 Logic Output Optoisolators RoHS
Mfr. Part # :
HCPL-060L-500E
Model Number :
HCPL-060L-500E
Package :
SO-8
Description

Product Overview

The HCPL-260L/060L/263L/063L are optically coupled gates that integrate a GaAsP light-emitting diode with a high-gain photo detector. Featuring an enable input for strobing and an open-collector Schottky-clamped transistor output, these optocouplers provide robust AC and DC circuit isolation. With a guaranteed common mode transient immunity of 15 kV/s at 3.3V, they offer LVTTL/LVCMOS compatibility and reliable performance across a wide temperature range (40 C to +85 C). Ideal for high-speed logic interfacing, input/output buffering, and operation in extremely noisy environments, they are suitable for applications requiring maximum AC and DC circuit isolation.

Product Attributes

  • Brand: Avago Technologies
  • Compliance: Lead (Pb) Free, RoHS 6 fully compliant options available
  • Safety Approvals: UL, CSA, IEC/EN/DIN EN 60747-5-5

Technical Specifications

Model Description Package Voltage Speed CMR (min.) Temperature Range
HCPL-260L/060L/263L/063L Optically Coupled Gates 8-pin DIP, SOIC-8 3.3V/5V Dual Supply 15 MBd typical 15 kV/s 40 C to +85 C
Parameter Symbol Min. Typ. Max. Units Conditions
Propagation Delay Time to High Output Level tPLH 90 ns RL = 350 , CL = 15 pF, VCC = 3.3 V, IF = 7.5 mA
Propagation Delay Time to Low Output Level tPHL 75 ns RL = 350 , CL = 15 pF, VCC = 3.3 V, IF = 7.5 mA
Input Threshold Current ITH 3.0 5.0 mA VCC = 3.3 V, VE = 2.0 V, VO = 0.6 V, IOL (Sinking) = 13 mA
Low Level Output Voltage VOL 0.35 0.6 V VCC = 3.3 V, IF = 5 mA, IOL (Sinking) = 13 mA
Input Forward Voltage VF 1.4 1.5 1.75* V TA = 25 C, IF = 10 mA
Input-Output Withstand Voltage VISO 3750 Vrms RH 50%, t = 1 min, TA = 25 C
Common Mode Rejection (High Level) |CMH| 10 15 kV/ms VCC = 5 V, IF = 0 mA, VO(MIN) = 2 V, RL = 350 W, TA = 25 C, VCM = 1000 V
Common Mode Rejection (Low Level) |CML| 10 15 kV/ms VCC = 5 V, IF = 7.5 mA, VO(MAX) = 0.8 V, RL = 350 W, TA = 25 C, VCM = 1000 V

2410121706_Broadcom-HCPL-060L-500E_C188699.pdf
