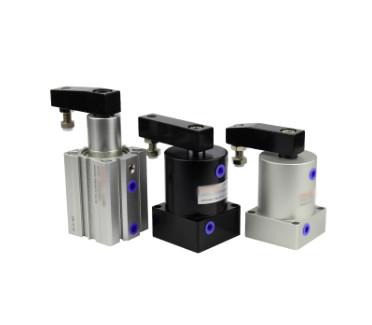

Eco Pneumatic Swing Clamp , Rotating Pneumatic Air Clamps OEM Service
Eco Pneumatic Swing Clamp , Rotating Pneumatic Air Clamps OEM Service
Specifications
Brand Name :
Jiayan
Model Number :
SRC
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
1000 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton
Material :
Aluminium alloy
Type :
Standard
Structure: :
Rotary Cylinder
Power: :
Pneumatic
Maximum Stroke :
15mm
Shaft Diameter: :
25mm-63mm
Acting Type: :
Double acting
Working Media :
Cleaned Air
Working Pressure :
0.1-0.9Mpa
Working Temperature :
-5~70℃
Port size: :
M5X0.8
Working Speed: :
30~500 mm/sec
Rotary Stroke: :
11-15mm
Clamping Stroke: :
11-15mm
Description

40x90 Type Pneumatic Rotary Rotating Clamp Clamping Cylinder Machining Jig Fixture

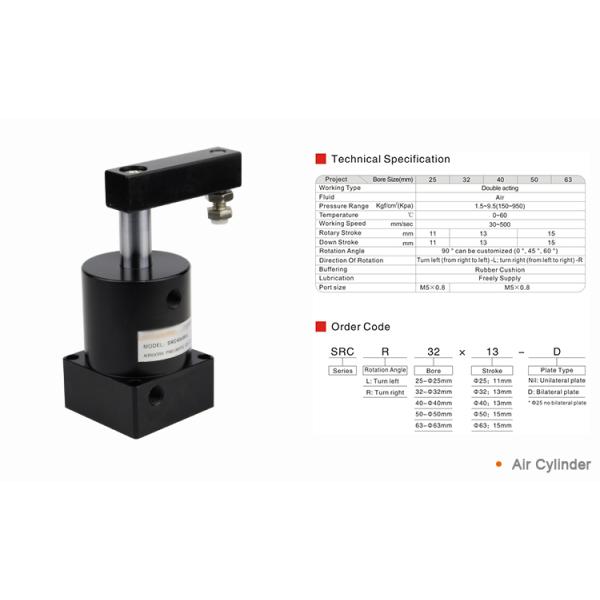

Product Specifications

Packaging & Delivery

Selling Units:Single item

Single package size:12X6X6 cm

Single gross weight:0.81 KG

Bore Size(mm) 25 32 40 50 63
Working Type Double Acting
Working Media Cleaned Air
Working Pressure 0.15~0.95Mpa
Working Temperature 0~60℃
Working Speed 30~500mm/sec
Rotary Stroke 11mm 13mm 15mm
Down Stroke 11mm 13mm 15mm
Rotation Angle 90° can be customized(0°, 45°, 60°)
Direction of Rotation Turn left(from right to left)-L; turn right(from left to right)-R
Buffering Rubber Cushion
Port Size M5X0.8 M5X0.8
Lubrication Freely supply
