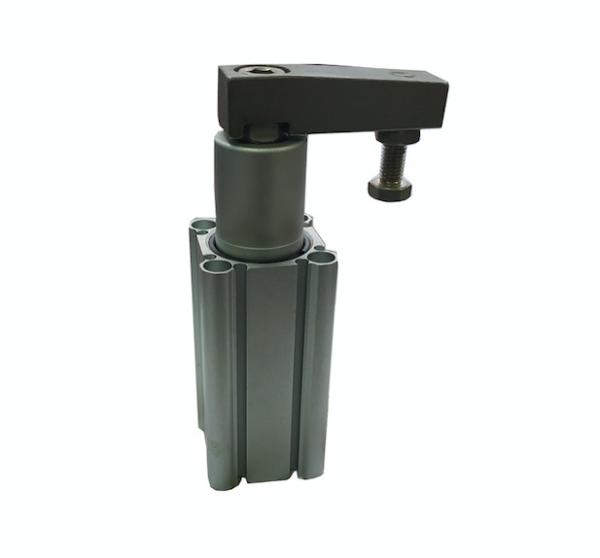

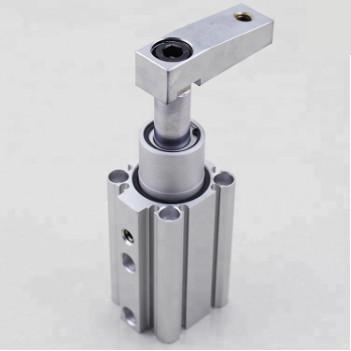

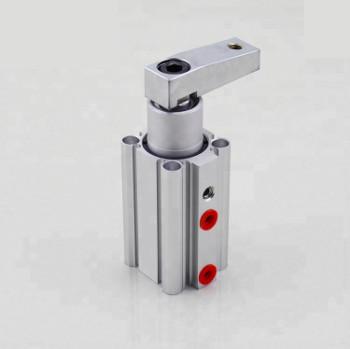

Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span
Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span
Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span
Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span
Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span
Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span
Specifications
Brand Name :
Jiayan
Model Number :
MK
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
1000 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Aluminium Alloy
Type :
Standard
Structure :
rotary cylinder
Fluid :
air
Action :
Double Action
Working Pressure :
0.1~1Mpa
Fluid Temperature :
-10~+70℃
Port Size: :
G1/8'', G1/4'' M5x0.8
Stroke :
10/20/50mm
Description

Air Cylinders Rotary Actuator Pneumatic Swing Clamping Cylinder Electronics Manufacture Clamps

Product Features

1.Optimized design , compact structure, light weight, long life span and high clamping force make it a perfect fixture

2.This product has long stroke and short stroke
3.Mounting by four screws
4.Applied to industrial automation, clamping of sheet metal, clamping of workpiece on conveyor belt and packing assembly line
5.When the length of the clamping arm need to be increased, do not exceed 15 times of the original length

Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span

Specifications

Bore Size(mm) 12 16 20 25 32 40 50 63
Acting Double acting
Back-Rotation Angle 90°± 10°
Back-Rotation Direction Left(Counterclockwise) , Right(Clockwise)
Back-Rotation Distance 7.5mm 9.5mm 15mm 19mm
Clamping Distance 10,20,30mm 10,20,30,50mm
Allowed Bending Torque(N.m) 1 3.8 7 13 27 47 107 182
Theoretical Clamp Force(N) 40 75 100 185 300 525 825 1400
Working Fluid Cleaned Air
Proof Pressure 1.5 Mpa
Working Pressure 0.1~1Mpa 0.1~0.6Mpa
Fluid Temperature With magnetic switch:-10~+60℃(No freezing), Non-magnetic switch:-10~+70℃(No freezing)
Lubrication No need
Piping Port Size M5*0.8 G1/8" G1/4"
Mounting Through-hole/ Both ends tapped common /Head flange
Buffering Rubber bumper
Stroke Length Tolerance +0.6mm ~ -0.4mm
Piston Speed 50-200mm/s
Non-Rotation
Piston Rod Accuracy 		±1.4° ±1.2° ±0.9°

±0.7°
