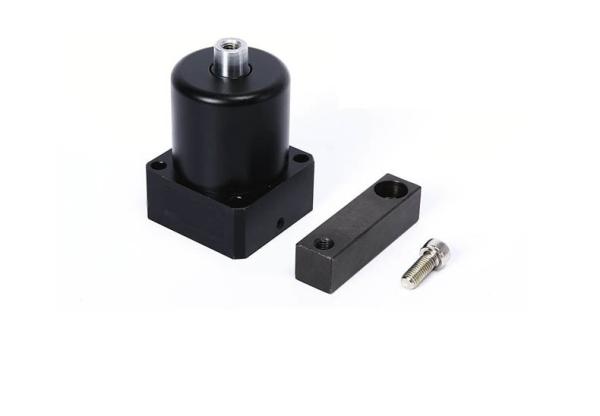

Aluminium Alloy Pneumatic Swing Clamp Double Acting Feature Long Working Life
Aluminium Alloy Pneumatic Swing Clamp Double Acting Feature Long Working Life
Aluminium Alloy Pneumatic Swing Clamp Double Acting Feature Long Working Life
Aluminium Alloy Pneumatic Swing Clamp Double Acting Feature Long Working Life
Aluminium Alloy Pneumatic Swing Clamp Double Acting Feature Long Working Life
Aluminium Alloy Pneumatic Swing Clamp Double Acting Feature Long Working Life
Specifications
Brand Name :
Jiayan
Model Number :
SRC
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
500 pcs per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Alloy Cylinder
Acting Type :
double acting
Fluid :
Filtered air
Work Temperature :
0-60C
Operation Pressure :
1.5-9.5/kgf/cm2
operation speed :
30-500mm/sec
rotary angle :
90 , others are available
Rotary direction :
clockwise or anti clockwise
Port Diameter :
M5*0.8
Warranty :
1 year (change new one for free)
Description

Pneumatic Rotary Clamp Cylinder Aluminium Alloy Cylinder Mature Manufacture Technique

Advantages:

1.This type rotary clamp is made by advanced manufacture equipment.

2.Strict material selection method

3.Advanced inspection instrument

4.Skillful technician

Specifications:

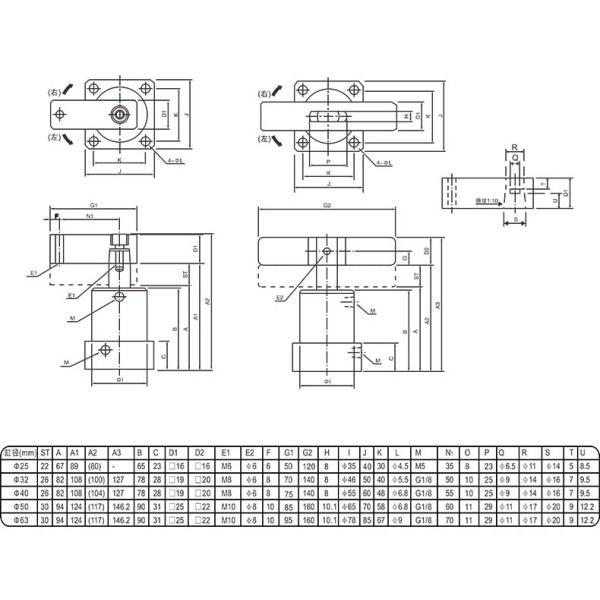

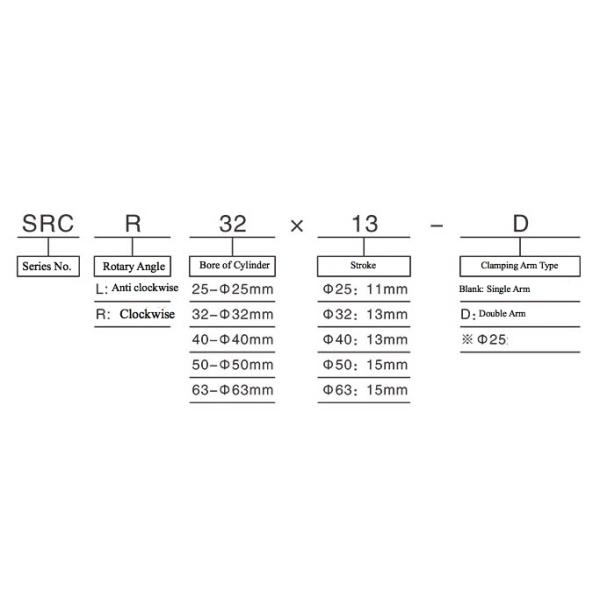

Bore of cylinder 25 32 40 50 63
Acting type double acting type
Fluid filtered air
Operation Pressure Kgf/cm2(Kpa) 1.5-9.5(150-950)
Work Temperature 0-60
Operation Speed 30-500
Rotary Stroke mm 11 13 15
Clamping Stroke mm 11 13 15
Rorary angle 90 degree , optional angle 0, 45, 60
Rotary direction clockwise or anti clockwise
