Rotary Clamping Cylinder Pneumatic Free Oiling Double Acting Feature
Rotary Clamping Cylinder Pneumatic Free Oiling Double Acting Feature
Rotary Clamping Cylinder Pneumatic Free Oiling Double Acting Feature
Rotary Clamping Cylinder Pneumatic Free Oiling Double Acting Feature
Specifications
Brand Name :
Jiayan
Model Number :
SRC
Certification :
ISO9001:2008
Place of Origin :
Dongguan Shenzhen
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
500 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Aluminum alloy
Structure :
Rotary cylinder
Type :
Standard
Fluid :
filtered air
Shaft Diameter :
63mm
Action: :
Double Action
Working Pressure: :
1.5~9.5kgf/cm2
Working Temperature :
0~60℃
Port Size :
M5x0.8
Rotating Direction :
L: Left R:Right
Description

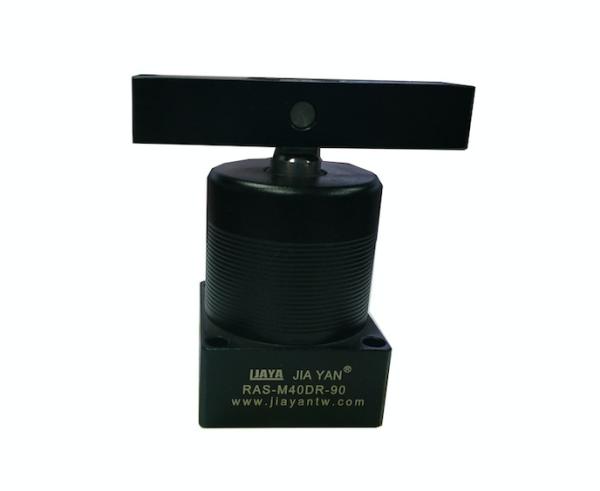

Rotary Pneumatic Air Clamping Down Cylinder Free Oiling Double Acting Cylinder

1.This machine with MC clamp is exclusively to mass-produce spare parts.It is a big helper to raise production efficiency.
2.The clamping arm of this clamp will swing around the angle when the piston traveling down,and then keep straight on until the clamping arm clamps the work-piece tightly.
3.You had better install a flow control valve to adjust the acting speed,and don't clamp the workpiece when the clamp is running,Otherwise will be easy to damage the body and the spare parts.
4.The material of the cylinder body is made of aluminum metal alloy, the surface is processed with the hard membrane and the inside of it is smooth.Long life-span
5.Double acting

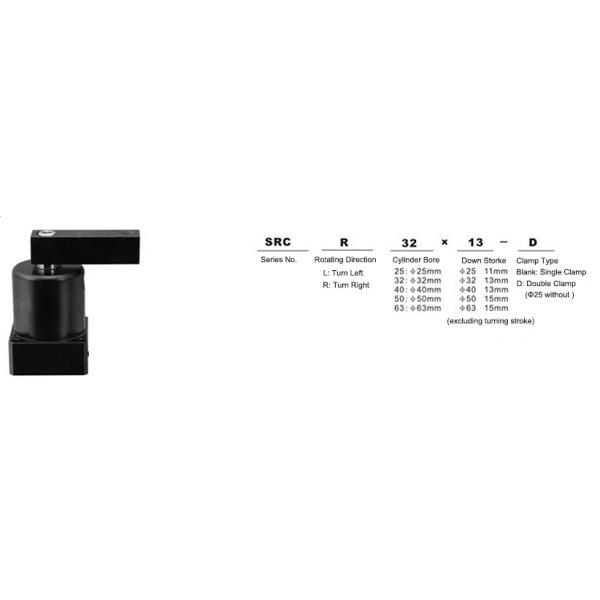

Product Specifications

Rotary Clamping Cylinder Pneumatic Free Oiling Double Acting Feature

Bore Size(mm) 25 32 40 50 63
Action Double Acting
Working Fluid Air
Working Pressure 1.5~9.5kgf/cm2
Working Temperature 0~60℃
Working Speed 30~500mm/sec
Port Size M5 x 0.8
Turning Stroke 11 13 15
Down Stroke 11 13 15
Rotating Angle 90°(accept to customise 0°,45°,60°)
Rotating Direction L: Left(from right to left) R: Right(from left to right)
Cushion Rubber gasket buffer
Lubrication Free oiling
