Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface
Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface
Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface
Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface
Specifications
Brand Name :
Jiayan
Model Number :
RSU
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per week
Delivery Time :
7 days
Packaging Details :
inner poly bag outer carton box
Material :
Aluminum Alloy
Max. operating pressure :
7 kgf/cm2
Min. operating pressure :
3 kgf/cm2
Range of temperature :
-10~+60°C
Acting Type :
doubling acting
Rotating Direction :
R or L
Max Stroke :
32
Description

High Precision Upper Flange Swing Clamp Heat-treated Surface for Wear Resisting Aluminum Alloy Cylinder Good Seal

Feature:

1.Maily used on fixture equipment , all air goes in and goes out through the hole on flange.

2.Body material Aluminum Alloy , surface is heat-treated for Wear Resisting

3.The swing clamp is mounted by four holes on flange

4.For customized clamp arm, please don't exceed 1.5 times of the original length and weight.

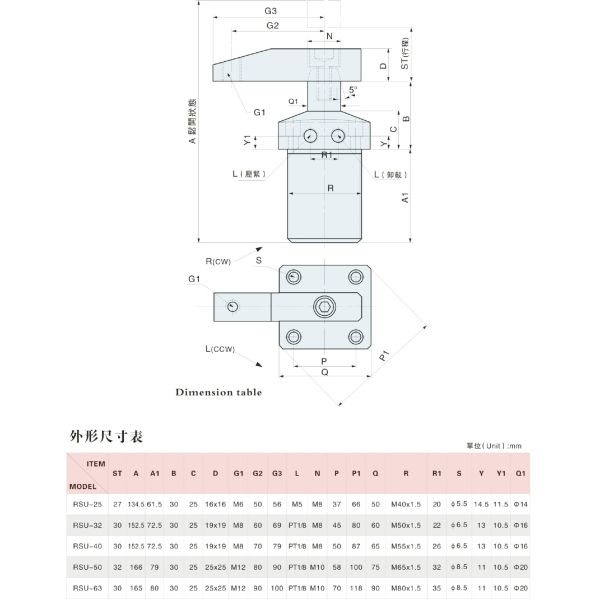

Specifications

Type RSU-25 RSU-32 RSU-40 RSU-50 RSU-63
Bore of cylinder Φ25 Φ32 Φ40 Φ50 Φ63
Dia of Pistion Φ14 Φ16 Φ16 Φ20 Φ20
Swing Stroke (mm) 13 16 15 17 15
Clamping Stroke 14 14 15 15 15
Press Area pull/push 3.4/4.91 6.04/8.04 10.56/12.57 16.49/19.63 28.03/31.17
Theoretical Clamping Force 5kg/cm² 16kgs 30kgs 50kgs 85kgs 140kgs
Fluid Filtered Air

Normal Operation Pressure

 4-7kg/cm²
Rotating Direction Turn Right or Turn Left
Rotating Angle Standard angle90°(±2°),Optinal angle 0°(±2°), 45°(±2°), 60° (±2°)
Acting Type Double Acting
Mounting Type Upper Flange

Order Code

RSU L-40x90

RUS Series RSU
L Rotating Direction Turn Right or Turn Left
40 Bore of cylinder
Φ25,Φ32,Φ40,Φ50,Φ63
90 Rotating Angle Standard angle90°(±2°); Optinal angle0°(±2°), 45°(±2°), 60° (±2°)
