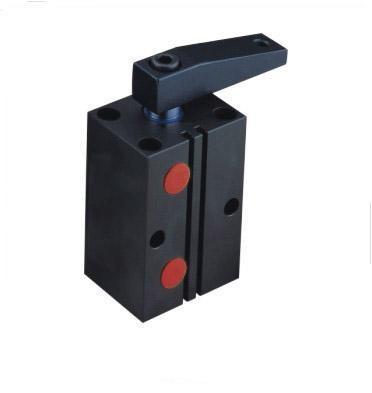

Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance
Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance
Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance
Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance
Specifications
Brand Name :
Jiayan
Model Number :
PSB
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per week
Delivery Time :
7 days
Packaging Details :
inner poly bag outer carton box
Material :
aluminium alloy
Max.operating pressure :
7 kgf/cm2
Min.operating pressure :
4 kgf/cm2
Acting Type :
Double acting
Rotating direction :
Turn right R or turn left L
Bore of Cylinder :
Φ25 , Φ32 , Φ40 , Φ50 , Φ63
Warranty :
1 year ( change for free )
Description

Stable Structure Pneumatic Swing Clamp Aluminium Alloy body with anodizing surface for wear and corrosion resistance

FEATURES:

1.Optimized design , compact structure , long life span and high clamping force make this swing clamp a perfect fixture.

2.Sensor switch can be installed on side or top of this swing clamp.

Max.operating pressure: 7 kgf/cm2

Min.operating pressure: 4 kgf/cm2

Double acting

NOTE
A flow control valve is recommended
For customized clamp arm, please don't exceed 1.5 times of the original length and weight.

Order Code

PSB-L 40x90-S1-P

PSB

Series

PSB

L

Rotating direction

Turn right R or turn left L

40 Bore of cylinder

Φ25 , Φ32 , Φ40 , Φ50 , Φ63

90

Rotating angle

Standard angle 90°(±2)

Order angle 0°, 45°(±2),60(° ±2)

S1

Sensor switch

S1:1 pc

S2:2 pcs

P

Precision position

Add locating pin design to improve the repeat precision of rotation angle

Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance

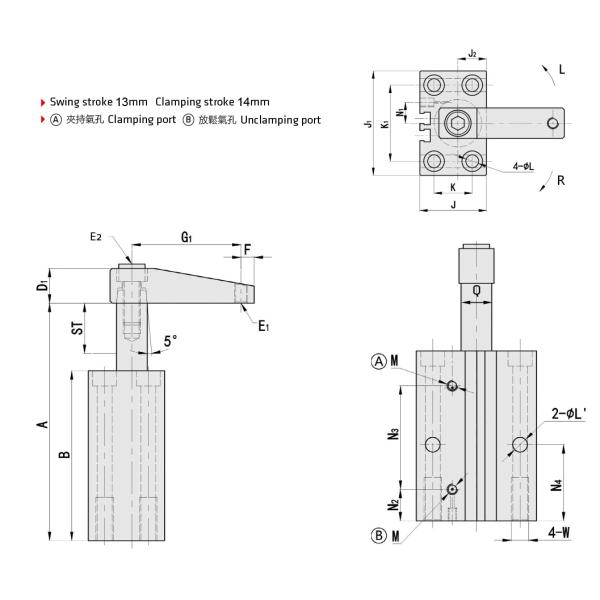

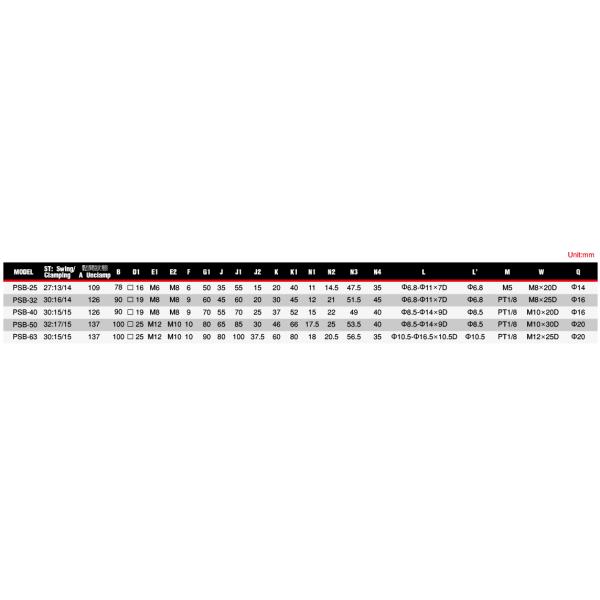

Model Clamping force at 7kgs/cm2(kgf) Swing Stroke (mm) Clamping Stroke (mm) Total Stroke (mm)

Cylinder Capacity

(Clamp) cm3

Cylinder Capacity

(unclamp) cm3

 EFF.PISTON AREA (Clamp) cm2 EFF.PISTON AREA (unclamp) cm2 Temperature Range (°C )

(°C )

PSB-25 24 13 14 27 9.10 13.26 3.37 4.91 -10~+60°C
PSB-32 42 16 14 30 18.06 24.12 6.02 8.04 -10~+60°C
PSB-40 74 15 15 30 31.68 37.68 10.56 12.56 -10~+60°C
PSB-50 116 17 15 32 52.80 62.82 16.5 19.63 -10~+60°C
PSB-63 196 15 15 30 84.06 93.48 28.02 31.16 -10~+60°C
