High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
High Pressure Hydraulic Cylinder Compact Structure Treated Internal Surface
Specifications
Brand Name :
jiayan
Model Number :
CHTB
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 pcs per day
Delivery Time :
7 days
Packaging Details :
inner packing: poly bag ; outside packing: carton box
Material :
structural carbon steel
Max. operating pressure :
140 kgf/cm2
Min. operating pressure :
5 kgf/cm2
Acting Type :
Double acting
Description

Hydraulic Push Pull Cylinder Compact Structure Carbon Steel Material Specially Treated Internal Surface

FEATURES


1.Compact construction for space saving. Ideal for application in a restricted space.

2.Standardized specifications. Direct installation without need of any further accessories for saving cost.
3.The cylinder barrel is made of structural carbon steel. Internal surface is specially treated. Smoothness and long service life.

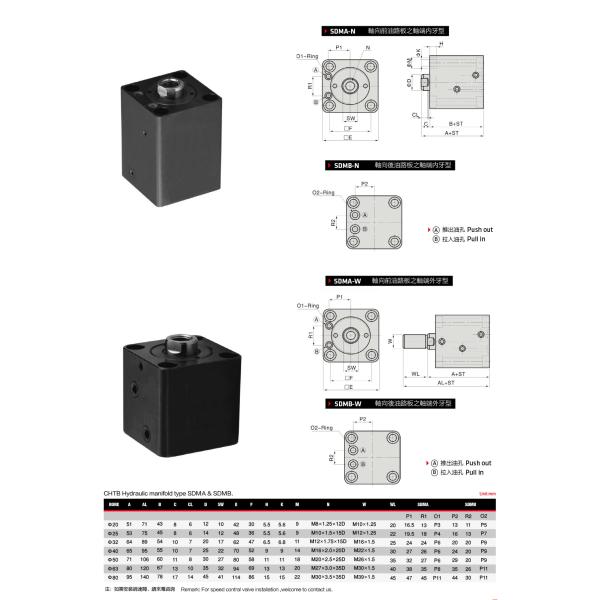

4.No pipe for Axial and side manifold type , which make the cylinder appearance looks better.
5. Max. operating pressure: 140 kgf/cm2
Min. operating pressure: 5 kgf/cm2
6. Acting Type : Double acting

NOTE

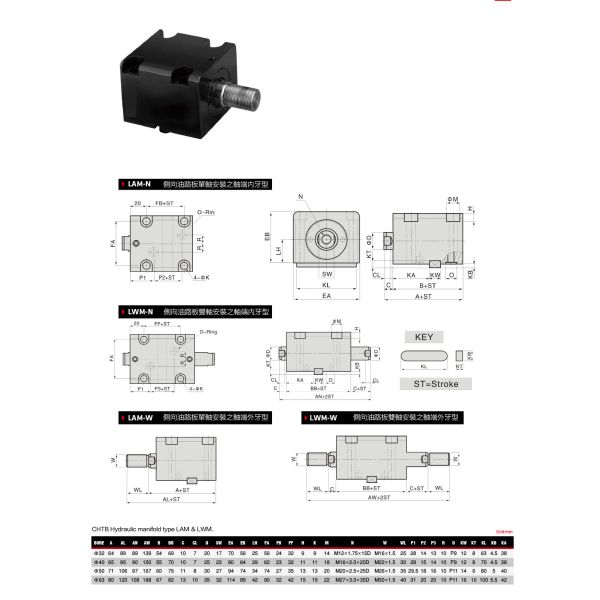

You are welcome to order the special strokes under request. CHTB-LAM and CHTB-LWM type,the stroke is 10mm and without keyway and flat key
