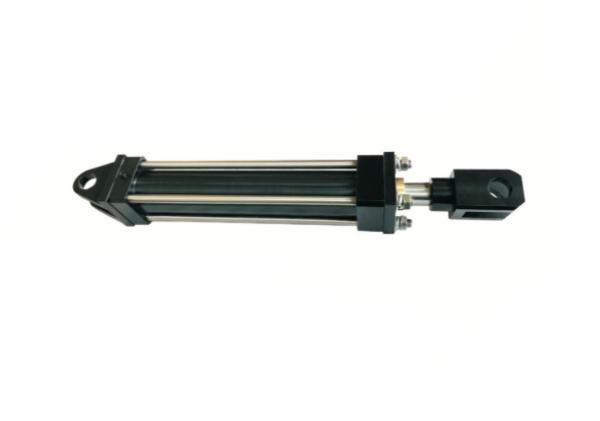

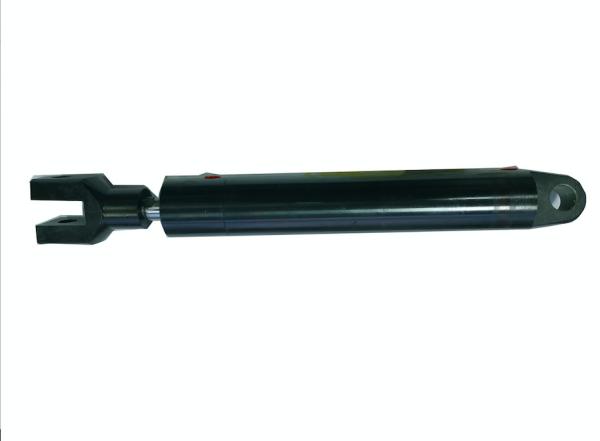

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods
Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods
Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods
Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods
Specifications
Brand Name :
Jiayan
Model Number :
CMO
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per week
Delivery Time :
7 days
Packaging Details :
inner packing: poly bag ; outside packing: carton box
Material :
45# Carbon steel
Power Fluid :
Filtered Oil
The range of pressure(mpa) :
0.3-7.0 MPA(3-70kg/Cm2)
Description

Light hydraulic cylinders 45# carbon steel multiple mounting methods high quality seal

Feature:

1.Standard: GB/T15622-2995
2.Use high-quality seal to avoid leakabe and have long service life
3.The rod cover and rear cover make from No45 Steel, and the piston is chromeplate,
4. compact structure, more durable

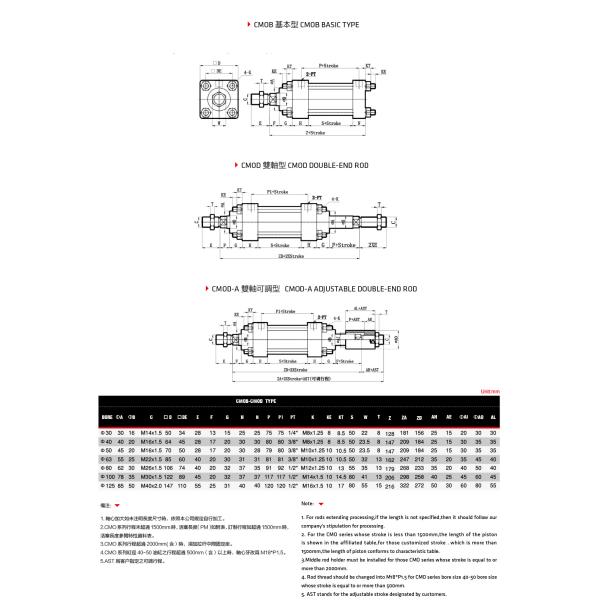

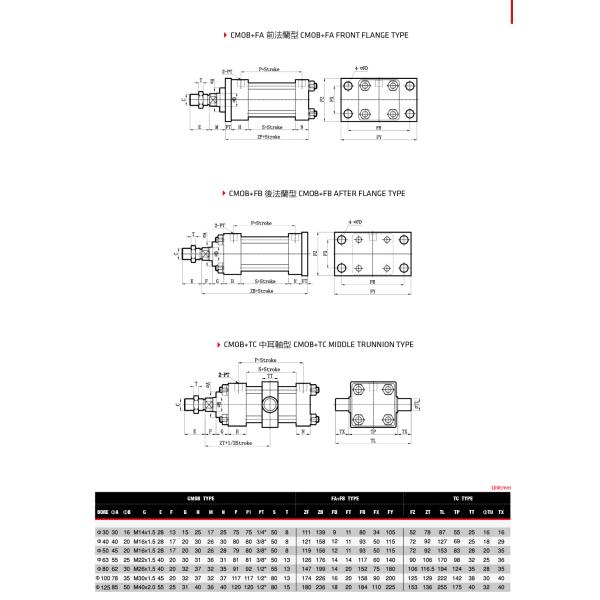

5.Thera are several mounting typs, SD, FA, FB, LB, TC, CA, CB, CBP, and CAB,
6.The desiger could chosse it acording to the demand
7.Any other special cylinder could order, welcome to contac with us

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods
