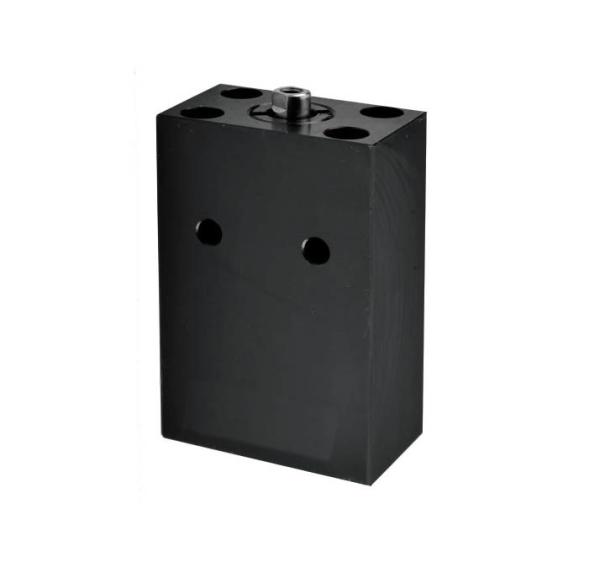

Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance
Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance
Specifications
Brand Name :
Jiayan
Model Number :
HBC
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union , PayPal
Supply Ability :
500 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Max. operating pressure :
300 kgf/cm2
Min. operating pressure :
100 kgf/cm2
Acting Type :
Single acting and Double acting
Mounting Type :
Axial bolt Mounting or Side mounting
Warranty :
1 year (change new one for free)
Description

Block Push Pull Hydraulic Cylinder Double Acting Cylinder High Pressure Withstanding Performance

FEATURES


1.This series of hydraulic cylinder complies with Germany specifications.

2.Employ imported oil seal for outstanding pressure withstanding.

3.Standardized specification and can be used on many different machines and machining

center.

4. Mounting Type: axial and side mounting.

5.Single and double acting are available.
6.Max. operating pressure: 300 kgf/cm2

Min. operating pressure: 100 kgf/cm2

If the operation pressure is over 300 kgf/cm2 , the cylinders are needed to customized.

Ordering Code

HBC- 32 S 20

1 2 3 4

1

Series

HBC

2 Bore of Cylinder

Φ16,Φ25,Φ32,Φ40

3

Acting type

S Single-acting

D Double-acting

4

Standard stroke

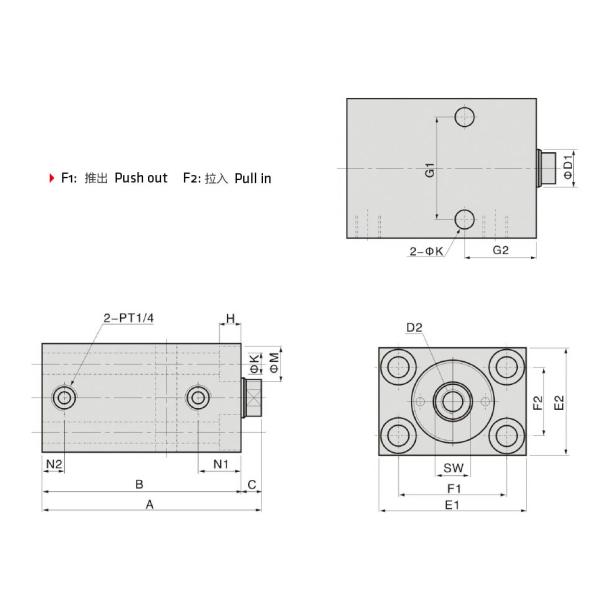

Refer to the dimension table

Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance

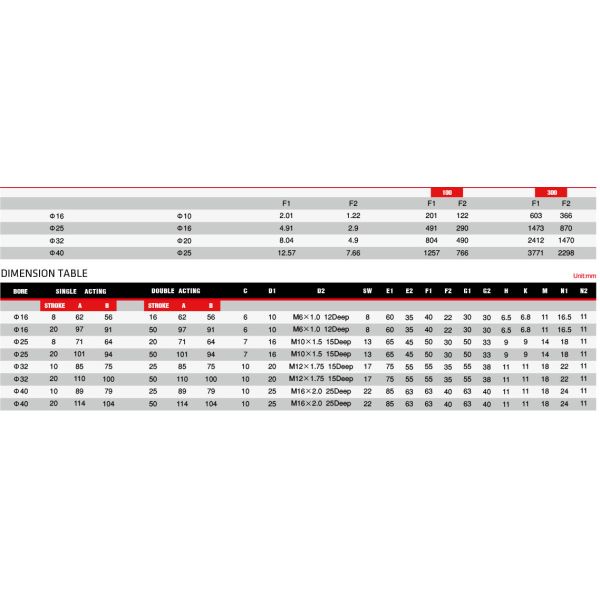

Cylinder Clamping Force :

OPERATION PRESSURE(kgf/cm2)

Bores of Cylinder Diameter of Piston Pressure Area (cm2) and Clamping force

Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance
