High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
Specifications
Brand Name :
Jiayan
Model Number :
CGO
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union ,PayPal
Supply Ability :
300 sets per Week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel or Stainless Steel
Max Work Pressure :
21kg/cm2)
Min. Work Pressure :
(3kg/cm2
speed (mm/sec) :
8~300(mm/sec)
Range of temperature(°C ) :
-10 ~ + 60 (°C )
Warranty :
1 year
Description

21 mpa Tie-rod Hydraulic Cylinder High Pressure Heavy Duty Oil Cylinder for Large Machinery

Feature:

1. Adopt high performance oil seal to prevent leakage , long life service.

2. Cylinder cover Carbon steel , chrome-plated piston rod , strong and durable ctructure.

3. Multiple mounting types , which can be customized by clients' requirements.

4. Cylinder Body: Carbon steel or stainless steel

5. High Clamping force

High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

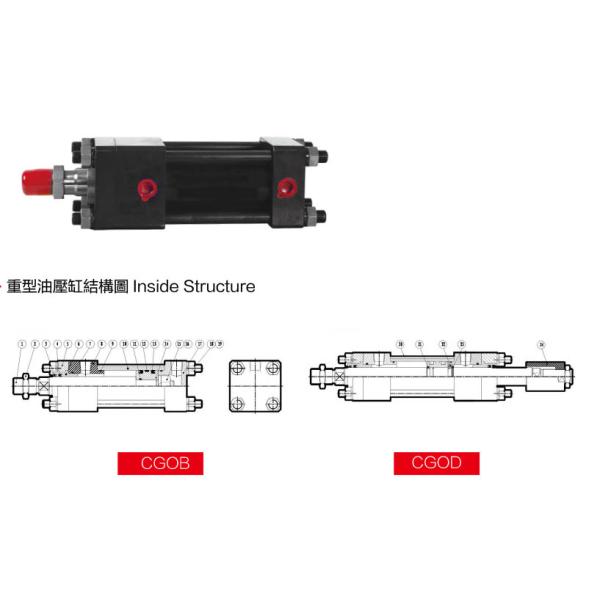

MO Part name QTY NO Part name QTY NO Part name QTY
1 Piston rod 1 10 Cylinder tube 1 19 Adjustable nut

1
2 Locking nut 1 11 Cushion collar 1 20,21 O Gasket 2
3 Dustproof seal 1 12 O Gasket 1 22 Hexagon nut 1
4 Oil seal for shaft 1 13 Wearing ring 1 23

Adjustable lead screw1

 1
5 Gland 1 14 Piston seal 2 24 Pulled rod 4
6 Guide sleeve 1 15 Piston 1 25 Half snap ring 2
7 O Gasket 1 16 End cover 1 26 Baffle ring

1
8 Rod cover 1 17 Nut 8 27 Rod baffle ring 1
9 O Gasket 2 18 Spring washer 8 28 Adjustable nut 1

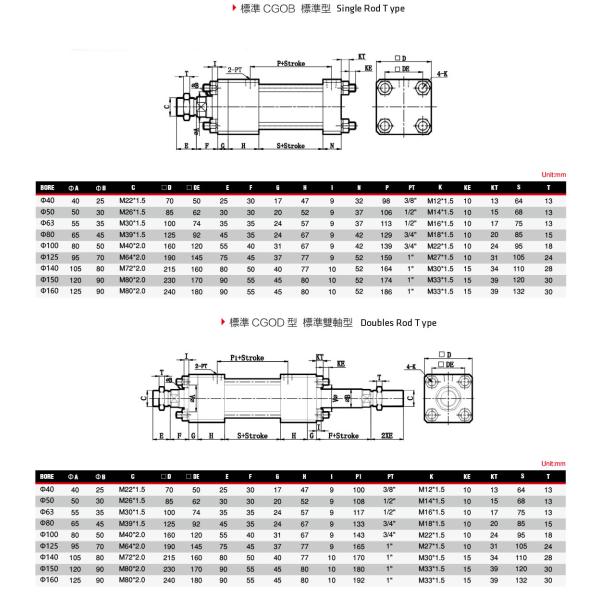

Specification:

Bores of Cylinder

Φ40

Φ50

Φ63

Φ80

Φ100

 Φ125
Power Fluid Filtered Oil
Material of cylinder bareel Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5
range of pressure(mpa) 0.3-7.0 MPA(3-70kg/Cm2)
speed (mm/sec) 8~300(mm/sec)
temperature(°C ) -10 ~ + 60 (°C )
Cushion stroke)mm 25 25 25 25 30 30
Length of standard piston(PM) 30 32 36 40 59 59
Piston length when the stroke is between 1501-2500 mm 60 65 65 80 120 120

Ordering Code :

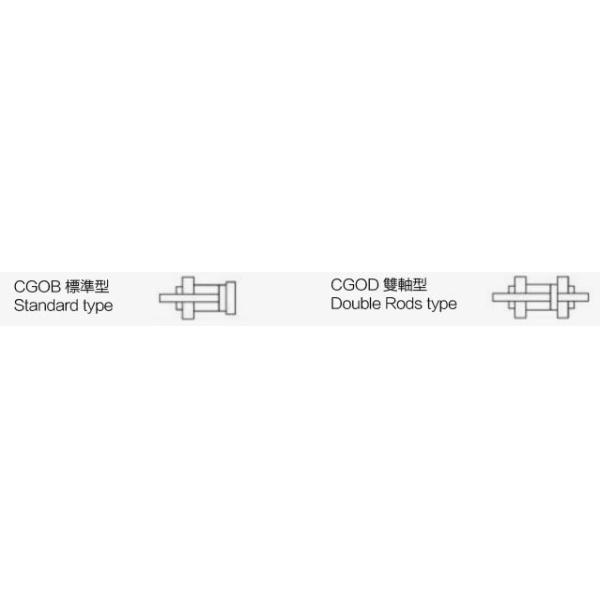

CGOB D - 63 / 35 * 100 LB + Y

1 . 2 . 3 . 4 5 6 . 7

1 Series High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
2 Flxed Cushioning Type Blank: No cushion D: cushions on both ends
F: cushion on head cover B: cushion on end cover
3 Bore of Cylinder

Φ40, Φ50, Φ63, Φ80, Φ100, Φ125, Φ140, Φ150, Φ160

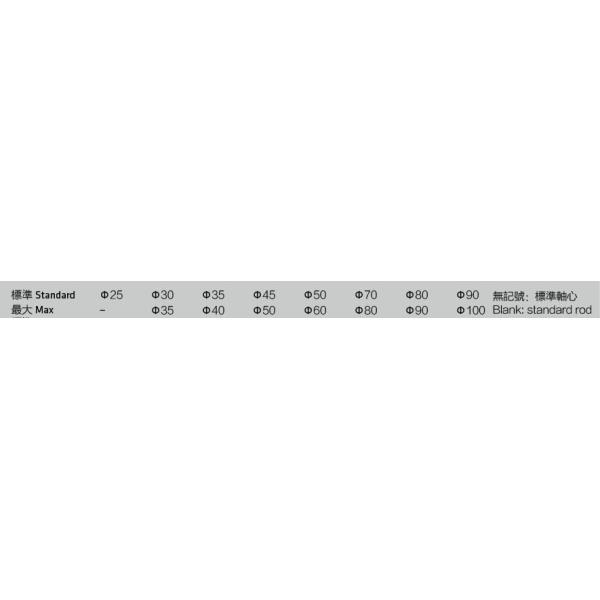

4 Rod

High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
5 Stroke

Steel barrel(Φ30-Φ125) Max:4m

Iron barrel(Φ40-Φ100) Max:2.8m

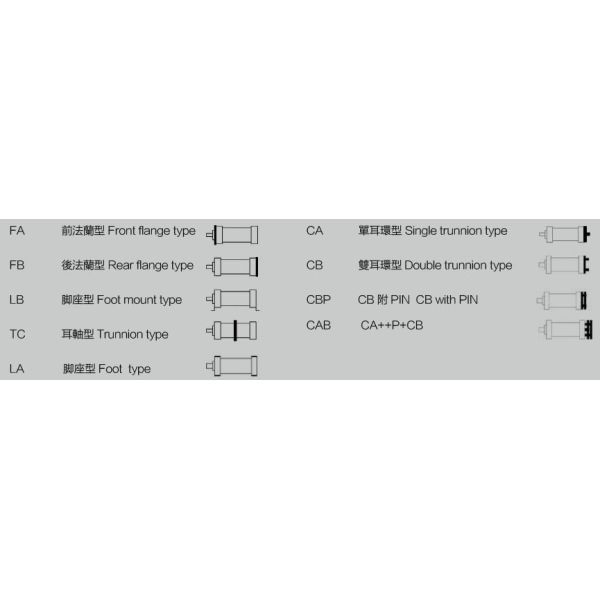

6 Cylinder Body Accessories High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

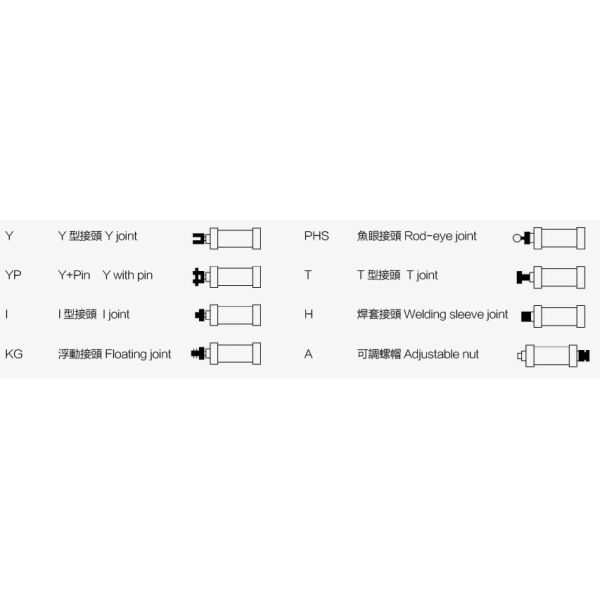

7 Rod Accessories High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

High Pressure Push Pull Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

Remark : The sizes of the heavy duty hydraulic cylinder can be customized as customers' requirement.

Pls contact us your requested cylinders
