Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder
Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder
Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder
Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder
Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder
Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder
Specifications
Brand Name :
Jiayan
Model Number :
LAM/LWM
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western PayPal
Supply Ability :
400 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Mounting Type :
Lateral Manifold Mounting
Max.Operation Pressure :
140kg/cm2
Flow Speed :
8-100mm/sec
Work Temperature :
-10~+60°C
Warranty :
1 year (change new one for free )
Description

Lateral Manifold Double Or Single End Rod Type Push Pull Hydraulic Cylinder Carbon Steel Oil Pressure Cylinder

Ordering Code

CHTB - LAM 32×20 N

1 2 3 4 5

1 Series CHTB
2 Mounting type LAM:Lateral manifold single end rod type
LWM:Lateral manifold double end rod type
3 Bore of Cylinder Φ32 , Φ40 , Φ50 , Φ63
4 Standard stroke Please refer to the <stroke specification>
5 Rod end type

N: Female thread N W:Male thread W

Hydraulic Cylinder Stroke Specifications

Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

Pressure

Bores of Cylinde Dia.of Piston Area (cm2) OPERATION PRESSURE(kgf/cm2) Temperature

Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

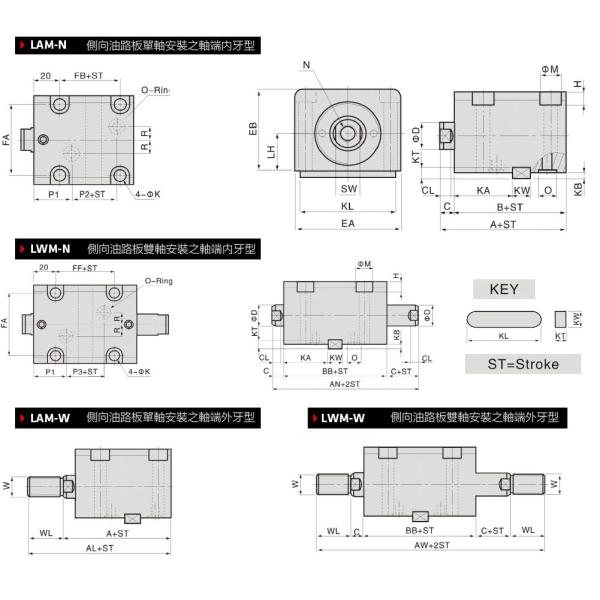

CHTB Hydraulic Cylinder Lateral manifold single or double end rod type LAM/LWM
