Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder
Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder
Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder
Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder
Specifications
Brand Name :
Jiayan
Model Number :
CHK
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
350 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Max. operating pressure :
140 kgf/cm2
Min. operating pressure :
10 kgf/cm2
Bore of Cylinder :
40-250mm
Range of temperature(°C ) :
-10 ~ +70 (°C )
Mix. Cushion stroke(mm) :
50-100 mm
Warranty :
1 year
Description

Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder

Features:

1. CHK column-type hydraulic cylinder is a medium and high pressure cylinder which has wide application. It is especially applicable in the field of die-casting mould manufacture.
2. Guiding system is added to the CHK column-type hydraulic cylinder to control the stroke adequately during operating.

3. Buffer device is added to CHK column-type hydraulic cylinder to prolong service life of the cylinder and slide block.

4. Max. operating pressure: 140 kgf/cm2

Min. operating pressure: 10 kgf/cm2

NOTE

Orders with customized request are available, welcome to contact us.

Ordering Code:

CHK - FA - 80 X 100 A + S2

1 2 3 4 5 6

1

Series

CHK

2

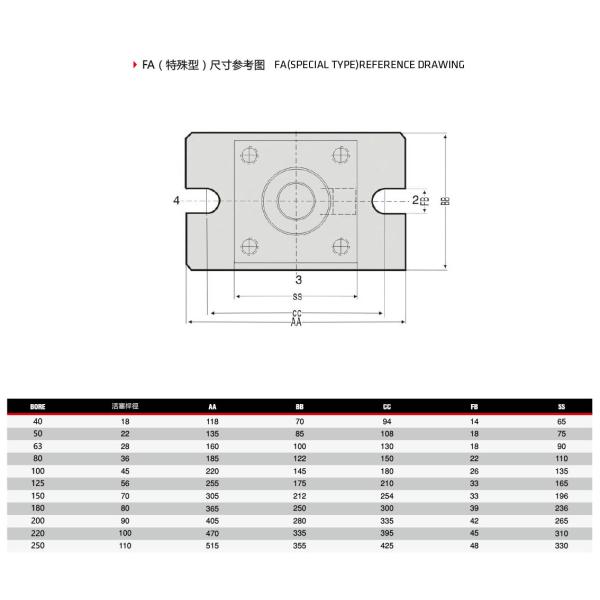

Fixing type

FA : Front Flange
3 Bores of Cylinder

Φ40, Φ50, Φ63 , Φ80 , Φ100 , Φ125 , Φ150, Φ180, Φ200, Φ220, Φ250.

4

Stroke

as customer's request
5

Piston connection type

as customer's request
6

travel switch

S1 of 1 pc, S2 of 2 pcs

Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder

Bore of Cylinder (mm) Φ40 Φ50 Φ63 Φ80 Φ100 Φ125 Φ150 Φ180 Φ200 Φ220 Φ250

Material of cylinder

Carbon steel STKM-13C

Mix. Cushion stroke(mm)

50 50 50 50 80 80 80 100 100 100 100

Range of temperature(°C )

-10 ~ +70 (°C )

Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder

Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder
