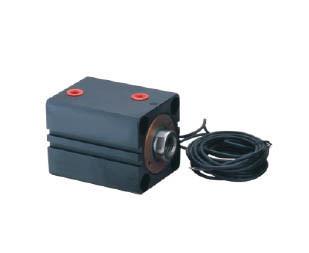

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders
HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders
HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders
HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders
Specifications
Brand Name :
Jiayan
Model Number :
HTM 70
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union ,PayPal
Supply Ability :
350 pcs per week
Delivery Time :
7 days
Packaging Details :
inner poly bag and outer carton box
Material :
Aluminium Alloy
Max.Operation :
70kg/cm2
Max. Bore of Cylinder :
50mm
Mounting Type :
axial type and manifold type
Sensor Switch :
available
Warranty :
1 year (change new one for free)
Description

HTM 70 Inductive Aluminium Alloy Hydraulic Cylinder Thin Type Cylinder Axial Mounting and Manifold Type

Ordering Code

HTM70- DS- 32 x 20 N -S1

1 2 3 4 5 6

1 Series HTM 70
2 Mounting Type

SD: standard

SDMB:manifold type
3 Bore of Cyliner 32,40,50,63,80
4 standard stroke

10, 20, 30,40, 50
5 Rod end Type

N: Female thread

w:Male thread
6 sensor switch

S1: 1 pc , S2: 2 PCS

Voltage: DC 4-24V ; AC 4-120V

Currency: 5-40mA

Hydraulic Cylinder Stroke Specifications

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

Pressure

Bores of Cylinde Dia.of Piston Area (cm2) OPERATION PRESSURE(kgf/cm2) Temperature

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

Aluminium Alloy Hydraulic Cylinder Dimension Table

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders
