Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly
Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly
Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly
Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly
Specifications
Brand Name :
Jiayan
Model Number :
SD and SW
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
500 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Mounting Type :
Single or double End Rod type
Max. Stroke :
80mm
Max.Operation Force :
140kg/cm2
Acting Type :
Double Acting
Max. Clamping Force :
7038kgs
Warranty :
1 year (change new for free)
Description

Axial Mount Single End Rod and Double End Rod Type Push Pull Hydraulic Cylinder Carbon Steel Mould Manufacture Cylinder

Ordering Code

CHTB - SD 32×20 N

1 2 3 4 5

1

Series

CHTB

2

Mounting type

SD:Axial single end rod type
SW:Axial double end rod type
3 Bore of Cylinder

Φ20 , Φ25 , Φ32 , Φ40 , Φ50 , Φ63 , Φ80

4

Standard stroke

Please refer to the <stroke specification>

5

Rod end type

N: Female thread N W:Male thread W

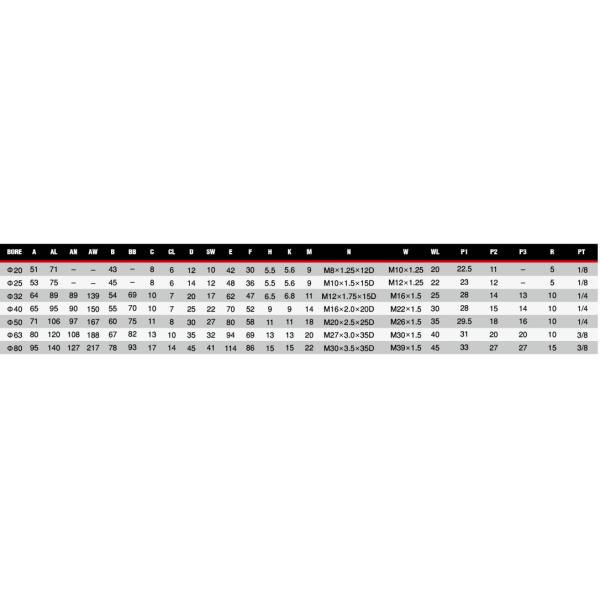

Hydraulic Cylinder Stroke Specifications

Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly

Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly

Pressure

Bores of Cylinde Dia.of Piston Area (cm2) OPERATION PRESSURE(kgf/cm2) Temperature

Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - FriendlyDouble Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly

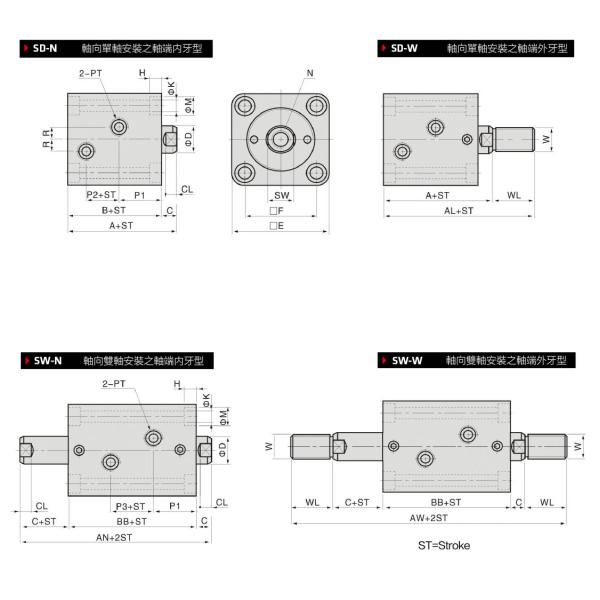

CHTB Hydraulic Cylinder axial mounting type SD&SW

Double Acting Double Ended Hydraulic Cylinder Axial Mount Eco - Friendly
