RI0987 Type High Pressure Glass Enamel Fixed Resistor
RI0987 Type High Pressure Glass Enamel Fixed Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RI0987
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RI0987 type high pressure glass enamel fixed resistor

1. Purpose and characteristics:

As a basic element for absorbing load, dividing voltage or dividing voltage in high voltage and high power electronics and power lines. It has the characteristics of using extreme working voltage, high medium voltage withstand, large single pulse power and small size.

2. Packaging form:

no insulation coating

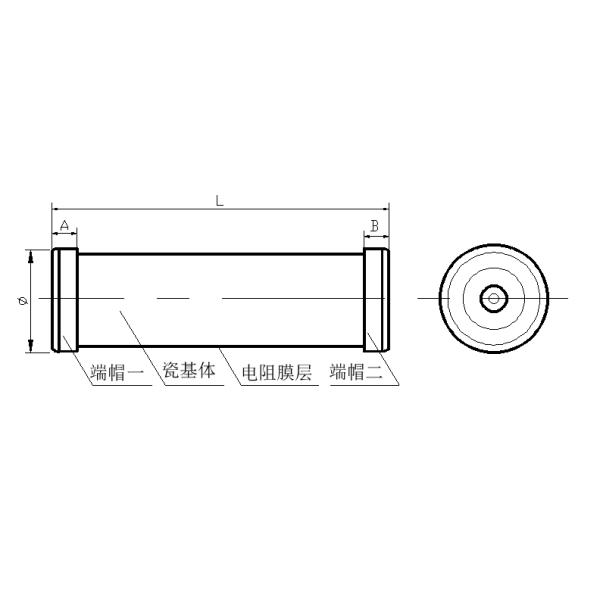

3. External size:

RI0987 Type High Pressure Glass Enamel Fixed Resistor

Rated single pulse power at 40℃ nominal candle-power Shape size (mm)

maximum weight

(g)
Lmax Фmax A B
450kW 30kΩ~50kΩ 55 30 4±1 4±1 70

4. Main technical indicators:

40℃ rated

Single pulse power

(kw)

 Nominal resistance (kΩ)

nominal candle-power

allowable deviation

(%)

impulse

working voltage

(kv)

resistance

temperature characteristic

(10-6/℃)

Medium withstand voltage

(kv)
450 30~50 ± 5 130 ±500 150

Note: The resistance is 40℃, and the working medium is transformer oil. The voltage applied to both ends of the resistance is the width of the bottom wave

The pulse is 3μs~4μs, the front edge is ≤0.8μs, the rear edge is ≤1μs, the top drop is ≤8%, and the interval is 5 minutes

Charge voltage
