RI40 Type Glass Enamel Resistor
RI40 Type Glass Enamel Resistor
RI40 Type Glass Enamel Resistor
RI40 Type Glass Enamel Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RI40
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

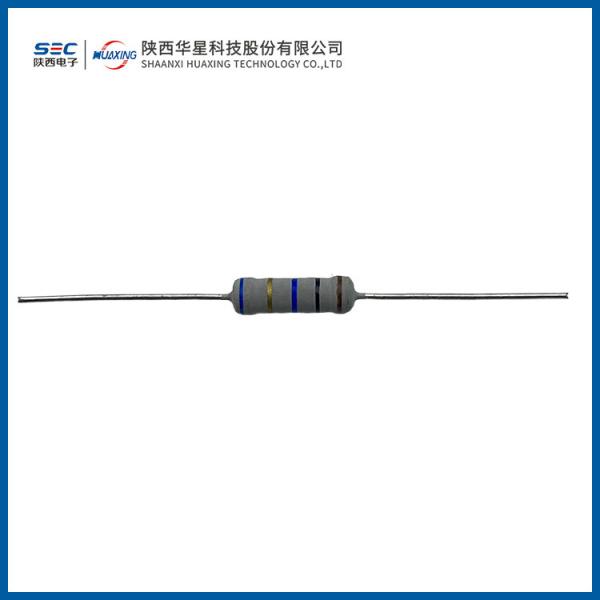

RI40 type glass enamel resistor

1. Purpose:

good temperature characteristics, high pressure resistance, good pulse resistance, used in DC, AC, pulse circuits.

2. Packaging form:

coated with gray insulating paint.

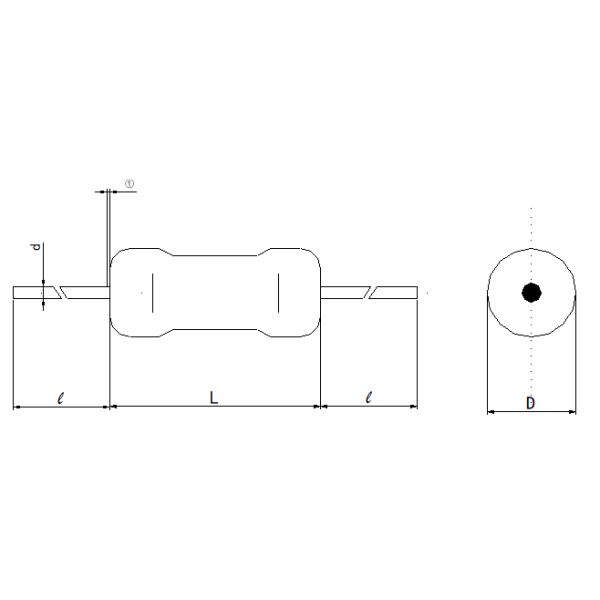

3. External size

RI40 Type Glass Enamel Resistor

power (W)

ΦDmax

(mm)

 Lmax(mm) Φd(mm) l(mm)
1/4 2.7 7.0 0.5±0.1 28±3
1/2 4.0 10.0 0.56±0.1 28±3
1 5.5 13.0 0.7±0.1 28±3
2 6.5 16.0 0.7±0.1 28±3
3 7.5 18.5 0.7±0.1 30±5
5 9.5 26.0 0.7±0.1 32±3

4. Main technical indicators:

Rated power (W) at 70℃

temperature coefficient

ppm/℃

 Resistance range (Ω) Resistance tolerance deviation Component limit voltage (V) Insulation voltage (V)
1/4 ±250 1K-10M

±1%

±5%

 350 500
1/2 1K-33M 500 750
1 1K-56M 700 800
2 1K-56M 700 1000
3 1K-100M 1000 1000
5 1K-100M 1000 1000
