RI90 High Voltage Glass Enamel Film Fixed Resistor
RI90 High Voltage Glass Enamel Film Fixed Resistor
RI90 High Voltage Glass Enamel Film Fixed Resistor
RI90 High Voltage Glass Enamel Film Fixed Resistor
RI90 High Voltage Glass Enamel Film Fixed Resistor
RI90 High Voltage Glass Enamel Film Fixed Resistor
RI90 High Voltage Glass Enamel Film Fixed Resistor
RI90 High Voltage Glass Enamel Film Fixed Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RI90
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RI90 high voltage glass enamel film fixed resistor

1. Purpose and characteristics:

small size, temperature resistance, high pressure, overload capacity, can be used for ultra-high resistance, used in high voltage electronic circuits and so on

2. Packaging form:

green insulation coating.

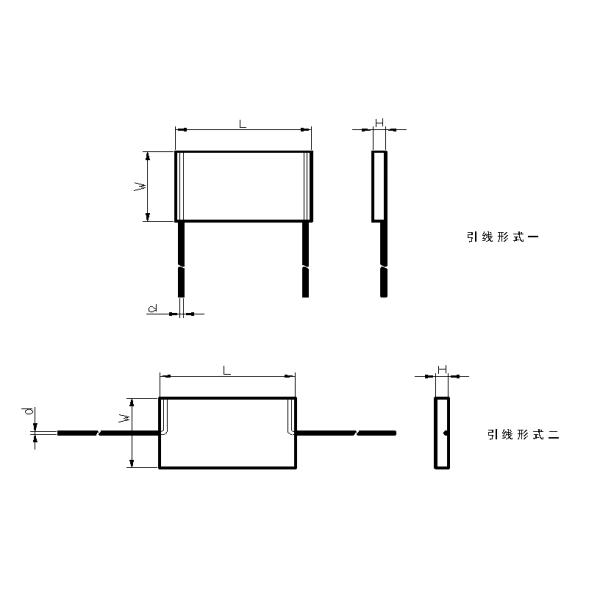

3. External size:

RI90 High Voltage Glass Enamel Film Fixed Resistor

Rated single pulse power W at 70℃ nominal candle-power Ω Shape size (mm)
L W H d
1 10~50M 22±2 12±2 2.5±0.5 0.8±0.05
2 10~100M 32±2 12±2 2.5±0.5
2.5 10~1G 32±2 10±2 2.5±0.5 0.8±0.05
5 10~1G 52±2 22±2 4±0.5 1±0.05
10 10~1G 82±2 22±2 4±0.5 1±0.05

4. Main technical indicators:

Rated (W) at 70℃ Resistance range (Ω) The allowable deviation of resistance is (%) Temperature coefficient range (ppm/℃) Component limit voltage (DC or AC effective) (V)

withstand voltage

(V)
1 10-50M

±1

±5

±10

±100

±350

 1000 500
2 10-100M 3000 500
5 10-1G 10000 500
10 10000 500
2.5 5M ±1 ±350 5000 500
