RI80 High Voltage Glass Enamel Resistor
RI80 High Voltage Glass Enamel Resistor
RI80 High Voltage Glass Enamel Resistor
RI80 High Voltage Glass Enamel Resistor
RI80 High Voltage Glass Enamel Resistor
RI80 High Voltage Glass Enamel Resistor
RI80 High Voltage Glass Enamel Resistor
RI80 High Voltage Glass Enamel Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RI80
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

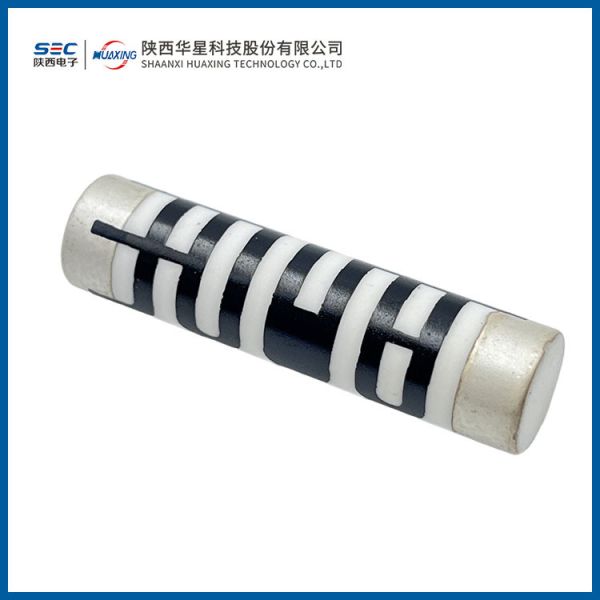

RI80 high voltage glass enamel resistor

1. Purpose:

used for signal measurement and sampling in high voltage lines.

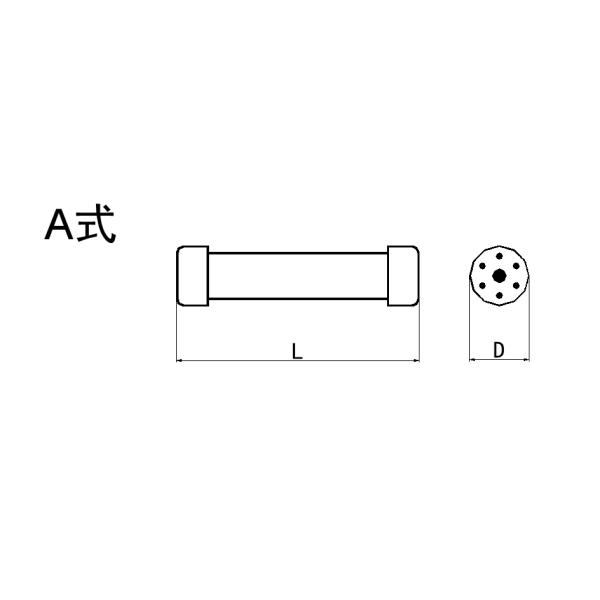

2. External size:

RI80 High Voltage Glass Enamel Resistor

power

(W)

temperature

coefficient

Resistance range

(Ω)

Resistance tolerance

limit voltage

AC, DC

Dmax

(mm)

Lmax

(mm)
5

±350

ppm/℃

 1M—200M

±5%

±10%

 15KV Ø 12 55
10 1M—500M 30KV 85
20 1M—750M 40KV 115
25 1M—1G 50KV 140
10K—500M 30KV Ø 18 92
50

100K

—

1000M

 50KV Ø 23 145
100 60KV Ø 28 185
150 90KV 225
200 90KV Ø 38 225
300 120KV 325
